PRPLZ180

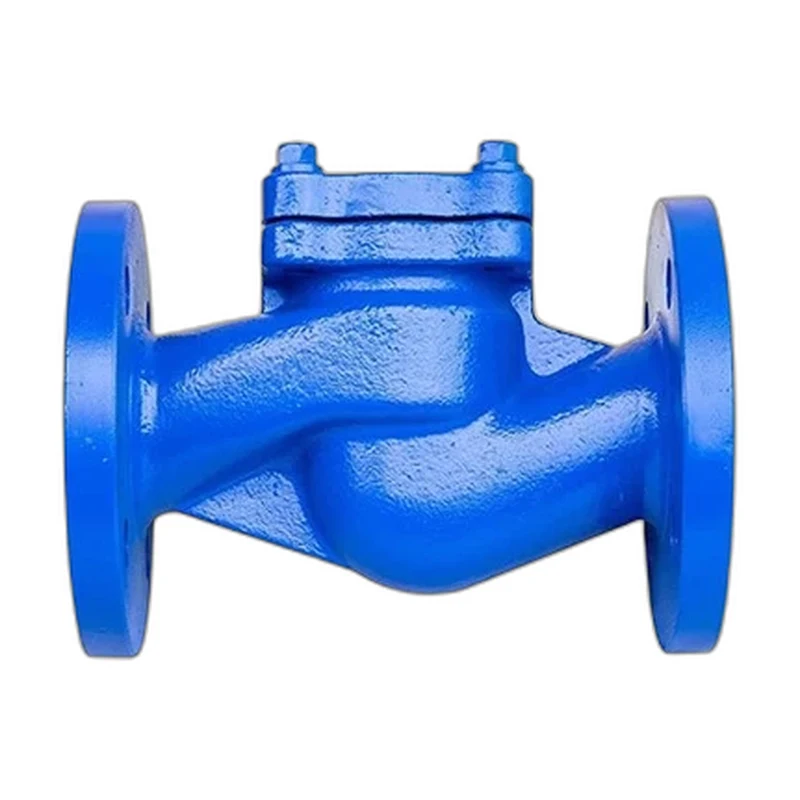

DIN Lift Check Valve
A DIN-standard lift check valve that uses a vertically guided disc to block reverse flow automatically.
Size1/2" to 24"PressureANSI Class 150 to 1500PortFull portBodyLift check
CategoriesCheck Valves
Designed to DIN dimensional standards, this lift check valve guides a disc vertically against its seat to deliver tight, automatic non-return performance. Forward flow raises the disc off the seat; when flow stops or reverses, the disc settles straight back down to close the line. The guided action gives quick, positive shut-off and makes it well suited to horizontal pump discharge and metric-piped systems where DIN-compatible face-to-face and connections are required.
Specifications
Size Range
1/2" to 24"
Pressure Rating
ANSI Class 150 to 1500
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Flanged (DIN), Threaded, Socket Weld
Body Material
Cast steel (WCB, LCC, LCB, CF8M, 2205 and special grades)
Ball / Disc / Wedge Material
Guided lift disc
Seat Material
Metal / API trims (Trim 1, 5, 8, 12, 16)
Port Type
Full port
Body Style
Lift check
Operation
Automatic (non-return)
Applications
Pump discharge lines and metric DIN-piped water, oil and process systems
Design Standard
API 594, BS 1868, DIN 3202, GOST 3327
Testing Standard
API 598
Face to Face Standard
DIN 3202 / ASME B16.10
Key Features
- DIN-standard dimensions
- Guided lift disc for positive shut-off
- Automatic non-return action
- Metal-seated for tight sealing
- Multiple steel and stainless grades
Options
- NACE compliant trim
- Special materials on request
- Soft or metal seating
Standards & Certifications
- API 598
- NACE compliant (optional)
- API 594
