Purple Valves
PRPLZ019

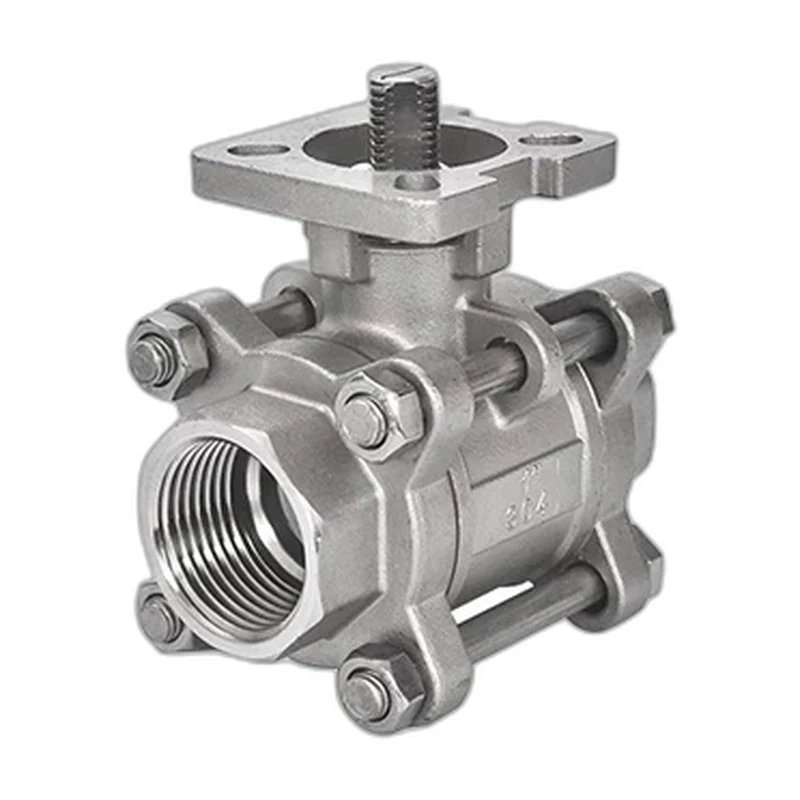

Direct Mount Ball Valve
A three-piece direct-mount ball valve with an integral actuator pad for compact automation.
Size1/4" to 4"Pressure1000 PSI (WOG)PortFull PortBodyThree Piece
CategoriesBall Valves
The direct-mount design of this three-piece ball valve lets an actuator be fitted straight onto the body, reducing height and eliminating mounting hardware. Rated to 1000 PSI WOG with a full-port bore across the 1/4" to 4" range, it accepts NPT, BSP, BSPT and ISO 7-1 threads. PTFE and RPTFE seats and stainless trim make it a clean, compact solution for automated process isolation.
Specifications
Size Range
1/4" to 4"
Pressure Rating
1000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
NPT , BSP,BSPT,ISO7-1
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
SS316
Seat Material
PTFE / RPTFE
Stem Material
SS316
Port Type
Full Port
Body Style
Three Piece
Operation
Lever, Gearbox, Actuator-Ready
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34 , MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Reliable bubble-tight shut-off
- Three Piece body construction
- Full Port bore
- Blow-out proof stem with anti-static device
- Fire-safe and corrosion-resistant materials
Options
- Range of seat materials (RPTFE, PTFE, PEEK, Delrin)
- Lever, gearbox, pneumatic or electric actuation
- Locking handle and stem extensions
- Oxygen-cleaned and special-service preparation
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598 Tested
