PRPLZ181
Double Disc Wafer Lug Body Check Valve
A lug-body dual-plate wafer check valve with twin spring-loaded plates for fast, automatic backflow prevention.
Size2" to 48"PressureANSI Class 150 to 1500PortFull portBodyDual-plate wafer (lug body)

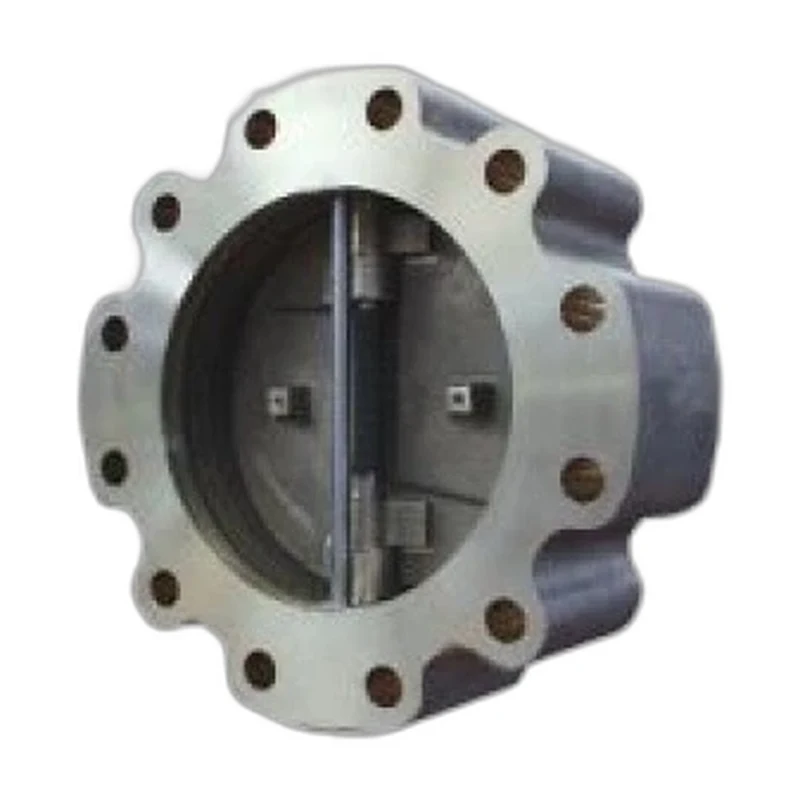

This dual-plate check valve carries a lug body that bolts directly between pipe flanges and houses two spring-loaded half-discs hinged on a central pin. The plates open together under forward flow and snap shut on a torsion spring the instant flow reverses, cutting off backflow before slamming can occur. Its compact wafer profile saves weight and space, while the lugged body allows end-of-line and dead-end isolation, making it a practical non-return solution for pump and compressor systems.
Specifications
Size Range
2" to 48"
Pressure Rating
ANSI Class 150 to 1500
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Lug body, wafer-style between ASME flanges
Body Material
Cast steel / stainless (WCB, CF8M, 2205 and special grades)
Ball / Disc / Wedge Material
Twin spring-loaded plates (dual disc)
Seat Material
Metal or soft seat
Port Type
Full port
Body Style
Dual-plate wafer (lug body)
Operation
Automatic (non-return)
Applications
Pump and compressor discharge, water, oil, gas and HVAC pipelines
Design Standard
API 594, API 6D
Testing Standard
API 598
Face to Face Standard
ASME B16.10
Key Features
- Twin spring-loaded plates for non-slam closure
- Lugged body for dead-end service
- Compact, lightweight wafer profile
- Automatic, fast-acting non-return action
- Low pressure drop
Options
- NACE compliant trim
- Special materials on request
- Soft or metal seating
Standards & Certifications
- API 598
- NACE compliant (optional)
- API 594
Dimensions
| Design | Face to Face | End Flange | Test & Check |
| MSS SP-67 API609 EN593 |
API609 ISO5752 series 20 BS5155 |
DIN PN10/16/25 ANSI B16.1 BS4504 ISO PN10/16 JIS B2212/2213 BS 10 Table D BS 10 Table E |
API598 |
| size | DN40~DN800 | DN40~DN600 | |
| PN | 1.0MPa | 1.6MPa | |
| Test pressure | shell | 1.1MPa | 1.76MPa |
| sealing | 1.5MPa | 2.4MPa | |
| Applicable temperature | 1-EPDM | -30°C~+110°C | |
| 2-neoprene | -7°C~+93°C | ||
| 3-NBR | -12°C~+82°C | ||
| 4-viton | +10°C~+150°C | ||
| Applicable medium | Fresh water, sea water, air, vapor, food, medicine, oil, acid, alkali, salt, etc. | ||
| Body | Disc | Stem | Bushing | Seat | |
| Working temp(°C) | |||||
| CI | Nickel coated DI | 416SS | Lubricating bronze | rubber | -20°C-+85°C |
| DI | WCB | 431SS | PTFE | Hypalon | -18°C-+135°C |
| WCB | ALB-bronze | 316SS | SS+PTFE | EPDM | -30°C-+110°C |
| ALB-bronze | SS | Neoprene | -7°C-+93°C | ||
| SS | NBR | -12°C-+82°C | |||
| Wearresistant Rubber | -10°C-+50°C | ||||
| Viton | -23°C-+150°C | ||||
| Heat-resistant Rubber | -20°C-+150°C | ||||
| PTFE | +10°C-+150°C | ||||
| IN | DN | D | L |
| 2 | 50 | 103 | 60 |
| 2 1/2 | 65 | 122 | 67 |
| 3 | 80 | 135 | 73 |
| 4 | 100 | 173 | 73 |
| 5 | 125 | 195 | 86 |
| 6 | 150 | 221 | 98 |
| 8 | 200 | 305 | 127 |
| 10 | 250 | 359 | 146 |
| 12 | 300 | 420 | 181 |
| 14 | 350 | 483 | 222 |
| 16 | 400 | 537 | 232 |
