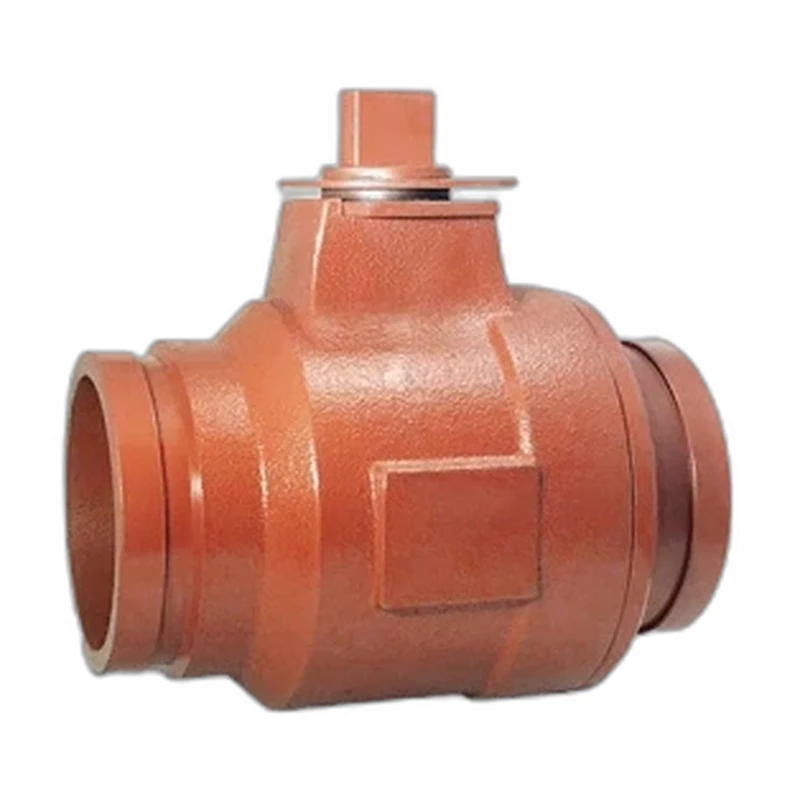

Ductile Iron Grooved End Floating Ball Valve
Ductile Iron Grooved End Floating Ball Valve engineered for reliable shut-off and isolation in general service, air, water, oil & gas applications.
The Ductile Iron Grooved End Floating Ball Valve from ZQV is a two piece ball valve built for dependable isolation across a size range of 2" to 6". Constructed with Ductile Iron (A395) body materials and a 316 Stainless Steel (A182 F316) ball and 316 Stainless Steel (A182 F316) stem, it delivers durable performance with a RPTFE seat for tight sealing. Rated to 1000 PSI (WOG) and suitable for service from -46°C to 232°C (-50°F to 450°F), the valve features grooved end (awwa c606) connections and a reduced port bore. Manufactured to ASME B16.34, MSS SP-110 with testing per MSS SP-72, API 598, it is well suited to general service, air, water, and oil and gas duties.
Specifications
Key Features
- Reduced Port bore for optimised flow
- RPTFE seat for reliable bi-directional sealing
- Ductile Iron (A395) body construction
- Blowout-proof stem design
- Designed and tested to recognised industry standards
Options
- Lever or gearbox operation
- Pneumatic or electric actuation available
- Alternative seat materials on request
Standards & Certifications
- ASME B16.34 / MSS SP-110
- Tested per MSS SP-72, API 598
