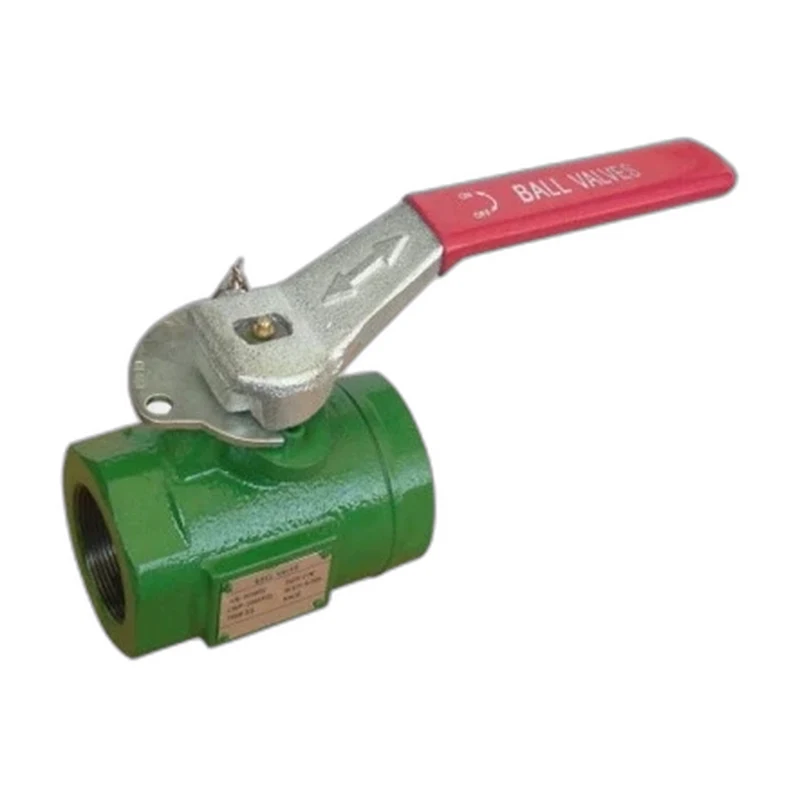

Ductile Iron Oilfield Ball Valve 2000PSI
Two-piece ductile iron di floating ball valve rated 1000 PSI (WOG) - 2000 PSI(WOG) for oilfield isolation service in 1" to 4" threaded sizes.
The Ductile Iron Oilfield Ball Valve 2000Psi is a rugged two-piece floating ball valve engineered for hydrocarbon isolation duty on wellheads, oil-patch manifolds and oilfield production lines. Machined from Ductile Iron DI with a 400 series stainless steel ball and 400 series stainless steel stem, the valve seals against RPTFE seats to deliver tight bubble-tight shut-off across a working range of 1000 PSI (WOG) - 2000 PSI(WOG). Available in 1" to 4" sizes with Threaded ASME B1.20.1 NPT / API 5B LP end connections and full port/ reduced port bore options, it offers the corrosion resistance and pressure containment demanded by upstream oil and gas service, with a temperature capability of -46°C to 232°C (-50°F to 450°F). Designed to ASME B16.34, MSS SP-110, API 6D, API 608 and tested to MSS-SP72, API 598, it provides dependable, low-torque on/off control for crude, produced water, gas and general field media.
Specifications
Key Features
- Two-piece floating ball design for reliable bubble-tight shut-off
- Ductile Iron DI body built for oilfield pressure containment
- 400 SERIES STAINLESS STEEL ball and 400 SERIES STAINLESS STEEL stem for wear and corrosion resistance
- RPTFE seats suited to crude, gas and produced-water service
- Threaded ASME B1.20.1 NPT / API 5B LP connections for direct field tie-in
- Working pressure up to 1000 PSI (WOG) - 2000 PSI(WOG)
Options
- Full port or reduced port bore
- Threaded NPT or API 5B LP / EUE end connections
- Lever or gear operation
- Locking handle device
Standards & Certifications
- ASME B16.34, MSS SP-110, API 6D, API 608
- MSS-SP72, API 598
Dimensions
| SIZE | PORT | PRESSURE | L(mm) | H(mm) | d(mm) | D(NPT) | KGS |
| 1″ | FP | 2000PSI | 102 | 93 | 25.4 | 11.5 | 1.93 |
| 2″ | RP/FP | 2000PSI | 140 | 134 | 38 | 11.5 | 6.00 |
| 2-1/2″ | RP/FP | 2000PSI | 152 | 140 | 50 | 8 | 8.28 |
| 3″ | RP/FP | 2000PSI | 190 | 140 | 50 | 8 | 9.00 |
| 4″ | RP/FP | 2000PSI | 222 | 174 | 76 | 8 | 20.00 |
