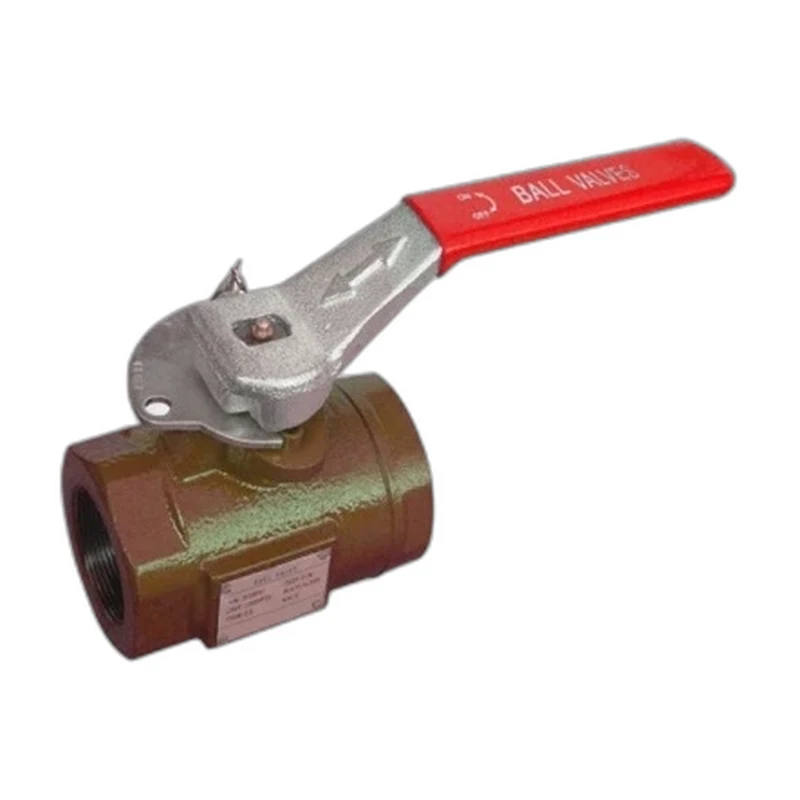

Ductile Iron Threaded Oilpatch Ball Valve
Two-piece ductile iron di floating ball valve rated 1000 PSI (WOG) - 2000 PSI(WOG) for oilfield isolation service in 1" to 4" threaded sizes.
The Ductile Iron Threaded Oilpatch Ball Valve is a rugged two-piece floating ball valve engineered for hydrocarbon isolation duty on wellheads, oil-patch manifolds and oilfield production lines. Machined from Ductile Iron DI with a 400 series stainless steel ball and 400 series stainless steel stem, the valve seals against RPTFE seats to deliver tight bubble-tight shut-off across a working range of 1000 PSI (WOG) - 2000 PSI(WOG). Available in 1" to 4" sizes with Threaded ASME B1.20.1 NPT / API 5B LP end connections and full port/ reduced port bore options, it offers the corrosion resistance and pressure containment demanded by upstream oil and gas service, with a temperature capability of -46°C to 232°C (-50°F to 450°F). Designed to ASME B16.34, MSS SP-110, API 6D, API 608 and tested to MSS-SP72, API 598, it provides dependable, low-torque on/off control for crude, produced water, gas and general field media.
Specifications
Key Features
- Two-piece floating ball design for reliable bubble-tight shut-off
- Ductile Iron DI body built for oilfield pressure containment
- 400 SERIES STAINLESS STEEL ball and 400 SERIES STAINLESS STEEL stem for wear and corrosion resistance
- RPTFE seats suited to crude, gas and produced-water service
- Threaded ASME B1.20.1 NPT / API 5B LP connections for direct field tie-in
- Working pressure up to 1000 PSI (WOG) - 2000 PSI(WOG)
Options
- Full port or reduced port bore
- Threaded NPT or API 5B LP / EUE end connections
- Lever or gear operation
- Locking handle device
Standards & Certifications
- ASME B16.34, MSS SP-110, API 6D, API 608
- MSS-SP72, API 598
Dimensions
| No. | Part. | Material |
| 1 | Body | Ductile Iron |
| 2 | Seats | RPTFE |
| 3 | Ball | SS420 |
| 4 | Body seal | VITON |
| 5 | Cap | Ductile Iron |
| 6 | Trust Bearing | PTFE |
| 7 | Stem O-ring | VITON |
| 8 | Trust Bearing | PTFE |
| 9 | Stop Plate | Steel |
| 10 | Retainer Ring | Steel |
| 11 | Handle | Ductile Iron |
| 12 | Stem | A276 420 |
| 13 | Grease zerw | Copper |
| Part# | Size | Port | Pressure | Weight(KG) | L | H | d | D |
| DIBV1FP-2000 | 1” | FP | 1000PSI2000PSI | 1.93 | 102 | 93 | 25.4 | 11.5NPT |
| DIBV1FP-2000 | 1-1/2” | FP | 1000PSI2000PSI | 6.00 | 140 | 134 | 38 | 11.5NPT |
| DIBV2FP-2000 | 2” | FP | 1000PSI2000PSI | 8.28 | 152 | 140 | 50 | 11.5NPT |
| DIBV3FP-2000 | 3” | FP | 1000PSI2000PSI | 20.00 | 222 | 174 | 76 | 8NPT |
| DIBV4FP-2000 | 4” | FP | 1000PSI2000PSI | 24.00 | 238 | 200 | 100 | 8NPT |
| Part# | Size | Port | Pressure | Weight(LBS) | L | H | d | D |
| DIBV1FP-2000 | 1” | FP | 1000PSI2000PSI | 4.25 | 4.02 | 3.66 | 1 | 11.5NPT |
| DIBV1FP-2000 | 1-1/2” | FP | 1000PSI2000PSI | 13.00 | 5.51 | 5.28 | 1.5 | 11.5NPT |
| DIBV2FP-2000 | 2” | FP | 1000PSI2000PSI | 18.00 | 5.98 | 5.51 | 2 | 11.5NPT |
| DIBV3FP-2000 | 3” | FP | 1000PSI2000PSI | 44.00 | 8.74 | 6.85 | 3 | 8NPT |
| DIBV4FP-2000 | 4” | FP | 1000PSI2000PSI | 52.20 | 9.37 | 7.88 | 4 | 8NPT |
