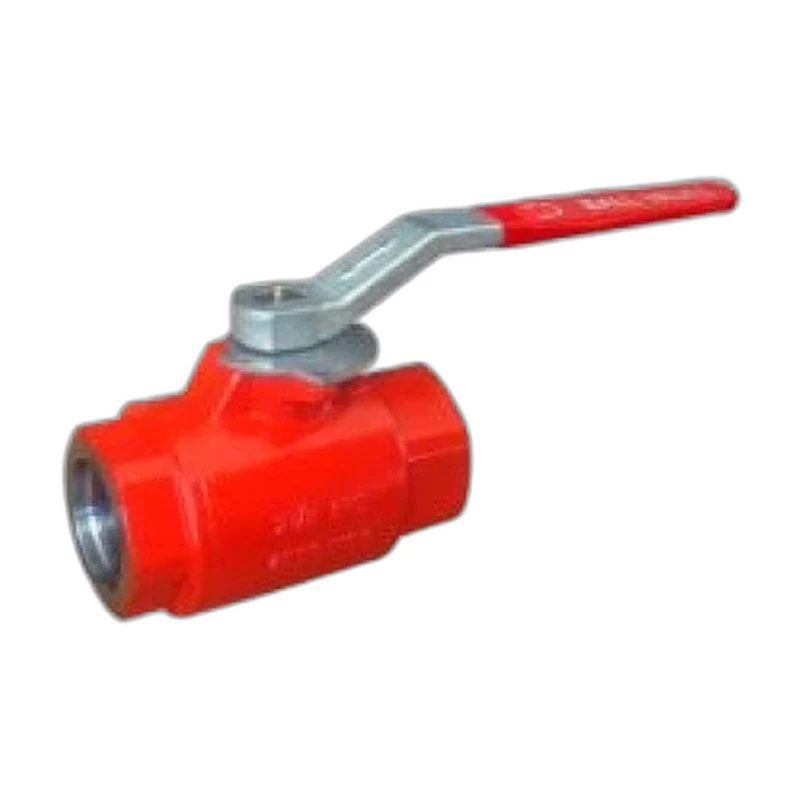

EUE 8RD Threaded Body Floating Oilfield Ball Valve
An EUE 8RD threaded-body floating ball valve rated to 3600 PSI WOG for oilfield tubing connections.
This two piece ZQV ball valve is engineered for high-pressure isolation across a 2-3/8" EUE (2-1/16"), 2-7/8" EUE (2-9/16") size range, with a maximum allowable operating pressure of 3600 PSI WOG. The ASTM A351 CF8M (stainless) / A216 WCB / ASTM A105 body carries an Stainless steel SS316 ball and Stainless steel SS316 stem, sealing against Delrin / PEEK seats for reliable, low-torque quarter-turn operation. API 5B EUE 8RD connections and a full port bore make it well suited to general service, air, water and oil & gas duty.
Specifications
Key Features
- Two Piece body construction
- Quarter-turn lever operation
- Rated to 3600 PSI WOG
- Stainless steel SS316 ball with Delrin / PEEK seats
- API 5B EUE 8RD
Options
- Multiple body material options
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110, API 608
- Tested to MSS SP-72, API 598
