Series F745X
PRPLJ015

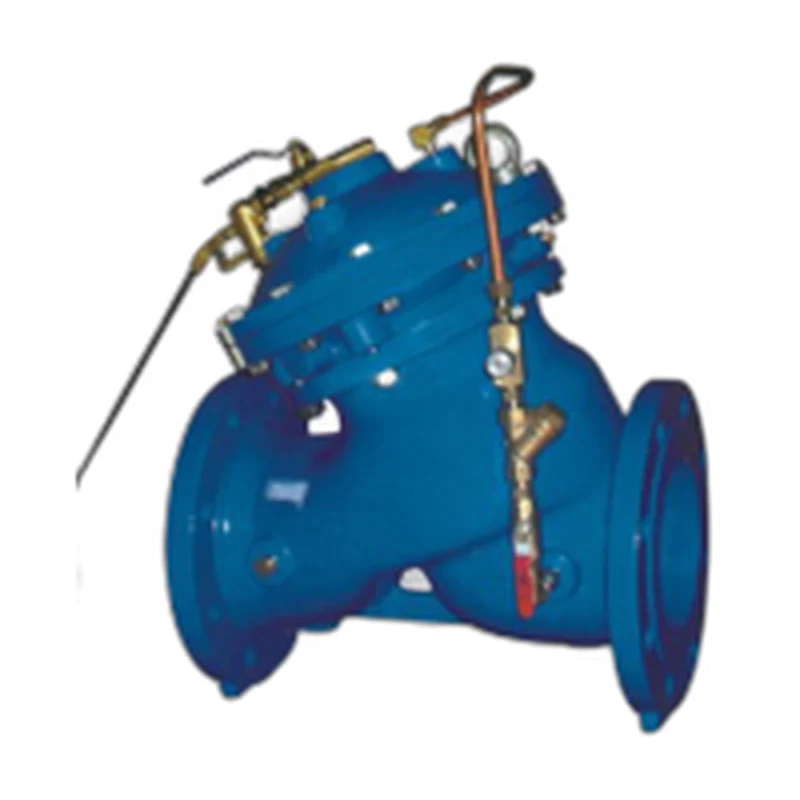

F745X Remote Control Floating Valve
A remote control float valve that maintains tank level via a remote float pilot, closing drip-tight when the set level is reached.
SizeDN50 to DN600PressurePN10 / PN16BodyDiaphragm hydraulic control valve
The F745X remote control floating valve regulates reservoir and tank levels using a remotely mounted float pilot, which signals the hydraulically actuated main valve to throttle and close as the target level is approached. It delivers reliable, non-slamming level control and tight shut-off without external power.
Specifications
Product Code
F745X
Size Range
DN50 to DN600
Pressure Rating
PN10 / PN16
End Connections
Flanged
Body Material
Ductile iron, epoxy coated
Body Style
Diaphragm hydraulic control valve
Operation
Remote float pilot, hydraulically actuated
Applications
Remote reservoir and tank level control
Design Standard
GB/T, manufacturer standard
Key Features
- Remote float level control
- Non-slam throttling closure
- Drip-tight shut-off
- No external power required
