Series Fig 100
PRPLZ276

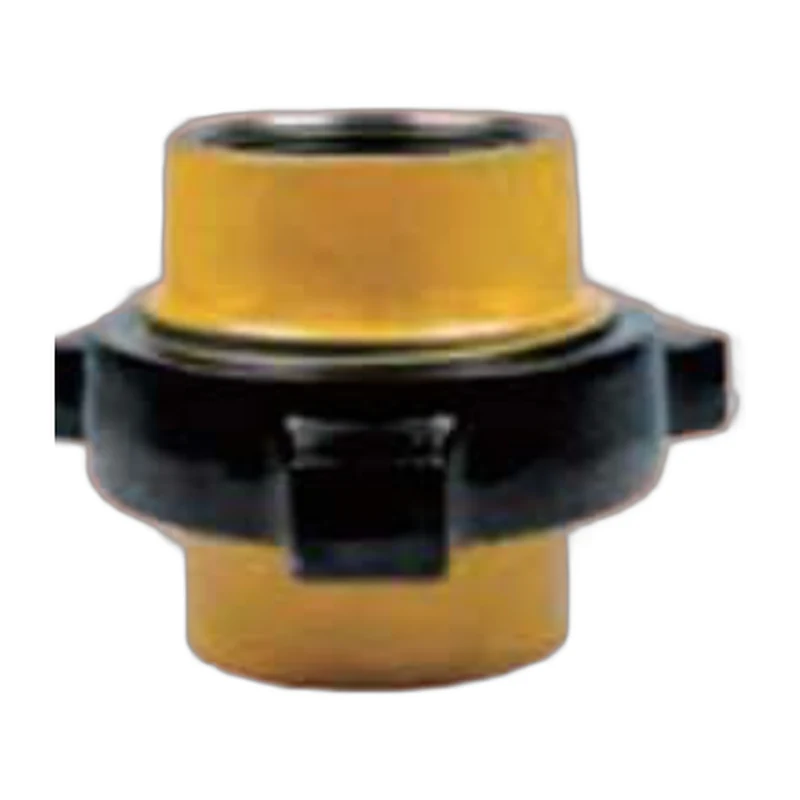

Figure 100 Hammer Union
A low-pressure Figure 100 hammer union for quick make-and-break connection of standard-service pipework.
Size1" to 12"Pressure1,000 PSI CWP (standard service)BodyThree-piece hammer union
CategoriesHammer Unions
The Figure 100 hammer union is a three-piece quick-connect union (male sub, female sub and wing nut) for low-pressure standard service. Tightened by striking the wing nut, it provides a fast, repeatable make-and-break connection for water, mud and standard fluid lines.
Specifications
Product Code
Fig 100
Size Range
1" to 12"
Pressure Rating
1,000 PSI CWP (standard service)
End Connections
Threaded / butt-weld subs
Body Material
Forged carbon steel
Body Style
Three-piece hammer union
Operation
Wing-nut hammer make-up
Applications
Low-pressure standard-service line connections
Design Standard
Manufacturer / industry Figure standard
Key Features
- Quick make-and-break
- Three-piece construction
- Low-pressure standard service
- Forged steel subs
