Series Fig 1502
PRPLZ281

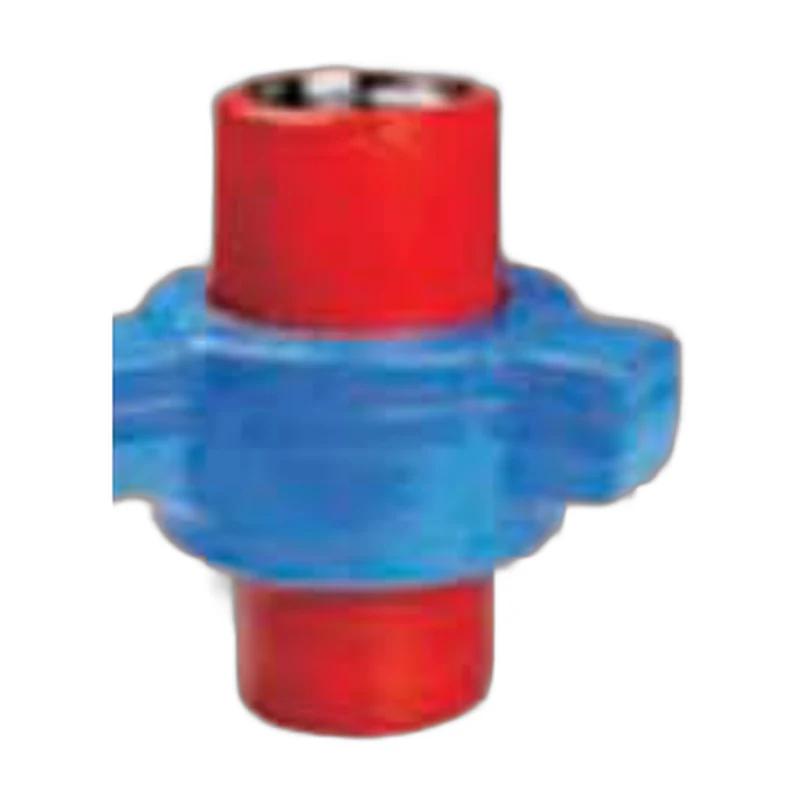

Figure 1502 Hammer Union
A high-pressure Figure 1502 hammer union rated to 15,000 PSI, the industry standard for high-pressure well service and frac connections.
Size1" to 4"Pressure15,000 PSI CWPBodyThree-piece hammer union
CategoriesHammer Unions
The Figure 1502 hammer union is the most widely used high-pressure oilfield union, rated to 15,000 PSI cold working pressure with a metal-to-metal seal. Built from alloy steel suitable for sour service, its three-piece, hammer-tightened design provides secure, quick connections on frac, cementing, testing and high-pressure flow lines.
Specifications
Product Code
Fig 1502
Size Range
1" to 4"
Pressure Rating
15,000 PSI CWP
End Connections
Threaded / butt-weld subs
Body Material
Forged alloy steel, NACE MR0175 compliant
Body Style
Three-piece hammer union
Operation
Wing-nut hammer make-up
Applications
Frac, cementing, well testing and high-pressure flow lines
Design Standard
Manufacturer / NACE MR0175
Key Features
- 15,000 PSI CWP rating
- Metal-to-metal seal
- Sour-service alloy steel
- Industry-standard frac connection
