Series Fig 200
PRPLZ278

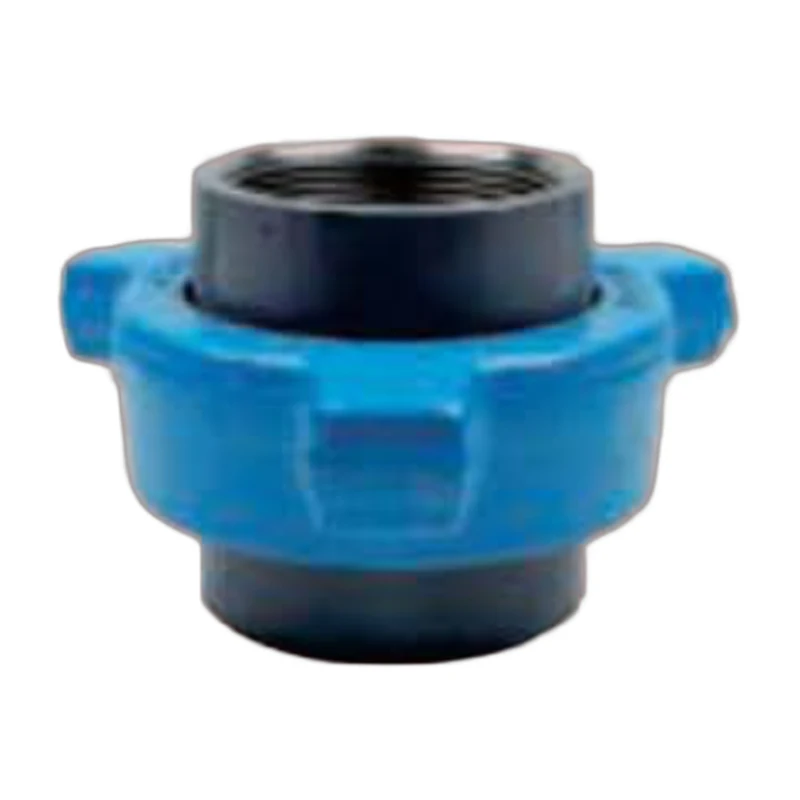

Figure 200 Hammer Union
A Figure 200 hammer union for standard-service applications at 2,000 PSI cold working pressure with quick wing-nut connection.
Size1" to 12"Pressure2,000 PSI CWP (standard service)BodyThree-piece hammer union
CategoriesHammer Unions
The Figure 200 hammer union is a widely used standard-service union rated to 2,000 PSI cold working pressure, with a butt-thread seal suited to non-sour water and mud lines. The three-piece, hammer-tightened design gives rapid, repeatable make-and-break in field service.
Specifications
Product Code
Fig 200
Size Range
1" to 12"
Pressure Rating
2,000 PSI CWP (standard service)
End Connections
Threaded / butt-weld subs
Body Material
Forged carbon steel
Body Style
Three-piece hammer union
Operation
Wing-nut hammer make-up
Applications
Standard-service water and mud lines
Design Standard
Manufacturer / industry Figure standard
Key Features
- 2,000 PSI CWP rating
- Quick make-and-break
- Butt-thread seal
- Forged steel subs
