Series Fig 602
PRPLZ280

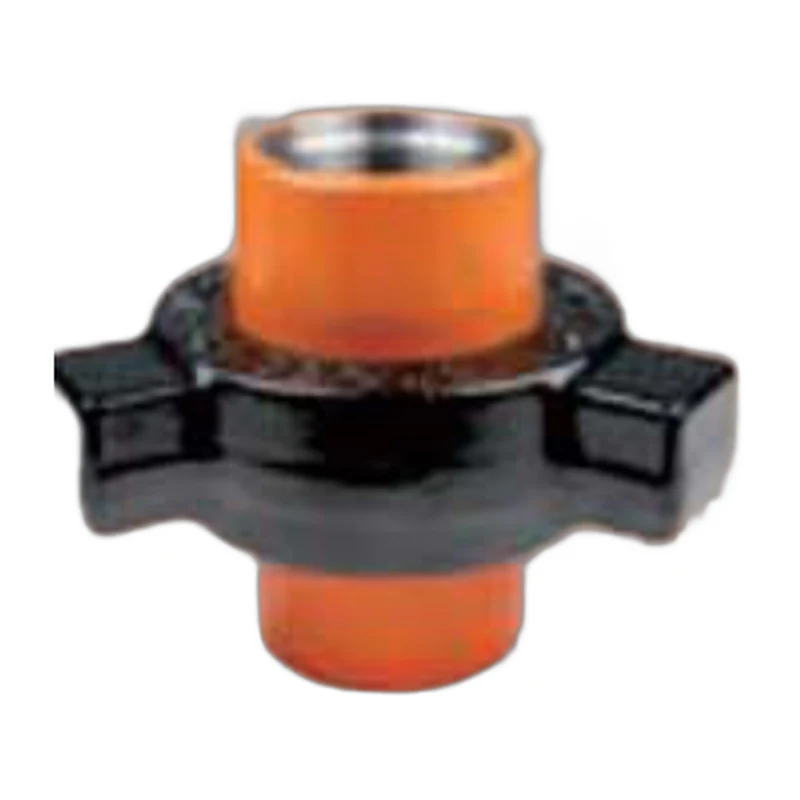

Figure 602 Hammer Union
A high-pressure Figure 602 hammer union rated to 6,000 PSI for sour-service and high-pressure oilfield connections.
Size1" to 4"Pressure6,000 PSI CWP (sour service)BodyThree-piece hammer union
CategoriesHammer Unions
The Figure 602 hammer union is a high-pressure union rated to 6,000 PSI cold working pressure, with a metal-to-metal seal and materials suited to sour (H2S) service. Its three-piece, hammer-tightened design provides secure, repeatable connections on high-pressure oilfield and cementing lines.
Specifications
Product Code
Fig 602
Size Range
1" to 4"
Pressure Rating
6,000 PSI CWP (sour service)
End Connections
Threaded / butt-weld subs
Body Material
Forged alloy steel, NACE MR0175 compliant
Body Style
Three-piece hammer union
Operation
Wing-nut hammer make-up
Applications
High-pressure sour-service oilfield lines
Design Standard
Manufacturer / NACE MR0175
Key Features
- 6,000 PSI CWP rating
- Metal-to-metal seal
- Sour-service materials
- High-pressure oilfield duty
