PRPLZ058

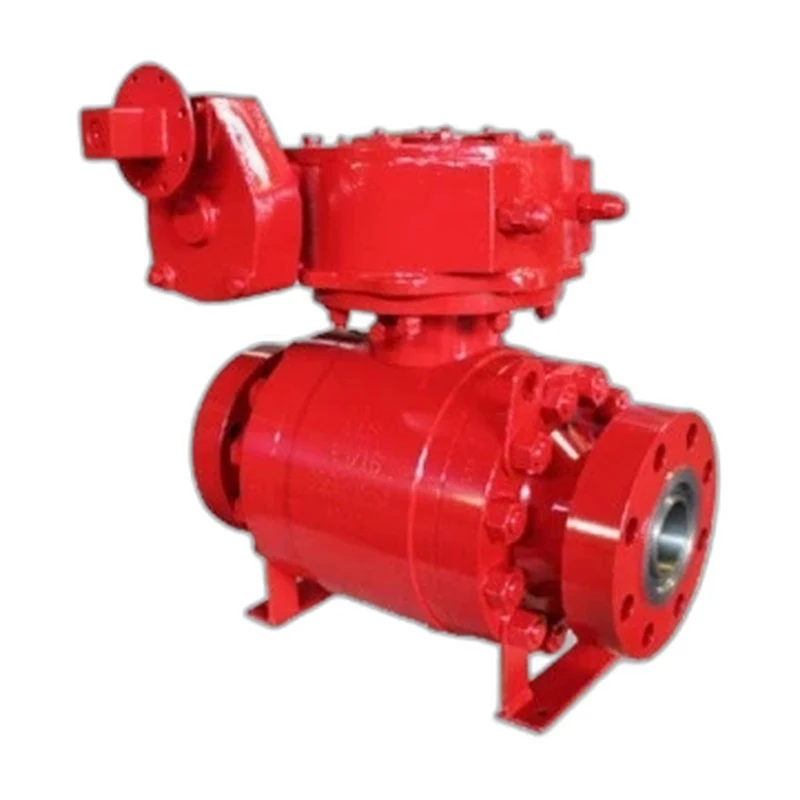

Flanged End API 6A RTJ Ball Valves
Flanged End Api 6A Rtj Ball Valves flanged floating ball valve for tight shut-off across general process service.
Size2" to 24"Pressure3000 PSI (WOG)PortFull PortBodyTwo Piece
The Flanged End Api 6A Rtj Ball Valves is a flanged ball valve designed around a floating ball arrangement that drives the ball firmly against the downstream seat for tight, bubble-free shut-off. Constructed from ASTM A105 / A182 F304 / A182 F316 and available in sizes 2" to 24", it offers flanged connectivity to ASME B16.5 for straightforward inline installation and reliable isolation across air, water, oil and gas and general process service.
Specifications
Size Range
2" to 24"
Pressure Rating
3000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Flanged RTJ API 6A / ASME B16.5
Body Material
ASTM A105 / A182 F304 / A182 F316
Ball / Disc / Wedge Material
A182 F316 / A182 F304
Seat Material
RPTFE / DEVLON / Peek
Stem Material
A182 F316 / A182 F304
Port Type
Full Port
Body Style
Two Piece
Operation
Lever / Wrench (gear or actuator available on larger sizes)
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34 , MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
ASME B16.10
Key Features
- Floating ball design for positive, tight shut-off
- Flanged ASME B16.5 ends for simple inline mounting
- Blowout-proof stem for operational safety
- Available in 2" to 24" size range
- Manufactured and tested to recognised API and MSS standards
Options
- Locking handle
- Gear operator
- Electric or pneumatic actuation
- Stem extension
Standards & Certifications
- ASME B16.34
- MSS SP-110
Dimensions
| DESIGN & MANUFACTURING STANDARDS | |
| Basic Design | API 6A |
| Wall Thickness | API 6A |
| Face-to-Face Dimension | API 6A |
| Flange End Dimension | API 6A |
| Inspection & Testing | API 6A |
| Fire Safe Design | API 607/BS 6755 |
| No | Name Of Part | Materials |
| 1 | Body | 4130 NQT |
| 2 | Ball | 410 SS NQT |
| 3 | Adapter | 4130 NQT |
| 4 | Stem | 410 SS NQT |
| 5 | Seat Ring | 410 SS NQT |
| 6 | Seat Insert | Devlon |
| 7 | Seat O-ring (2) | HNBR |
| 8 | Seat Seal | Graphoil |
| 9 | Gland | 4130 NQT |
| 10 | Gland Ring | 4130 NQT |
| 11 | Mounting Plate | 4130 NQT |
| 12 | Trunnion | 4130 NQT |
| 13 | Trunnion Bearing (2) | 316 SS/FIBREX |
| 14 | Thrust Washer | PEEK |
| 15 | Gland O-ring (2) | HNBR |
| 16 | Stem O-ring (2) | HNBR |
| 17 | Gland Gasket | Graphite/Stainless Steel |
| 18 | Adapter O-ring (2) | HNBR |
| 19 | Adapter Gasket | Graphite/Stainless Steel |
| 20 | Packing | Graphoil |
| 21 | Stud Bolt* | A320 L7M |
| 22 | Hex Nut* | A320 L7M |
| 23 | SHCS | A320 L7M |
| 24 | Anti-Static Spring | X-750 |
| 25 | Seat Spring | X-750 |
| 26 | Dowel Pin | Hardened Steel |
| 27 | Grease Fitting | 316 SS |
| 28 | Grease Fitting, BGH | 316 SS |
| 29 | Ball Check | 316 SS |
| 30 | NPT Plug | 316 SS |
| 31 | Vent Fitting | 316 SS |
| 32 | Stem Key | 1045 or Equal |
| 33 | Foot Plate* | Carbon Steel |
| 34 | Lift Plate* | Carbon Steel |
| 35 | Body Dowel Pin | Hardened Steel |
| 36 | Gear Operator | Carbon Steel |
| 37 | Handwheel | Carbon Steel |
| 38 | Trunnion Gasket | Graphite/SS |
| 39 | Trunnion O-ring (2) | HNBR |
