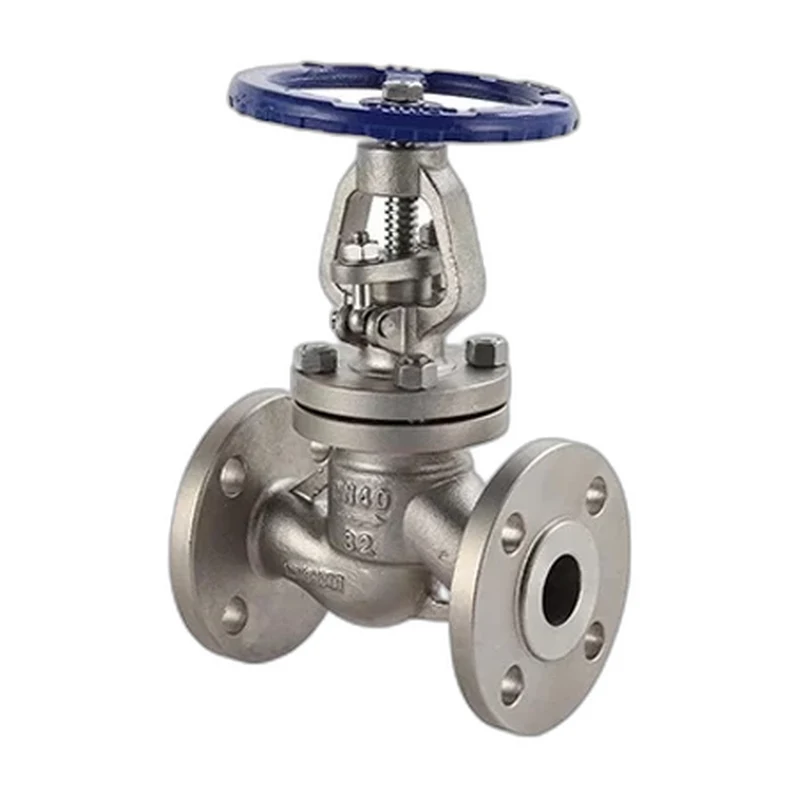

Flanged End Globe Valve
A forged steel flanged-end globe valve for throttling and regulating small to mid-bore high-pressure lines.
The Flanged End Globe Valve is a forged steel regulating valve that combines the strength of a forged body with the convenience of flanged connections for easy installation and removal. The disc seats onto the seat ring to throttle and regulate flow with the control authority globe valves are prized for, accepting the higher pressure drop that comes with their geometry. Forged A105N, low-temperature LF2, chrome-moly F11/F22 and F304/F316 stainless bodies cover Class 150 to 1500 with flanged raised-face and RTJ ends in sizes from 1/2 inch to 4 inch. Designed to BS 1873 / API 623 and tested to API 598, it suits throttling, bypass and regulating duties on hydrocarbon, steam and process lines.
Specifications
Key Features
- Precise throttling and flow regulation via disc-onto-seat closure
- Forged or cast body construction matched to service pressure and temperature
- Wide range of body and trim materials for corrosive and high-temperature media
- Renewable seat and disc for long, maintainable service life
- Multiple end connection options for flexible installation
Options
- NACE MR0175 compliant construction available
- Anti-static and fire-safe designs on request
- Actuation: gear, electric or pneumatic
- Special alloys and trims to order
Standards & Certifications
- Designed to BS 1873 / API 623 / ASME B16.34
- Tested to API 598
- Face-to-face per ASME B16.10
- NACE MR0175 available
