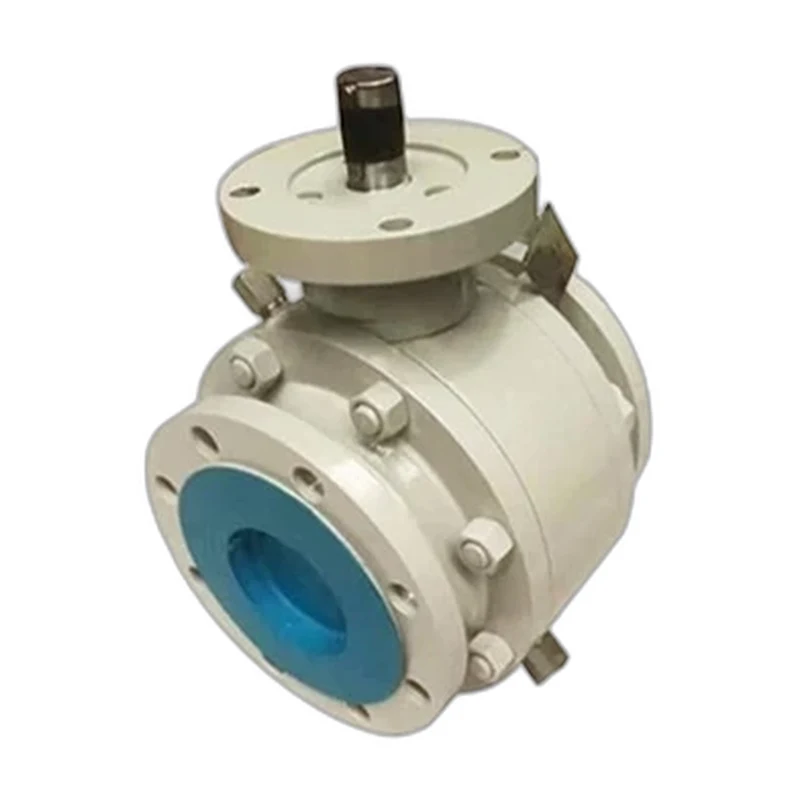

Flanged Ends Full Weld Ball Valve
A fully welded body ball valve with flanged ends, forged steel or stainless, 2 inch to 24 inch and ANSI Class 150 to 2500 for buried and high integrity service.
The Flanged Ends Full Weld Ball Valve uses a fully welded body for maximum integrity and zero body leak paths, making it well suited to buried pipelines and critical isolation. Flanged ends allow in-line installation while the welded construction eliminates body bolting. Built to API 6D and ASME B16.34 in A105, F304 or F316 with PTFE, RPTFE, PEEK or Delrin seats, it is available from 2 inch to 24 inch across ANSI Class 150 to 2500 in full or reduced port.
Specifications
Key Features
- Fully welded body, no body leak paths
- Flanged ASME B16.5 ends
- Suited to buried service
- Forged steel or stainless construction
- Full or reduced port
Options
- Body: A105, F304 or F316
- Seat: PTFE, RPTFE, PEEK or Delrin
- Operation: lever, gearbox, electric or pneumatic
Standards & Certifications
- API 6D
- ASME B16.34
- API 598
