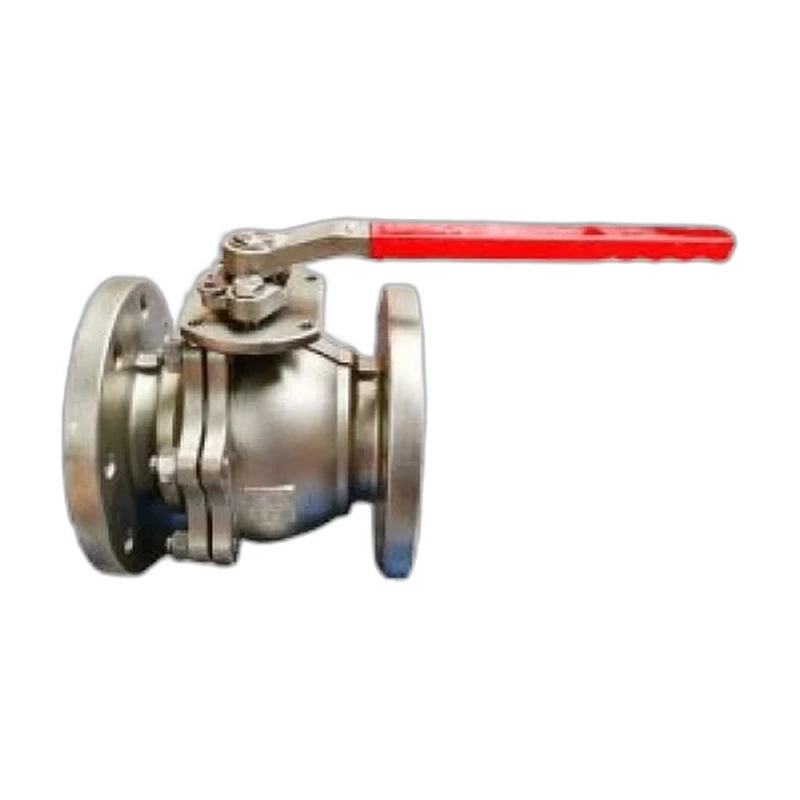

Flanged Floating Stainless Steel Ball Valve Full Port
A full port stainless steel floating ball valve with flanged ends, 1/2 inch to 8 inch and ANSI Class 150 to 2500 for corrosive and hygienic service.
Size1/2 inch to 8 inchPressureANSI Class 150 to 2500PortFull PortBodyTwo Piece
The Flanged Floating Stainless Steel Ball Valve offers full bore flow and corrosion resistant CF8M construction for chemical, water and hygienic duties. The floating ball gives tight bubble-tight shut-off against RPTFE, Devlon or PEEK seats. Built to API 6D and ASME B16.34, it is available from 1/2 inch to 8 inch across ANSI Class 150 to 2500 with flanged ASME B16.5 ends and full port.
Specifications
Size Range
1/2 inch to 8 inch
Pressure Rating
ANSI Class 150 to 2500
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Flanged, ASME B16.5 RF
Body Material
A351 CF8M (stainless steel)
Ball / Disc / Wedge Material
A182 F316 / A182 F304
Seat Material
RPTFE / Devlon / PEEK
Stem Material
A182 F316 / A182 F304
Port Type
Full Port
Body Style
Two Piece
Operation
Lever, Gearbox, Electric, Pneumatic
Applications
Chemical, Water, Hygienic, General Service
Design Standard
ASME B16.34, ASME B16.5, API 6D
Testing Standard
MSS SP-72, API 598
Face to Face Standard
ASME B16.10
Key Features
- Full bore stainless steel construction
- Floating ball for tight shut-off
- RPTFE / Devlon / PEEK seats
- Flanged ASME B16.5 ends
- Corrosion resistant CF8M body
Options
- Seat: RPTFE, Devlon or PEEK
- Operation: lever, gearbox, electric or pneumatic
Standards & Certifications
- API 6D
- ASME B16.34
- MSS SP-72
Dimensions
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H | W |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | ||
| 1/2″ | 1/2 (13) | 4-1/4 (108) | 3-7/16 (90) | 2-3/8 (60.5) | 1-3/8 (35) | 11/32 (9) | 4-Ø5/8 (16) | 3-1/4 (82) | 6-1/4 (160) |
| 3/4″ | 3/4 (19) | 4-19/32 (117) | 3-15/16 (100) | 2-3/4 (70) | 1-11/16 (43) | 13/32 (10) | 4-Ø5/8 (16) | 3-1/4 (84) | 6-1/4 (160) |
| 1″ | 1 (25) | 5 (127) | 4-11/32 (110) | 3-1/8 (79.5) | 2 (51) | 7/16 (11) | 4-Ø5/8 (16) | 4-1/8 (105.5) | 7-1/8 (180) |
| 1-1/4″ | 1-1/4 (32) | 5-1/2 (140) | 4-17/32 (115) | 3-1/2 (89) | 2-1/2 (64) | 7/16 (11) | 4-Ø5/8 (16) | 4-1/8 (105.5) | 7-1/8 (180) |
| 1-1/2″ | 1-1/2 (38) | 6-1/2 (165) | 4-15/16 (125) | 3-7/8 (98.5) | 2-7/8 (73) | 1/2 (13) | 4-Ø5/8 (16) | 4-5/8 (118) | 9 (230) |
| 2″ | 2 (50) | 7 (178) | 6 (150) | 4-3/4 (120.5) | 3-5/8 (92) | 9/16 (14.5) | 4-Ø3/4 (19) | 5 (126) | 9 (230) |
| 3″ | 3 (75) | 8 (203) | 7-1/2 (190) | 6 (152.5) | 5 (127) | 11/16 (17.5) | 4-Ø3/4 (19) | 6-1/8 (154.5) | 14-1/8 (360) |
| 4″ | 4 (100) | 9 (229) | 9-1/16 (230) | 7-1/2 (190.5) | 6-3/16 (157) | 29/32 (22.5) | 8-Ø3/4 (19) | 7-5/8 (192) | 17-3/4 (450) |
| 6″ | 6 (150) | 15-1/2 (394) | 11 (280) | 9-1/2 (241.5) | 8-1/2 (216) | 15/16 (24) | 8-Ø7/8 (22) | 10 (255) | 27-1/2 (700) |
| 8″ | 8 (201) | 18 (457) | 13-1/2 (345) | 11-3/4 (298.5) | 10-5/8 (270) | 1-1/16 (27) | 8-Ø7/8 (22) | 12-1/2 (318) | 29-1/2 (750) |
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H | W |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | ||
| 1/2″ | 1/2 (13) | 5-1/2 (140) | 3-3/4 (95) | 2-5/8 (66.5) | 1-3/8 (35) | 1/2 (13) | 4-Ø5/8 (16) | 3-1/4 (82) | 6-1/4 (160) |
| 3/4″ | 3/4 (19) | 6 (152) | 4-1/2 (115) | 3-1/4 (82.5) | 1-11/16 (43) | 9/16 (14.5) | 4-Ø3/4 (19) | 3-1/4 (84) | 6-1/4 (160) |
| 1″ | 1 (25) | 6-1/2 (165) | 4-15/16 (125) | 3-1/2 (89) | 2 (51) | 5/8 (16) | 4-Ø3/4 (19) | 4-1/8 (105.5) | 7-1/8 (180) |
| 1-1/4″ | 1-1/4 (32) | 7 (178) | 5-5/16 (135) | 3-7/8 (98.5) | 2-1/2 (64) | 11/16 (17.5) | 4-Ø3/4 (19) | 4-3/8 (112) | 7-1/8 (180) |
| 1-1/2″ | 1-1/2 (38) | 7-1/2 (190) | 6-7/64 (155) | 4-1/2 (114.5) | 2-7/8 (73) | 3/4 (19.5) | 4-Ø7/8 (22) | 4-5/8 (118) | 9 (230) |
| 2″ | 2 (50) | 8-1/2 (216) | 6-1/2 (165) | 5 (127) | 3-5/8 (92) | 13/16 (21) | 8-Ø3/4 (19) | 5 (126) | 9 (230) |
| 3″ | 3 (75) | 11-9/64 (283) | 8-1/4 (210) | 6-5/8 (168.5) | 5 (127) | 1-1/16 (27) | 8-Ø7/8 (22) | 6-1/8 (154.5) | 14-1/8 (360) |
| 4″ | 4 (100) | 12 (305) | 10-1/32 (255) | 7-7/8 (200) | 6-3/16 (157) | 1-1/4 (30.5) | 8-Ø7/8 (22) | 7-5/8 (192) | 17-3/4 (450) |
| 6″ | 6 (150) | 15-7/8 (403) | 12-19/32 (320) | 10-5/8 (270) | 8-1/2 (216) | 1-3/8 (35) | 12-Ø7/8 (22) | 8-3/4 (222) | 10 (255) |
| 8″ | 8 (201) | 19-3/4 (502) | 15 (380) | 13 (330) | 10-5/8 (270) | 1-9/16 (40) | 12-Ø1 (25) | / | / |
