Purple Valves
PRPLZ062

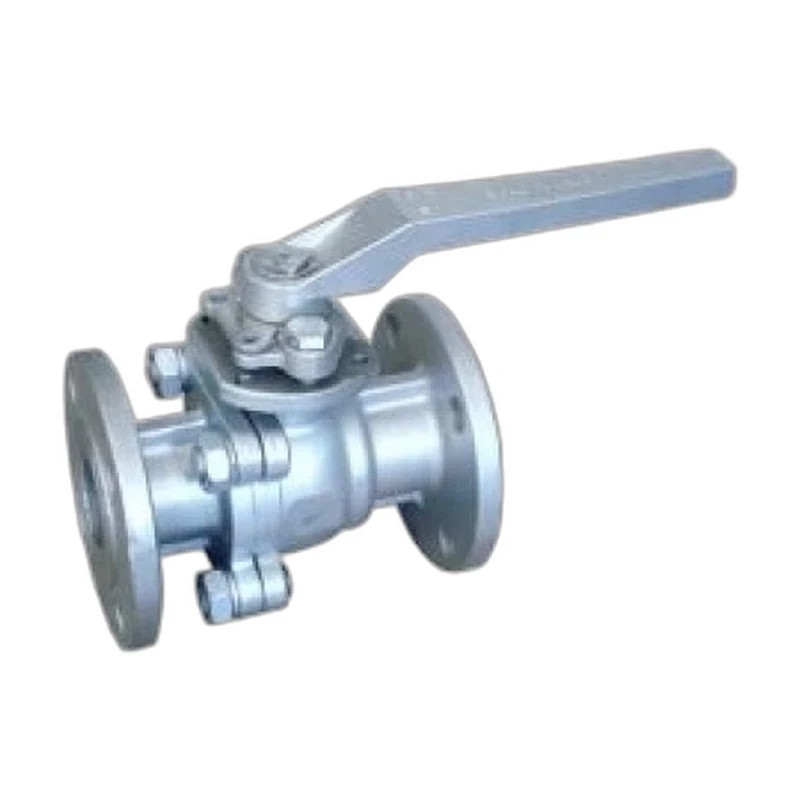

Floating Flanged Ball Valve Reduced Port
A reduced port floating ball valve with flanged ends, carbon or stainless steel, 1/2 inch to 8 inch and ANSI Class 150 to 2500.
Size1/2 inch to 8 inchPressureANSI Class 150 to 2500PortReduced PortBodyTwo Piece
The Floating Flanged Ball Valve Reduced Port offers economical, compact isolation where full bore flow is not required. The reduced bore lowers weight and cost while the floating ball delivers tight shut-off against RPTFE, Devlon or PEEK seats. Built to API 6D and ASME B16.34 in carbon or stainless steel, it is available from 1/2 inch to 8 inch across ANSI Class 150 to 2500 with flanged ASME B16.5 ends.
Specifications
Size Range
1/2 inch to 8 inch
Pressure Rating
ANSI Class 150 to 2500
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Flanged, ASME B16.5 RF
Body Material
A216 WCB / A351 CF8M
Ball / Disc / Wedge Material
A182 F316 / A182 F304
Seat Material
RPTFE / Devlon / PEEK
Stem Material
A182 F316 / A182 F304
Port Type
Reduced Port
Body Style
Two Piece
Operation
Lever, Gearbox, Electric, Pneumatic
Applications
General Service, Air, Water, Oil and Gas
Design Standard
ASME B16.34, ASME B16.5, API 6D
Testing Standard
MSS SP-72, API 598
Face to Face Standard
ASME B16.10
Key Features
- Reduced bore for compact, economical isolation
- Floating ball for tight shut-off
- Flanged ASME B16.5 ends
- Carbon or stainless steel
- RPTFE / Devlon / PEEK seats
Options
- Body: WCB or CF8M
- Seat: RPTFE, Devlon or PEEK
- Operation: lever, gearbox, electric or pneumatic
Standards & Certifications
- API 6D
- ASME B16.34
- MSS SP-72
Dimensions
| Sizes | d | d1 | L | D | D1 | D2 | T | N-ØD | H | W |
| Inside Bore Diameter | Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | ||
| 3/4″ X 1/2″ | 1/2 (13) | 3/4 (19) | 4-19/32 (117) | 3-15/16 (100) | 2-3/4 (70) | 1-11/16 (43) | 13/32 (10) | 4-Ø5/8 (16) | 3-1/4 (82) | 6-1/4 (160) |
| 1″ X 3/4″ | 3/4 (19) | 1 (25) | 5 (127) | 4-11/32 (110) | 3-1/8 (79.5) | 2 (51) | 7/16 (11) | 4-Ø5/8 (16) | 3-1/4 (84) | 6-1/4 (160) |
| 1-1/4″ X 1″ | 1 (25) | 1-1/4 (32) | 5-1/2 (140) | 4-17/32 (115) | 3-1/2 (89) | 2-1/2 (64) | 7/16 (11) | 4-Ø5/8 (16) | 4-1/8 (105.5) | 7-1/8 (180) |
| 1-1/2″ X 1-1/4″ | 1-1/4 (32) | 1-1/2 (38) | 6-1/2 (165) | 4-15/16 (125) | 3-7/8 (98.5) | 2-7/8 (73) | 1/2 (13) | 4-Ø5/8 (16) | 4-1/8 (105.5) | 7-1/8 (180) |
| 2″ X 1-1/2″ | 1-1/2 (38) | 2 (50) | 7 (178) | 6 (150) | 4-3/4 (120.5) | 3-5/8 (92) | 9/16 (14.5) | 4-Ø3/4 (19) | 4-5/8 (118) | 9 (230) |
| 3″ X 2″ | 2 (50) | 3 (75) | 8 (203) | 7-1/2 (190) | 6 (152.5) | 5 (127) | 11/16 (17.5) | 4-Ø3/4 (19) | 5 (126) | 9 (230) |
| 4″ X 3″ | 3 (75) | 4 (100) | 9 (229) | 9-1/16 (230) | 7-1/2 (190.5) | 6-3/16 (157) | 29/32 (22.5) | 8-Ø3/4 (19) | 6-1/8 (154.5) | 14-1/8 (360) |
| 6″ X 4″ | 4 (100) | 6 (150) | 10-1/2 (267) | 11 (280) | 9-1/2 (241.5) | 8-1/2 (216) | 15/16 (24) | 8-Ø7/8 (22) | 7-5/8 (192) | 17-3/4 (450) |
| 8″ X 6″ | 6 (150) | 8 (201) | 11-1/2 (292) | 13-1/2 (345) | 11-3/4 (298.5) | 10-5/8 (270) | 1-1/16 (27) | 8-Ø7/8 (22) | 10 (255) | 27-1/2 (700) |
| Sizes | d | d1 | L | D | D1 | D2 | T | N-ØD | H | W |
| Inside Bore Diameter | Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | ||
| 3/4″ X 1/2″ | 1/2 (13) | 3/4 (19) | 6 (152) | 4-1/2 (115) | 3-1/4 (82.5) | 1-11/16 (43) | 9/16(14.5) | 4-Ø3/4 (19) | 3-1/4 (82) | 6-1/4 (160) |
| 1″ X 3/4″ | 3/4 (19) | 1 (25) | 6-1/2 (165) | 4-15/16 (125) | 3-1/2 (89) | 2 (51) | 5/8 (16) | 4-Ø3/4 (19) | 3-1/4 (84) | 6-1/4 (160) |
| 1-1/4″ X 1″ | 1 (25) | 1-1/4 (32) | 7 (178) | 5-5/16 (135) | 3-7/8 (98.5) | 2-1/2 (64) | 11/16 (17.5) | 4-Ø3/4 (19) | 4-1/8 (105.5) | 7-1/8 (180) |
| 1-1/2″ X 1-1/4″ | 1-1/4 (32) | 1-1/2 (38) | 7-1/2 (190) | 6-7/64 (155) | 4-1/2 (114.5) | 2-7/8 (73) | 3/4 (19.5) | 4-Ø7/8 (22) | 4-1/8 (105.5) | 7-1/8 (180) |
| 2″ X 1-1/2″ | 1-1/2 (38) | 2 (50) | 8-1/2 (216) | 6-1/2 (165) | 5 (127) | 3-5/8 (92) | 13/16 (21) | 8-Ø3/4 (19) | 4-5/8 (118) | 9 (230) |
| 3″ X 2″ | 2 (50) | 3 (75) | 11-9/64 (283) | 8-1/4 (210) | 6-5/8 (168.5) | 5 (127) | 1-1/16 (27) | 8-Ø7/8 (22) | 5 (126) | 9 (230) |
| 4″ X 3″ | 3 (75) | 4 (100) | 12 (305) | 10-1/32 (255) | 7-7/8 (200) | 6-3/16 (157) | 1-1/4 (30.5) | 8-Ø7/8 (22) | 6-1/8 (154.5) | 14-1/8 (360) |
| 6″ X 4″ | 4 (100) | 6 (150) | 15-7/8 (403) | 12-19/32 (320) | 10-5/8 (270) | 8-1/2 (216) | 1-3/8 (35) | 12-Ø7/8 (22) | 7-5/8 (192) | 17-3/4 (450) |
| 8″ X 6″ | 6 (150) | 8 (201) | 16-1/2 (419) | 15 (380) | 13 (330) | 10-5/8 (270) | 1-9/16 (40) | 12-Ø1 (25) | 10 (255) | 27-1/2 (700) |
