Purple Valves
PRPFL033

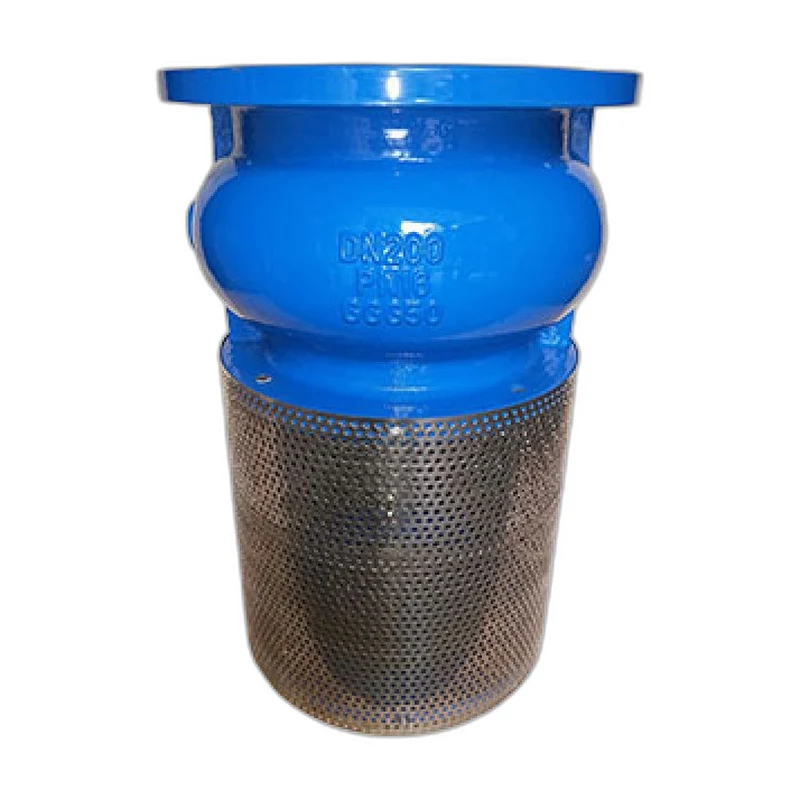

Foot Valve 01 DN50-DN300
Flanged foot valve with strainer for pump suction lines, DN50 to DN300.
SizeDN50 to DN300PressurePN16
The Foot Valve 01 combines a non-return valve and suction strainer at the base of pump suction pipework, keeping the line primed and excluding debris. Face-to-face to DIN 2533 PN16, flanges to EN 1092-2 and testing to BS EN 12266-1 Class A.
Specifications
Size Range
DN50 to DN300
Pressure Rating
PN16
End Connections
Flanged EN 1092-2
Applications
Water and wastewater, irrigation, pumping stations, municipal infrastructure, fire protection
Testing Standard
BS EN 12266-1 Class A
Key Features
- Combined non-return valve and strainer
- Maintains pump prime
- Flanges EN 1092-2 PN16
- Tested BS EN 12266-1 Class A
- Sizes DN50 to DN300
