Purple Valves
PRPFL041

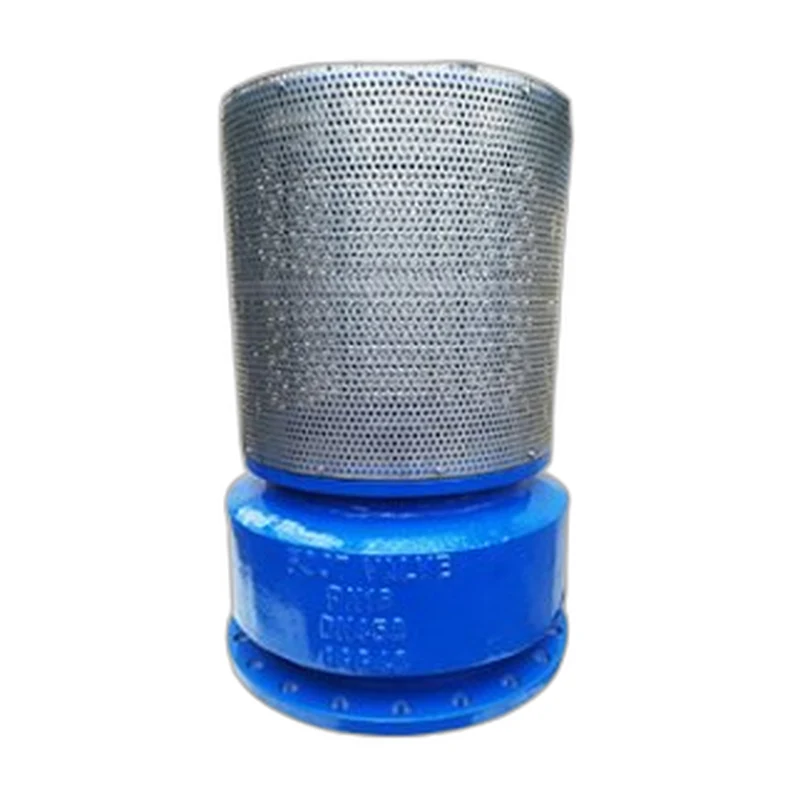

Foot Valve DN350-DN800 (Foot Valve 02)
Large-diameter ductile iron foot valve with stainless steel strainer screen for pump suction lines from DN350 to DN800.
SizeDN350-DN800PressurePN16BodyFoot valve with strainer
The Foot Valve 02 is a large-bore ductile iron foot valve fitted at the inlet of a pump suction line to retain prime and prevent backflow. A spring-assisted disc with NBR sealing provides non-return action while an integral SS304 strainer screen keeps debris out of the pump, and the flanged, FBE-coated square body covers DN350 to DN800 for water and wastewater abstraction duties.
Specifications
Size Range
DN350-DN800
Pressure Rating
PN16
End Connections
Flanged (EN 1092-2 PN16)
Body Material
Ductile Iron GGG50
Seat Material
NBR
Body Style
Foot valve with strainer
Operation
Automatic (non-return)
Applications
Pump suction lines in water and wastewater abstraction.
Testing Standard
BS EN12266-1 Class A
Face to Face Standard
DIN2533 PN16
Key Features
- Spring-assisted non-return disc
- Integral SS304 strainer screen
- Ductile iron body, RAL5017 FBE coated
- Bolted bracket support
- Seat test 17.6bar / shell test 24bar
Options
- Sizes DN350 to DN800
