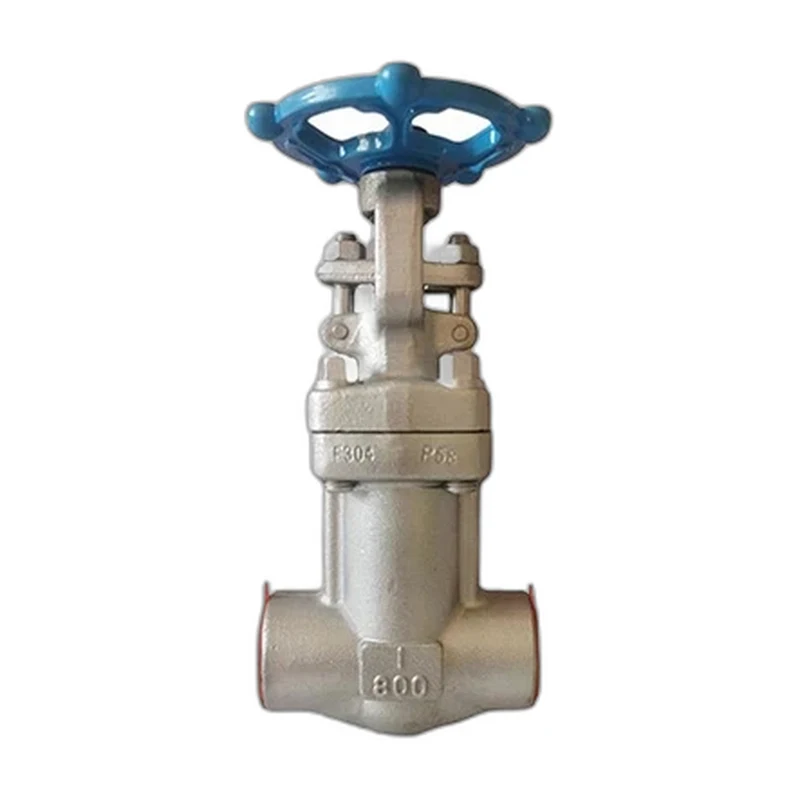

Forged Bellow Sealed Gate Valve
A forged bellow-sealed gate valve that uses a welded metal bellows to deliver zero-leakage stem sealing for hazardous and toxic media.
The Forged Bellow Sealed Gate Valve places a welded metallic bellows around the stem to create a hermetic barrier between the process fluid and the atmosphere, virtually eliminating fugitive stem emissions. This makes it the preferred isolation valve for toxic, flammable or environmentally sensitive media. As a gate valve it is built for on/off duty only, using a flexible wedge and rising stem to seal a full-bore bore, and a back-up gland packing provides a secondary seal should the bellows ever be compromised. Forged construction supports the high pressure classes typical of chemical and refinery service.
Specifications
Key Features
- OS&Y rising stem with visual position indication
- Bolted bonnet construction for maintainability
- Flexible wedge for reliable bidirectional sealing
- Full-bore through-conduit flow for minimal pressure drop
- Low-fugitive-emission packing and gasket sets available
Options
- NACE MR0175 compliance
- Bevel gear operator
- Actuation-ready ISO mounting pads
- Thermal relief (DTR) systems
- Double-lead stem for faster run time
Standards & Certifications
- API 600 / API 602 / API 603
- ASME B16.34
- NACE MR0175 (on request)
- Low-fugitive-emission packing available
