Purple Valves
PRPLZ084

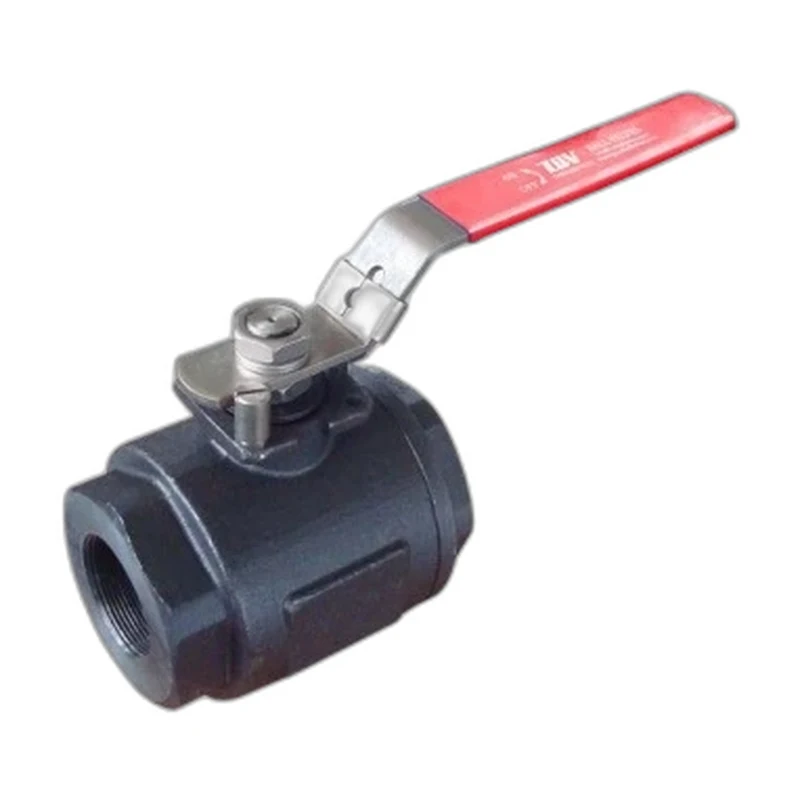

Forged Carton Steel Class 1500 Threaded Ball Valve
A two-piece forged carbon steel Class 1500 threaded ball valve rated to 3000 PSI WOG.
Size1/4" to 2"PressureANSI Class 1500 / 3000 PSI (WOG)PortFull PortBodyTwo Piece
This forged carbon steel ball valve is rated to Class 1500 / 3000 PSI WOG and built primarily from ASTM A105, with A182 F316 and F304 stainless options. Sized from 1/4 inch to 2 inch with full port and NPT threaded ends, it combines an A182 F316 ball and stem with Delrin or PEEK seats for durable, leak-tight performance in air, water, oil and gas service.
Specifications
Size Range
1/4" to 2"
Pressure Rating
ANSI Class 1500 / 3000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT ASME B1.20.1
Body Material
ASTM A105 / A182 F316 / A182 F304
Ball / Disc / Wedge Material
A182 F316 stainless
Seat Material
Delrin / PEEK
Stem Material
A182 F316 stainless
Port Type
Full Port
Body Style
Two Piece
Operation
Manual lever / wrench
Applications
General service, air, water, oil and gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Forged carbon steel Class 1500 construction
- Full port bore
- 3000 PSI WOG rating
- A182 F316 stainless ball and stem
- Delrin or PEEK seats
Options
- Carbon or stainless body
- Delrin or PEEK seats
- Locking handle
Standards & Certifications
- ASME B16.34
- MSS SP-110
- MSS SP-72
- API 598
