Purple Valves
PRPFL088
Forged Pipe Fittings
High-pressure forged steel pipe fittings and couplings made to ASME B16.11 for threaded and socket-weld pipework.
PressureClass 2000 / 3000 / 6000BodyForged fitting

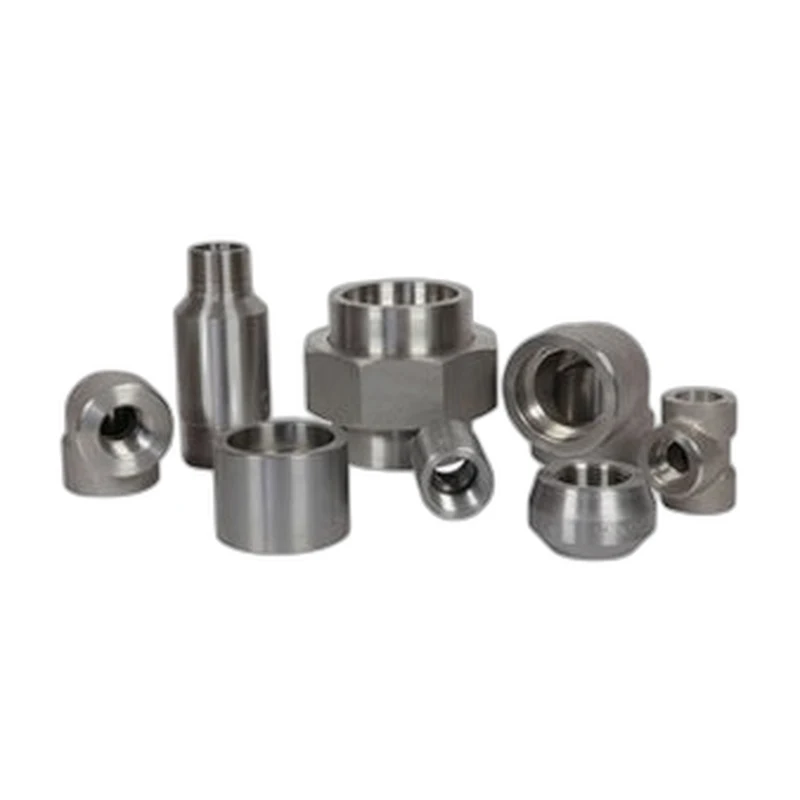

These forged pipe fittings and couplings join nominal-bore pipes in high-pressure and high-temperature service where cast fittings would be unsuitable. Forged from solid steel and manufactured to ASME B16.11, MSS-SP-79/83/95/97 and BS3799, they provide robust, leak-tight connections in threaded and socket-weld configurations. Typical items include couplings, elbows, tees, caps and unions for oil and gas, power and process piping systems.
Specifications
Pressure Rating
Class 2000 / 3000 / 6000
End Connections
Threaded (NPT) and socket weld
Body Material
Forged steel
Body Style
Forged fitting
Operation
N/A (pipe fitting)
Applications
Suited to oil and gas, petrochemical and power plant piping, plus general high-pressure process systems using threaded or socket-weld connections.
Design Standard
ASME B16.11 / MSS-SP-79/83/95/97 / BS3799
Key Features
- Forged solid steel construction
- Manufactured to ASME B16.11
- Threaded and socket-weld ends
- Suited to high pressure and temperature
Options
- Couplings
- Elbows
- Tees
- Caps
- Unions
