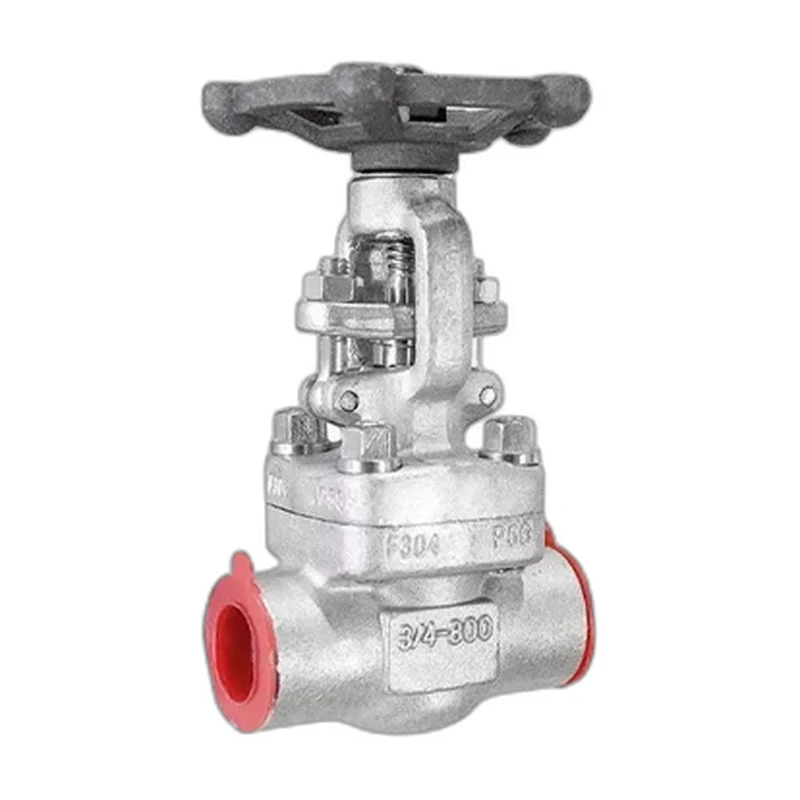

Forged Stainless Steel Gate Valve
A forged stainless steel gate valve delivering corrosion-resistant on/off isolation for aggressive chemical and process media.
The Forged Stainless Steel Gate Valve is machined from austenitic stainless forgings (316 / 316L / CF8M) to resist corrosion from aggressive chemical, food, pharmaceutical and process media. It performs purely as an on/off isolation valve, using a flexible wedge and rising stem to seal a full-bore flow path with minimal turbulence, and should not be throttled. The all-stainless construction extends service life in wetted, acidic or hygienic environments where carbon steel would corrode.
Specifications
Key Features
- OS&Y rising stem with visual position indication
- Bolted bonnet construction for maintainability
- Flexible wedge for reliable bidirectional sealing
- Full-bore through-conduit flow for minimal pressure drop
- Low-fugitive-emission packing and gasket sets available
Options
- NACE MR0175 compliance
- Bevel gear operator
- Actuation-ready ISO mounting pads
- Thermal relief (DTR) systems
- Double-lead stem for faster run time
Standards & Certifications
- API 600 / API 602 / API 603
- ASME B16.34
- NACE MR0175 (on request)
- Low-fugitive-emission packing available
