Series BVT
PRPLZ145

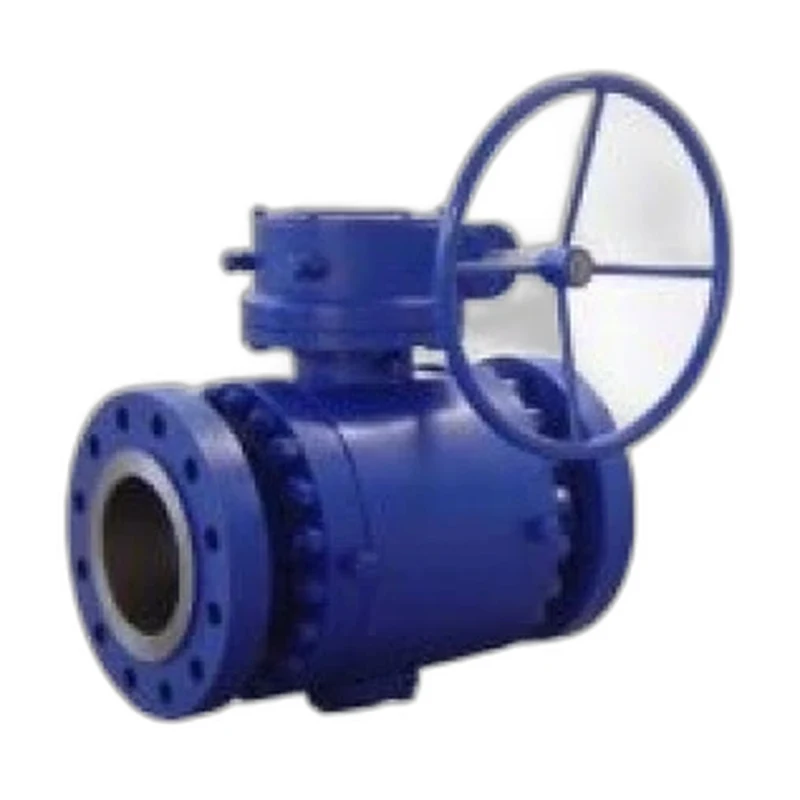

Forged Steel Flange Trunnion Ball Valve
A forged steel flanged trunnion mounted ball valve built to API 6D, in two or three piece construction from 2 inch to 24 inch and ANSI Class 150 to 2500 for oil and gas, water and general service.
Size2 inch to 24 inchPressureANSI Class 150 to 2500PortFull Port / Reduced PortBodyTwo Piece / Three Piece
The Forged Steel Flange Trunnion Ball Valve is a high integrity isolation valve built to API 6D with a forged steel body for strength and corrosion resistance. The trunnion mounted ball keeps operating torque low across the pressure range, while the flanged ends suit demanding oil and gas, water and general process duties. It is available in sizes from 2 inch to 24 inch and pressure classes from 150 to 2500, in full or reduced port, with lever, gearbox, electric actuator or pneumatic operation. Fire-safe certification to API 607, a blow-out proof stem and an integral ISO actuator mounting pad come as standard.
Specifications
Product Code
BVT
Size Range
2 inch to 24 inch
Pressure Rating
ANSI Class 150 to 2500
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
ASME B16.5 RF, RTJ
Body Material
A105, LF2, F304, F316 (forged steel)
Ball / Disc / Wedge Material
A182 F316
Seat Material
Delrin / PEEK
Stem Material
A182 F316
Port Type
Full Port / Reduced Port
Body Style
Two Piece / Three Piece
Operation
Lever, Gearbox, Electric actuator, Pneumatic
Applications
Oil and Gas, Water, Air, General Service
Design Standard
ASME B16.34, API 6D, ASME B16.10
Testing Standard
MSS SP-72, API 598, API 6D
Face to Face Standard
ASME B16.10
Key Features
- API 6D design
- Fire-safe certified to API 607
- Blow-out proof stem
- Adjustable stem packing with anti-static device
- Integral ISO mounting pad for actuation
- Integral locking device
- NACE MR-01-75 compliant
Options
- Body: WCB, A105, LF2, LCC or 316SS
- Seat: RPTFE, Viton, Devlon, Nylon or PEEK
- Ball: 316, 304, LF2 or A105+ENP
Standards & Certifications
- API 6D
- API 607 Fire-Safe
- NACE MR-01-75
Dimensions
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 2 (50) | 7 (178) | 6 (150) | 4-3/4 (120.5) | 3-5/8 (92) | 9/16 (14.5) | 4-Ø3/4 (19) | 3-21/32 (93) |
| 3″ | 3 (75) | 8 (203) | 7-1/2 (190) | 6 (152.5) | 5 (127) | 11/16 (17.5) | 4-Ø3/4 (19) | 4-21/32 (118.5) |
| 4″ | 4 (100) | 9 (229) | 9-1/16 (230) | 7-1/2 (190.5) | 6-3/4 (171) | 29/32 (22.5) | 8-Ø3/4 (19) | 5-21/32 (143.5) |
| 6″ | 6 (150) | 15-1/2 (394) | 11 (280) | 9-1/2 (241.5) | 8-1/2 (216) | 15/16 (24) | 8-Ø7/8 (22) | 8-3/16 (208) |
| 8″ | 8 (201) | 18 (457) | 13-1/2 (345) | 11-3/4 (298.5) | 10-5/8 (270) | 1-1/16 (27) | 8-Ø7/8 (22) | 9-3/4 (248) |
| 10″ | 10 (252) | 21 (533) | 16 (405) | 14-1/4 (362) | 12-3/4 (324) | 1-9/64 (29) | 12-Ø1 (25) | 11-9/16 (294) |
| 12″ | 12 (303) | 24 (610) | 19 (485) | 17 (432) | 15 (381) | 1-1/4 (30.5) | 12-Ø1 (25) | 13-9/16 (344.5) |
| 14″ | 13-3/4 (334) | 27 (686) | 21 (535) | 18-3/4 (476) | 16-1/4 (413) | 1-5/16 (33.5) | 12-Ø1-9/64 (29) | 14-27/32 (377) |
| 16″ | 15-1/4 (385) | 30 (762) | 23-1/2 (595) | 21-1/4 (540) | 18-1/2 (470) | 1-3/8 (35) | 16-Ø1-9/64 (29) | 16-15/32 (418) |
| 18″ | 17-1/4 (436) | 34 (864) | 25 (635) | 22-3/4 (578) | 21 (533) | 1-1/2 (38.5) | 16-Ø1-1/4 (32) | 18-7/32 (463) |
| 20″ | 19-1/4 (487) | 36 (914) | 27-1/2 (700) | 25 (635) | 23 (584) | 1-5/8 (41.5) | 20-Ø1-1/4 (32) | 19-3/4 (502) |
| 24″ | 23-1/4 (589) | 42 (1067) | 32 (815) | 29-1/2 (749.5) | 27-1/4 (692) | 1-27/32 (46.5) | 20-Ø1-3/8 (35) | 23-1/16 (586) |
| 26″ | 25 (633) | 45 (1143) | 34-1/4 (870) | 31-3/4 (806.5) | 29-1/2 (749) | 2-11/16 (68) | 24-Ø1-3/8 (35) | 24-21/32 (626) |
| 28″ | 27 (684) | 49 (1245) | 36-1/2 (927) | 34 (864) | 31-1/2 (800) | 2-13/16 (71) | 28-Ø1-3/8 (35) | 25-11/32 (644) |
| 30″ | 29 (735) | 51 (1295) | 38-3/4 (984) | 36 (914.5) | 33-3/4 (857) | 3 (75) | 28-Ø1-3/8 (35) | 28-11/32 (720) |
| 32″ | 30-11/16 (779) | 54 (1372) | 41-3/4 (1060) | 38-1/2 (978) | 36 (914) | 3-3/16 (81) | 28-Ø1-5/8 (41) | 29-7/32 (742) |
| 36″ | 34-7/16 (874) | 60 (1524) | 46 (1168) | 42-3/4 (1086) | 40-1/4 (1022) | 3-1/2 (90) | 32-Ø1-5/8 (41) | 33-1/32 (839) |
| 40″ | 38-7/16 (976) | 69 (1753) | 50-3/4 (1289) | 47-1/4 (1200) | 44-1/2 (1124) | 3-1/2 (90) | 36-Ø1-5/8 (41) | 36 (913.5) |
| 42″ | 40-5/32 (1020) | 73 (1855) | 53 (1346) | 49-1/2 (1257) | 47 (1194) | 3-13/16 (97) | 36-Ø1-5/8 (41) | 37-1/8 (943) |
| 48″ | 45-29/32 (1166) | 84 (2134) | 59-1/2 (1511) | 56 (1422) | 53-1/2 (1359) | 4-1/4 (108) | 44-Ø1-5/8 (41) | 43-3/16 (1097) |
| 56″ | 53-1/2 (1360) | 98 (2489) | 68-3/4 (1746) | 65 (1651) | 62 (1575) | 4-7/8 (124) | 48-Ø1-7/8 (48) | 51-1/4 (1302) |
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 2 (50) | 8-1/2 (216) | 6-1/2 (165) | 5 (127) | 3-5/8 (92) | 13/16 (21) | 8-Ø3/4 (19) | 3-21/32 (93) |
| 3″ | 3 (75) | 11-9/64 (283) | 8-1/4 (210) | 6-5/8 (168.5) | 5 (127) | 1-1/16 (27) | 8-Ø7/8 (22) | 4-21/32 (118.5) |
| 4″ | 4 (100) | 12 (305) | 10 (255) | 7-7/8 (200) | 6-7/8 (175) | 1-1/4 (30.5) | 8-Ø7/8 (22) | 5-21/32 (143.5) |
| 6″ | 6 (150) | 15-7/8 (403) | 12-1/2 (320) | 10-5/8 (270) | 8-1/2 (216) | 1-3/8 (35) | 12-Ø7/8 (22) | 8-3/16 (208) |
| 8″ | 8 (201) | 19-3/4 (502) | 15 (380) | 13 (330) | 10-5/8 (270) | 1-9/16 (40) | 12-Ø1 (25) | 9-3/4 (248) |
| 10″ | 10 (252) | 22-3/8 (568) | 17-1/2 (445) | 15-1/4 (387.5) | 12-3/4 (324) | 1-27/32 (46.5) | 16-Ø1-9/64 (29) | 11-9/16 (294) |
| 12″ | 12 (303) | 25-1/2 (648) | 20-1/2 (520) | 17-3/4 (451) | 15 (381) | 1-15/16 (49.5) | 16-Ø1-1/4 (32) | 13-9/16 (344.5) |
| 14″ | 13-3/4 (334) | 30 (762) | 23 (585) | 20-1/4 (514.5) | 16-1/4 (413) | 2-1/16 (52.5) | 20-Ø1-1/4 (32) | 14-27/32 (377) |
| 16″ | 15-1/4 (385) | 33 (838) | 25-1/2 (650) | 22-1/2 (571.5) | 18-1/2 (470) | 2-1/4 (56) | 20-Ø1-3/8 (35) | 16-15/32 (418) |
| 18″ | 17-1/4 (436) | 36 (914) | 28 (710) | 24-3/4 (628.5) | 21 (533) | 2-5/16 (59) | 24-Ø1-3/8 (35) | 18-7/32 (463) |
| 20″ | 19-1/4 (487) | 39 (991) | 30-1/2 (775) | 27 (686) | 23 (584) | 2-7/16 (62) | 24-Ø1-3/8 (35) | 19-3/4 (502) |
| 24″ | 23-1/4 (589) | 45 (1143) | 36 (915) | 32 (813) | 27-1/4 (692) | 2-11/16 (68.5) | 24-Ø1-5/8 (41) | 23-5/16 (592) |
| 26″ | 25 (633) | 49 (1245) | 38-1/4 (972) | 34-1/2 (876.5) | 29-1/2 (749) | 3 (79) | 28-Ø1-3/4 (45) | 24-15/16 (633) |
| 28″ | 27 (684) | 53 (1346) | 40-3/4 (1035) | 37 (940) | 31-1/2 (800) | 3-3/8 (86) | 28-Ø1-3/4 (45) | 26-3/4 (680) |
| 30″ | 29 (735) | 55 (1397) | 43 (1092) | 39-1/4 (997) | 33-3/4 (857) | 3-5/8 (92) | 28-Ø1-7/8 (48) | 28-3/4 (730) |
| 32″ | 30-11/16 (779) | 60 (1524) | 45-1/4 (1149) | 41-1/2 (1054) | 36 (914) | 3-7/8 (98) | 28-Ø2 (51) | 30-1/8 (765) |
| 36″ | 34-7/16 (874) | 68 (1727) | 50 (1270) | 46 (1168) | 40-1/4 (1022) | 4-1/8 (105) | 32-Ø2-1/8 (54) | 33-11/32 (847) |
| 40″ | 38-7/16 (976) | 77 (1956) | 48-3/4 (1238) | 45-1/2 (1156) | 42-3/4 (1086) | 4-1/2 (114) | 32-Ø1-3/4 (45) | 36-1/4 (921) |
| 42″ | 40-5/32 (1020) | 82 (2083) | 50-3/4 (1289) | 47-1/2 (1206.5) | 44-3/4 (1137) | 4-11/16 (119) | 32-Ø1-3/4 (45) | 36-7/8 (936) |
| 48″ | 45-29/32 (1166) | 85-1/2 (2170) | 57-3/4 (1467) | 54 (1372) | 51-1/4 (1302) | 5-9/32 (134) | 32-Ø2 (51) | 43-1/32 (1093) |
| 56″ | 53-1/2 (1360) | 108 (2743) | 67-1/4 (1708) | 63 (1600) | 59-3/4 (1518) | 6-1/16 (154) | 28-Ø2-3/8 (60) | 49-3/4 (1263) |
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 2 (50) | 11-1/2 (292) | 6-1/2 (165) | 5 (127) | 3-5/8 (92) | 1 (26) | 8-Ø3/4 (19) | 4-1/4 (107) |
| 3″ | 3 (75) | 14 (356) | 8-1/4 (210) | 6-5/8 (168.5) | 5 (127) | 1-1/4 (32) | 8-Ø7/8 (22) | 5-1/2 (140) |
| 4″ | 4 (100) | 17 (432) | 10-27/32 (275) | 8-1/2 (216) | 6-7/8 (175) | 1-1/2 (38.5) | 8-Ø1 (25) | 6-15/32 (164) |
| 6″ | 6 (150) | 22 (559) | 14 (355) | 11-1/2 (292) | 8-1/2 (216) | 1-7/8 (48) | 12-Ø1-9/64 (29) | 8-3/4 (222) |
| 8″ | 8 (201) | 26 (660) | 16-1/2 (420) | 13-3/4 (349) | 10-5/8 (270) | 2-3/16 (56) | 12-Ø1-1/4 (32) | 10-11/16 (271) |
| 10″ | 10 (252) | 31 (787) | 20 (510) | 17 (432) | 12-3/4 (324) | 2-1/2 (64) | 16-Ø1-3/8 (35) | 12-1/2 (317.5) |
| 12″ | 12 (303) | 33 (838) | 22 (560) | 19-1/4 (489) | 15 (381) | 2-5/8 (67) | 20-Ø1-3/8 (35) | 14-3/16 (360) |
| 14″ | 13-3/4 (334) | 35 (889) | 23-3/4 (605) | 20-3/4 (527) | 16-1/4 (413) | 2-3/4 (70) | 20-Ø1-1/2 (39) | 15-3/8 (390) |
| 16″ | 15-1/4 (385) | 39 (991) | 27 (685) | 23-3/4 (603) | 18-1/2 (470) | 3 (77) | 20-Ø1-5/8 (41) | 17-5/16 (440) |
| 18″ | 17-1/4 (436) | 43 (1092) | 29-1/4 (745) | 25-3/4 (654) | 21 (533) | 3-1/4 (83) | 20-Ø7/16 (44) | 19-3/32 (485) |
| 20″ | 19-1/4 (487) | 47 (1194) | 32 (815) | 28-1/2 (724) | 23 (584) | 3-1/2 (89) | 24-Ø7/16 (44) | 21 (533) |
| 24″ | 23-1/4 (589) | 55 (1397) | 37 (940) | 33 (838) | 27-1/4 (692) | 4 (102) | 24-Ø2 (51) | 24-1/4 (616) |
| 26″ | 25 (633) | 57 (1448) | 40 (1016) | 36 (914.5) | 29-1/2 (749) | 4-1/4 (108) | 28-Ø2 (51) | 25-11/32 (643.5) |
| 28″ | 27 (684) | 61 (1549) | 42-1/4 (1073) | 38 (965) | 31-1/2 (800) | 4-7/16 (112) | 28-Ø2-1/8 (54) | 26-3/16 (665) |
| 30″ | 29 (735) | 65 (1651) | 44-15/16 (1130) | 40-1/4 (1022) | 33-3/4 (857) | 4-1/2 (114) | 28-Ø2-1/8 (54) | 29-21/32 (753) |
| 32″ | 30-11/16 (779) | 70 (1778) | 47 (1194) | 42-1/2 (1079.5) | 36 (914) | 4-5/8 (118) | 28-Ø2-1/8 (54) | 30-1/4 (768) |
| 36″ | 34-7/16 (874) | 82 (2083) | 51-3/4 (1314) | 47 (1194) | 40-1/4 (1022) | 4-7/8 (124) | 28-Ø2-5/8 (67) | 33-29/32 (861) |
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 2 (50) | 14-1/2 (368) | 8-15/32 (215) | 6-1/2 (165) | 4-7/8 (124) | 1-1/2 (38.5) | 8-Ø1 (25) | 5 (126.5) |
| 3″ | 3 (75) | 15 (381) | 9-7/16 (240) | 7-1/2 (190.5) | 6-9/64 (156) | 1-1/2 (38.5) | 8-Ø1 (25) | 5-29/32 (150) |
| 4″ | 4 (100) | 18 (457) | 11-7/16 (290) | 9-1/4 (235) | 7-1/8 (181) | 1-3/4 (45) | 12-Ø1-1/4 (32) | 6-13/16 (172.5) |
| 6″ | 6 (150) | 24 (610) | 15 (380) | 12-1/2 (317.5) | 9-1/2 (241) | 2-1/4 (56) | 12-Ø1-1/4 (32) | 9-1/16 (230) |
| 8″ | 8 (201) | 29 (737) | 18-1/2 (470) | 15-1/2 (393.5) | 12-1/8 (308) | 2-1/2 (64) | 16-Ø1-1/2 (39) | 11-1/4 (285) |
| 10″ | 10 (252) | 33 (838) | 21-1/2 (545) | 18-1/2 (470) | 14-1/4 (362) | 2-3/4 (70) | 20-Ø1-1/2 (39) | 13 (330) |
| 12″ | 12 (303) | 38 (965) | 24 (610) | 21 (533.5) | 16-1/2 (419) | 3-1/8 (79.5) | 20-Ø1-1/2 (39) | 14-13/32 (366) |
| 14″ | 12-11/16 (322) | 40-1/2 (1029) | 25-3/16 (640) | 22 (559) | 18-3/8 (467) | 3-3/8 (86) | 20-Ø1-21/32 (42) | 16-11/32 (415) |
| 16″ | 14-11/16 (373) | 44-1/2 (1130) | 27-3/4 (705) | 24-1/4 (616) | 18-1/2 (524) | 3-1/2 (89) | 20-Ø1-3/4 (45) | 17-13/16 (452) |
| 18″ | 16-21/32 (423) | 48 (1219) | 31 (785) | 27 (686) | 20-5/8 (594) | 4 (102) | 20-Ø2 (51) | 19-3/4 (501) |
| 20″ | 18-9/16 (471) | 52 (1321) | 33-11/16 (855) | 29-1/2 (749.5) | 25-1/2 (648) | 4-1/4 (108) | 20-Ø2-1/8 (54) | 21-13/32 (544) |
| 24″ | 22-7/16 (570) | 61 (1549) | 41 (1040) | 35-1/2 (901.5) | 30-13/32 (772) | 5-1/2 (140) | 20-Ø2-5/8 (67) | 25-7/8 (657) |
| 26″ | 24-5/16 (617) | 65 (1651) | 42-3/4 (1086) | 37-1/2 (952.5) | 29-1/2 (749) | 4-7/8 (124) | 20-Ø2-7/8 (73) | 27-9/16 (700) |
| 28″ | 26-3/16 (665) | 69 (1753) | 46 (1168) | 40-1/4 (1022) | 31-1/2 (800) | 5-5/8 (143) | 20-Ø3 (79) | 28-5/8 (727) |
| 30″ | 28-1/3 (712) | 74 (1880) | 48-1/2 (1232) | 42-3/4 (1086) | 33-3/4 (857) | 5-7/8 (149) | 20-Ø3 (79) | 29-15/16 (760) |
| 32″ | 29-15/16 (760) | 80 (2032) | 51-3/4 (1314) | 45-1/2 (1156) | 36 (914) | 6-1/4 (159) | 20-Ø3-3/8 (86) | 31-5/16 (795) |
| 36″ | 33-21/32 (855) | 90 (2286) | 57-1/2 (1461) | 50-3/4 (1289) | 40-1/4 (1022) | 6-3/4 (172) | 20-Ø3-5/8 (92) | 34-7/8 (886) |
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 2 (50) | 14-1/2 (368) | 8-15/32 (215) | 6-1/2 (165) | 4-7/8 (124) | 1-1/2 (38.5) | 8-Ø1 (25) | 5 (126.5) |
| 3″ | 3 (75) | 18-1/2 (470) | 10-7/16 (265) | 8 (203.2) | 6-5/8 (168) | 1-7/8 (48) | 8-Ø1-1/4 (32) | 6-1/2 (166) |
| 4″ | 3-15/16 (100) | 21-1/2 (546) | 12-13/64 (310) | 9-1/2 (241.3) | 7-5/8 (194) | 2-1/8 (54) | 8-Ø1-3/8 (35) | 8-5/8 (219) |
| 6″ | 5-11/16 (144) | 27-3/4 (705) | 15-9/16 (395) | 12-1/2 (317.5) | 9-3/4 (248) | 3-1/4 (83) | 12-Ø1-1/2 (39) | 10-1/2 (268) |
| 8″ | 7-1/2 (192) | 32-3/4 (832) | 19-3/32 (485) | 15-1/2 (393.7) | 12-1/2 (318) | 3-5/8 (92) | 12-Ø1-3/4 (45) | 11-15/16 (303) |
| 10″ | 9-13/32 (239) | 39 (991) | 23 (585) | 19 (482.6) | 14-5/8 (371) | 4-1/4 (108) | 12-Ø2 (51) | 14-3/32 (358) |
| 12″ | 11-5/16 (287) | 44-1/2 (1130) | 26-9/16 (675) | 22-1/2 (571.5) | 17-1/4 (438) | 4-7/8 (124) | 16-Ø2-1/8 (54) | 16-5/16 (414) |
| 14″ | 12-13/32 (315) | 49-1/2 (1257) | 29-1/2 (750) | 25 (635) | 19-1/4 (489) | 5-9/32 (134) | 16-Ø2-3/8 (60) | 18-1/2 (471) |
| 16″ | 14-11/64 (360) | 54-1/2 (1384) | 32-1/2 (825) | 27-3/4 (704.8) | 21-1/2 (546) | 5-3/4 (146.5) | 16-Ø2-5/8 (67) | 19-19/32 (498) |
| 18″ | 16 (406) | 60-1/2 (1537) | 36 (915) | 30-1/2 (774.7) | 24-1/8 (613) | 6-3/8 (162) | 16-Ø2-7/8 (73) | 22-7/16 (570) |
| 20″ | 17-7/8 (454) | 65-1/2 (1664) | 38-25/32 (985) | 32-3/4 (831.8) | 26-1/2 (673) | 7 (178) | 16-Ø3 (79) | 24 (611) |
| Sizes | d | L | D | D1 | D2 | D3 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Pitch Diameter | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 1-21/32 (42) | 17-7/8 (454) | 9-1/4 (235) | 6-3/4 (171.4) | 5-1/4 (133) | 4 (101.6) | 2 (51) | 8-Ø1-9/64 (29) | |
| 3″ | 2-7/16 (62) | 23 (584) | 12 (305) | 9 (228.6) | 6-5/8 (168) | 5 (127) | 2-5/8 (67) | 8-Ø1-3/8 (35) | |
| 4″ | 3-7/16 (87) | 26-7/8 (683) | 14 (355) | 10-3/4 (273) | 8 (203) | 6-3/16 (157.18) | 3 (76.5) | 8-Ø1-21/32 (42) | |
| 6″ | 5-5/32 (131) | 36-1/2 (927) | 19-3/32 (485) | 14-1/2 (368.3) | 11 (279) | 9 (228.6) | 4-1/4 (108) | 8-Ø2-1/8 (54) | 12-3/64 (306) |
| 8″ | 7-3/64 (179) | 40-7/8 (1038) | 21-21/32 (550) | 17-1/4 (438.2) | 13-3/8 (340) | 11 (279.4) | 5 (127) | 12-Ø2-1/8 (54) | 14-7/32 (361) |
| 10″ | 8-25/32 (223) | 50-7/8 (1292) | 26-9/16 (675) | 21-1/4 (539.8) | 16-3/4 (425) | 13-1/2 (342.9) | 6-17/32 (166) | 12-Ø2-5/8 (67) | 16-3/4 (426) |
| 12″ | 10-7/16 (265) | 56-7/8 (1445) | 29-15/16 (760) | 24-3/8 (619.1) | 19-1/2 (495) | 16 (406.4) | 7-9/32 (185) | 12-Ø2-29/32 (74) | 18-27/32 (479) |
