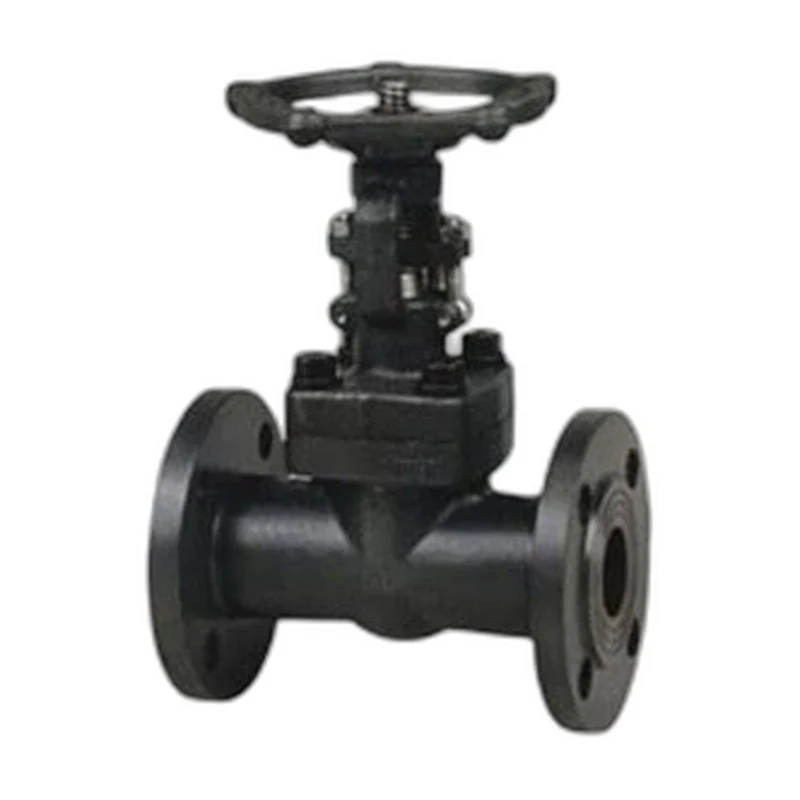

Forged Steel Flanged and BW Gate Valves
A forged-steel gate valve offered with flanged or butt-weld ends for robust on/off isolation across refinery and pipeline service.
The Forged Steel Flanged and BW Gate Valve provides a choice of raised-face flanged or butt-weld end connections to suit either bolted or welded piping systems. Forged from carbon, low-temperature or stainless steel, it delivers strong, leak-tight on/off isolation through a full-bore opening using a flexible wedge and OS&Y rising stem. Like every gate valve it is designed for fully-open or fully-closed duty rather than throttling, and the butt-weld option is favoured for high-integrity, fugitive-emission-controlled lines.
Specifications
Key Features
- OS&Y rising stem with visual position indication
- Bolted bonnet construction for maintainability
- Flexible wedge for reliable bidirectional sealing
- Full-bore through-conduit flow for minimal pressure drop
- Low-fugitive-emission packing and gasket sets available
Options
- NACE MR0175 compliance
- Bevel gear operator
- Actuation-ready ISO mounting pads
- Thermal relief (DTR) systems
- Double-lead stem for faster run time
Standards & Certifications
- API 600 / API 602 / API 603
- ASME B16.34
- NACE MR0175 (on request)
- Low-fugitive-emission packing available
