Purple Valves
PRPLZ063

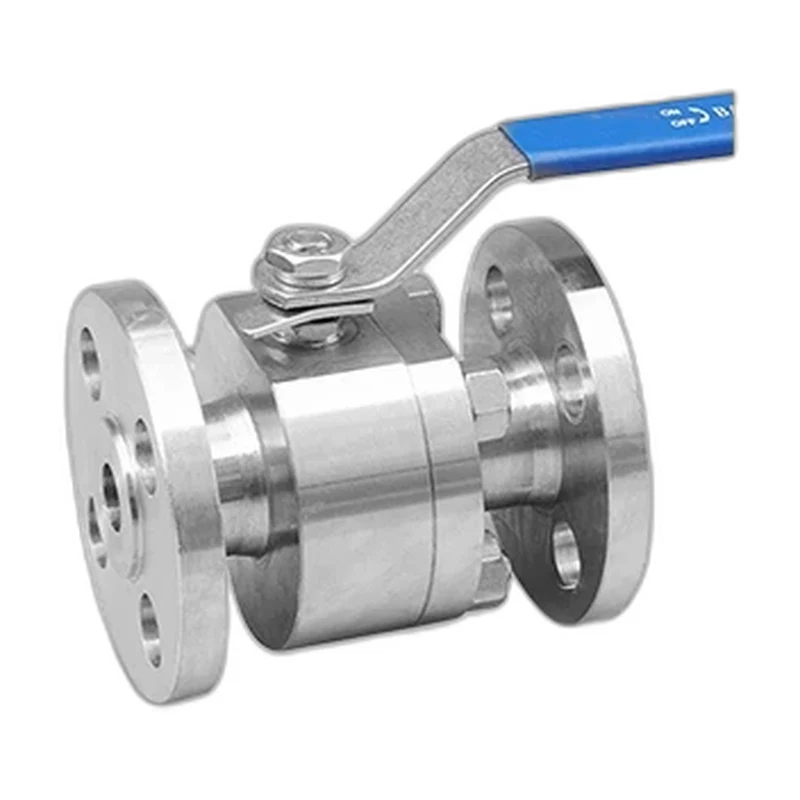

Forged Steel Floating Ball Valve
A forged steel floating ball valve, A105/F304/F316, 1/2 inch to 8 inch and ANSI Class 150 to 2500 for general and process service.
Size1/2 inch to 8 inchPressureANSI Class 150 to 2500PortFull Port / Reduced PortBodyTwo Piece
The Forged Steel Floating Ball Valve uses a forged A105, F304 or F316 body for strength and corrosion resistance, with a floating ball for reliable bubble-tight isolation. Suited to general service, air, water and oil and gas, it seals against PTFE or RPTFE seats with stainless trim. Built to API 6D and ASME B16.34, it is available from 1/2 inch to 8 inch across ANSI Class 150 to 2500 in full or reduced port.
Specifications
Size Range
1/2 inch to 8 inch
Pressure Rating
ANSI Class 150 to 2500
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Flanged, ASME B16.5 / Threaded NPT
Body Material
A105, F304, F316 (forged steel)
Ball / Disc / Wedge Material
SS304 / SS316
Seat Material
PTFE / RPTFE
Stem Material
SS304 / SS316
Port Type
Full Port / Reduced Port
Body Style
Two Piece
Operation
Lever, Gearbox, Electric, Pneumatic
Applications
General Service, Air, Water, Oil and Gas
Design Standard
ASME B16.34, ASME B16.5, API 6D
Testing Standard
MSS SP-72, API 598
Face to Face Standard
ASME B16.10
Key Features
- Forged steel body for strength
- Floating ball for tight shut-off
- PTFE / RPTFE seats
- Flanged or threaded ends
- Full or reduced port
Options
- Body: A105, F304 or F316
- Seat: PTFE or RPTFE
- Ends: flanged or threaded
Standards & Certifications
- API 6D
- ASME B16.34
- API 598
