Purple Valves
PRPLZ064

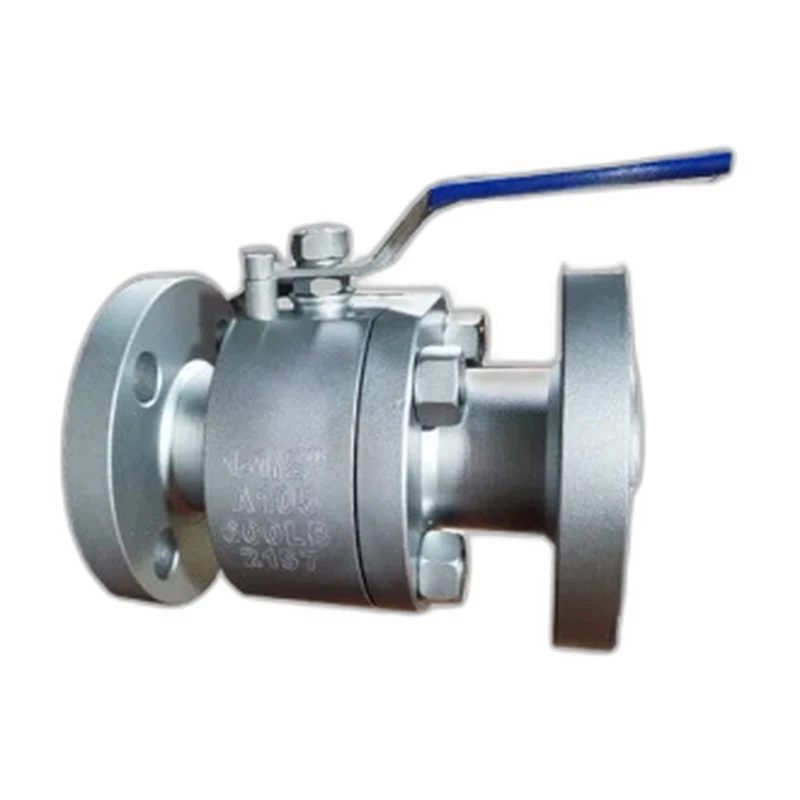

Forged Steel Floating Flanged Ball Valve
A forged steel floating ball valve with flanged ends, carbon or stainless, 1/2 inch to 8 inch and ANSI Class 150 to 2500.
Size1/2 inch to 8 inchPressureANSI Class 150 to 2500PortFull PortBodyTwo Piece
The Forged Steel Floating Flanged Ball Valve combines a forged carbon or stainless steel body with flanged ASME B16.5 ends for robust, in-line isolation. The floating ball delivers tight shut-off against RPTFE, Devlon or PEEK seats across general service, air, water and oil and gas duties. Built to API 6D and ASME B16.34, it is available from 1/2 inch to 8 inch across ANSI Class 150 to 2500 in full port.
Specifications
Size Range
1/2 inch to 8 inch
Pressure Rating
ANSI Class 150 to 2500
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Flanged, ASME B16.5 RF
Body Material
Forged carbon and stainless steel
Ball / Disc / Wedge Material
A182 F316 / A182 F304
Seat Material
RPTFE / Devlon / PEEK
Stem Material
A182 F316 / A182 F304
Port Type
Full Port
Body Style
Two Piece
Operation
Lever, Gearbox, Electric, Pneumatic
Applications
General Service, Air, Water, Oil and Gas
Design Standard
ASME B16.34, ASME B16.5, API 6D
Testing Standard
MSS SP-72, API 598
Face to Face Standard
ASME B16.10
Key Features
- Forged steel body for strength
- Flanged ASME B16.5 ends
- Floating ball for tight shut-off
- RPTFE / Devlon / PEEK seats
- Full bore flow
Options
- Body: forged carbon or stainless steel
- Seat: RPTFE, Devlon or PEEK
- Operation: lever, gearbox, electric or pneumatic
Standards & Certifications
- API 6D
- ASME B16.34
- MSS SP-72
