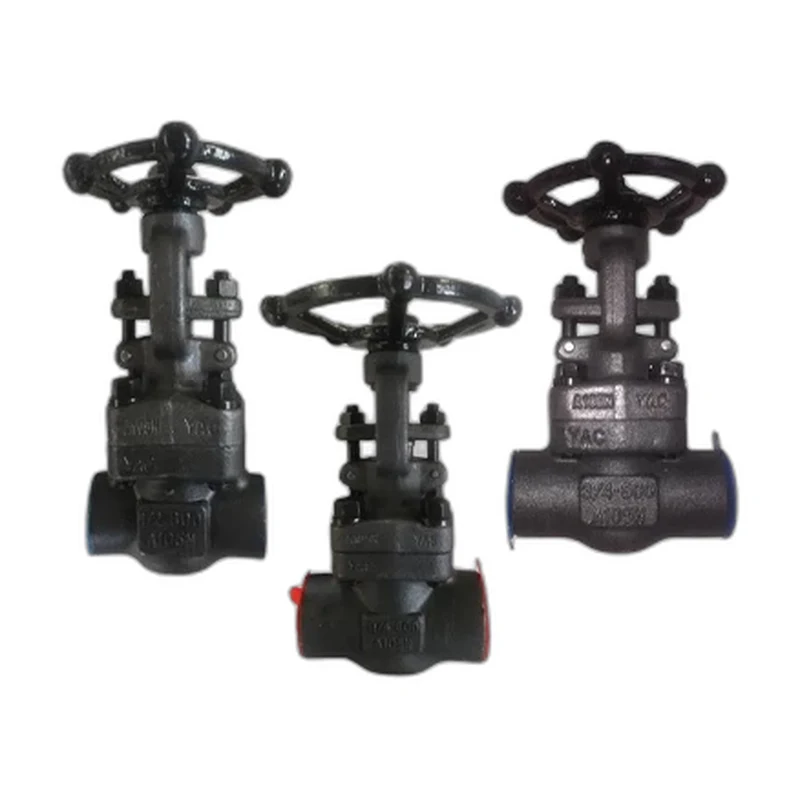

Forged Steel Gate Valve
A forged-steel gate valve providing strong, leak-tight on/off isolation for general high-pressure oil, gas and process service.
The Forged Steel Gate Valve is the workhorse isolation valve of the forged range, machined from carbon, low-temperature or stainless forgings for high strength and tight grain structure. It is designed solely for on/off duty, sealing a full-bore opening with a flexible wedge and OS&Y rising stem to give drop-tight bidirectional shut-off with minimal pressure drop. Forged construction makes it well suited to the elevated pressures and temperatures of oil, gas, refining and power applications, and it should never be used to throttle flow.
Specifications
Key Features
- OS&Y rising stem with visual position indication
- Bolted bonnet construction for maintainability
- Flexible wedge for reliable bidirectional sealing
- Full-bore through-conduit flow for minimal pressure drop
- Low-fugitive-emission packing and gasket sets available
Options
- NACE MR0175 compliance
- Bevel gear operator
- Actuation-ready ISO mounting pads
- Thermal relief (DTR) systems
- Double-lead stem for faster run time
Standards & Certifications
- API 600 / API 602 / API 603
- ASME B16.34
- NACE MR0175 (on request)
- Low-fugitive-emission packing available
