PRPLZ085

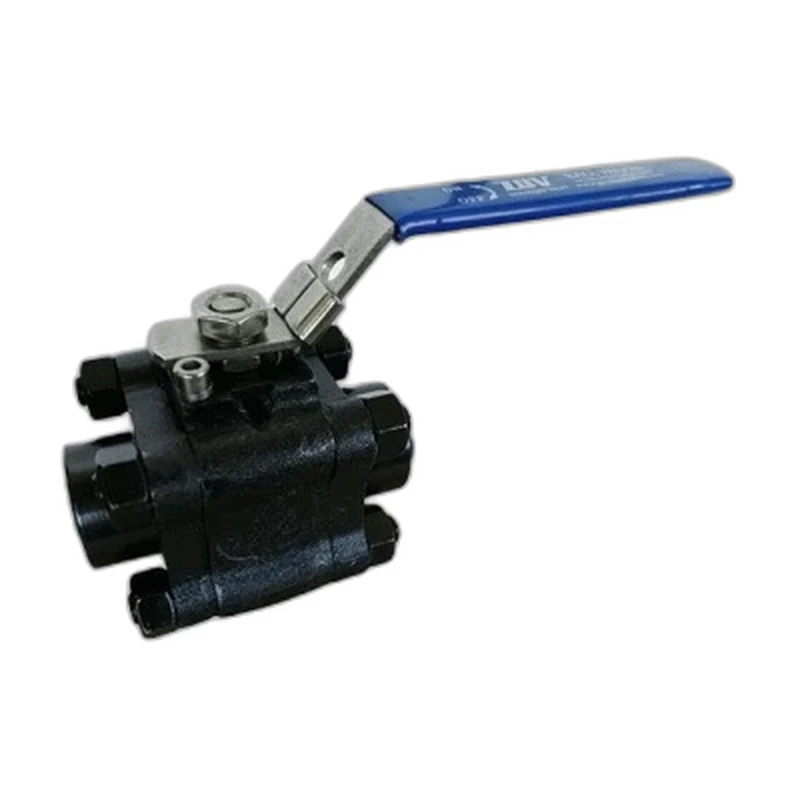

Forged Steel Socket Welded Ball Valve 800LB
A three-piece forged steel Class 800LB socket-weld ball valve for high-pressure welded and threaded service.
Size1/4" to 4"PressureANSI Class 800 / 2000 PSI (WOG)PortFull Port / Reduced PortBodyThree Piece
This three-piece forged steel ball valve is rated Class 800LB / 2000 PSI WOG and built primarily from ASTM A105 with A182 F316 and F304 stainless options. Available from 1/4 inch to 4 inch with socket-weld end connections, it offers full or reduced port options, RPTFE seats and an A182 F316 ball and stem. The three-piece bolted body simplifies in-line maintenance for air, water, oil and gas systems.
Specifications
Size Range
1/4" to 4"
Pressure Rating
ANSI Class 800 / 2000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Socket Weld
Body Material
ASTM A105 / A182 F316 / A182 F304
Ball / Disc / Wedge Material
A182 F316 stainless
Seat Material
RPTFE
Stem Material
A182 F316 stainless
Port Type
Full Port / Reduced Port
Body Style
Three Piece
Operation
Manual lever / wrench
Applications
General service, air, water, oil and gas
Design Standard
ASME B16.34, API 607, API 608
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Three-piece bolted body for in-line servicing
- Socket-weld end connections
- Forged steel construction
- Class 800LB rating
- Full or reduced port options
Options
- Socket weld or threaded ends
- Full or reduced port
- Carbon or stainless body
Standards & Certifications
- ASME B16.34
- API 607 fire-safe
- API 608
- MSS SP-72
- API 598
