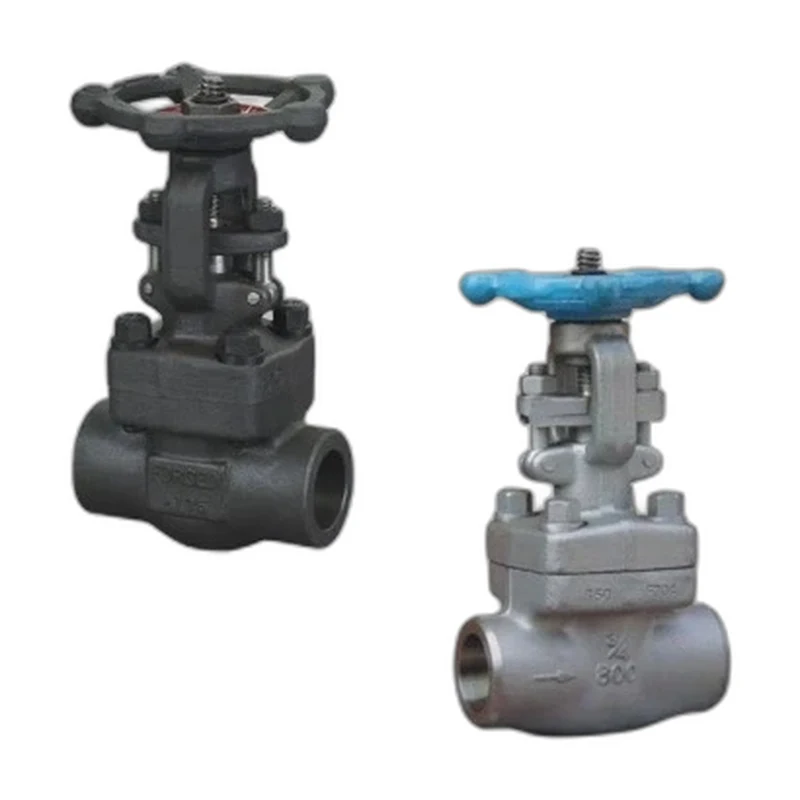

Forged Steel Threaded and Socket Welded Gate Valve
A compact forged-steel gate valve with threaded or socket-weld ends for on/off isolation of small-bore high-pressure lines.
The Forged Steel Threaded and Socket Welded Gate Valve is a compact, small-bore isolation valve offered with NPT threaded or socket-weld ends to match instrument, drain, vent and auxiliary piping. Forged for high pressure integrity, it provides positive on/off shut-off through a full-bore opening using a flexible or solid wedge and OS&Y rising stem, and is not intended for flow control. The threaded and socket-weld connections make it a natural fit for the high-pressure, small-diameter lines common to refineries and power plants.
Specifications
Key Features
- OS&Y rising stem with visual position indication
- Bolted bonnet construction for maintainability
- Flexible wedge for reliable bidirectional sealing
- Full-bore through-conduit flow for minimal pressure drop
- Low-fugitive-emission packing and gasket sets available
Options
- NACE MR0175 compliance
- Bevel gear operator
- Actuation-ready ISO mounting pads
- Thermal relief (DTR) systems
- Double-lead stem for faster run time
Standards & Certifications
- API 600 / API 602 / API 603
- ASME B16.34
- NACE MR0175 (on request)
- Low-fugitive-emission packing available
Dimensions
| Brand | ZQV |
| Type | Forged Gate Valve&Globe Valve |
| Working Pressure | 1500lb 900lb 800lb |
| Working Temperature | -70℃ -420℃ |
| End Connection Type | Flange,SW,BW |
| Size | 1/4″,3/8″,1/2″,3/4″-2″ |
| Packing | PTFE,Graphite,PPL |
| Material | A105N,WB36,F316,F316H,F22,F51,F91,F92 etc |
