Purple Valves
PRPFL077

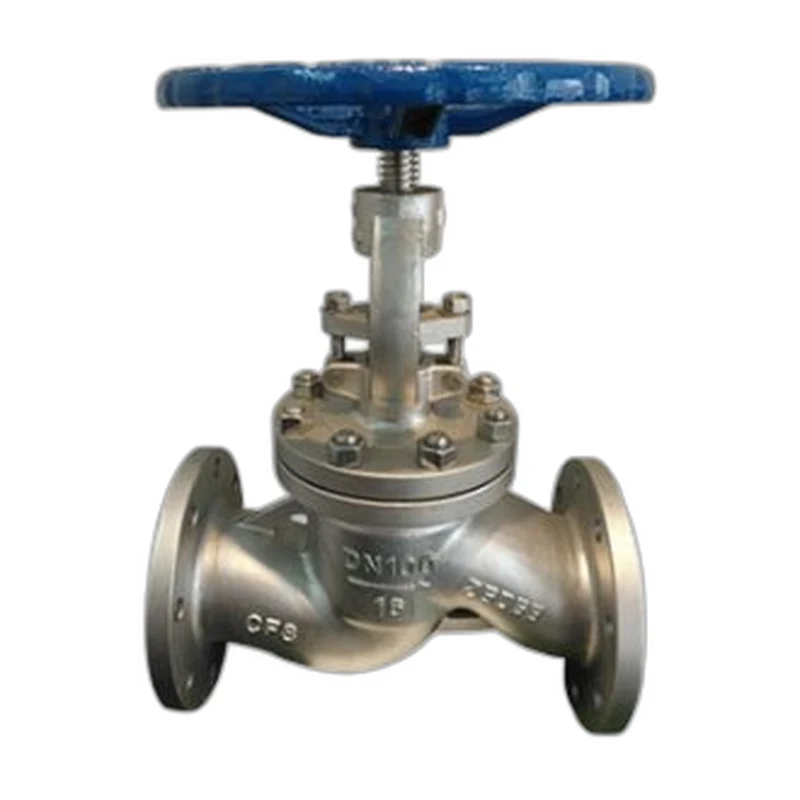

Globe Valve DIN PN16 DN100 (CF8 High Pressure)
A DIN-pattern cast/stainless steel plug-type globe valve for high-pressure shut-off and throttling up to PN100.
SizeDN40-DN300PressurePN16-PN100BodyGlobe (plug type), rising stem
CategoriesGlobe Valves
This DIN globe valve provides precise throttling and tight shut-off in high-pressure steam, water and process service. Built with a rising-stem plug-type disc and offered with a bolted cover or pressure-seal bonnet, it is available in carbon and stainless steel across pressure ratings to PN100 and beyond. Handwheel or gear operation suits a range of pipe sizes, making it a versatile flanged shut-off valve for industrial and power applications.
Specifications
Size Range
DN40-DN300
Pressure Rating
PN16-PN100
End Connections
Flanged (DIN)
Body Material
Carbon and stainless steel (1.0619, 1.1138, 1.4306, 1.4308, 1.4408, 1.7706)
Body Style
Globe (plug type), rising stem
Operation
Manual (handwheel) or gear operated
Applications
Suited to high-pressure steam and water systems, oil and gas, petrochemical and power plant throttling and isolation duties.
Design Standard
DIN
Key Features
- Plug-type globe disc for precise control
- Rising stem
- Bolted cover or pressure-seal bonnet
- Carbon and stainless steel options
- High-pressure rating to PN100
Options
- Handwheel
- Gear operator
- Pressure-seal bonnet
