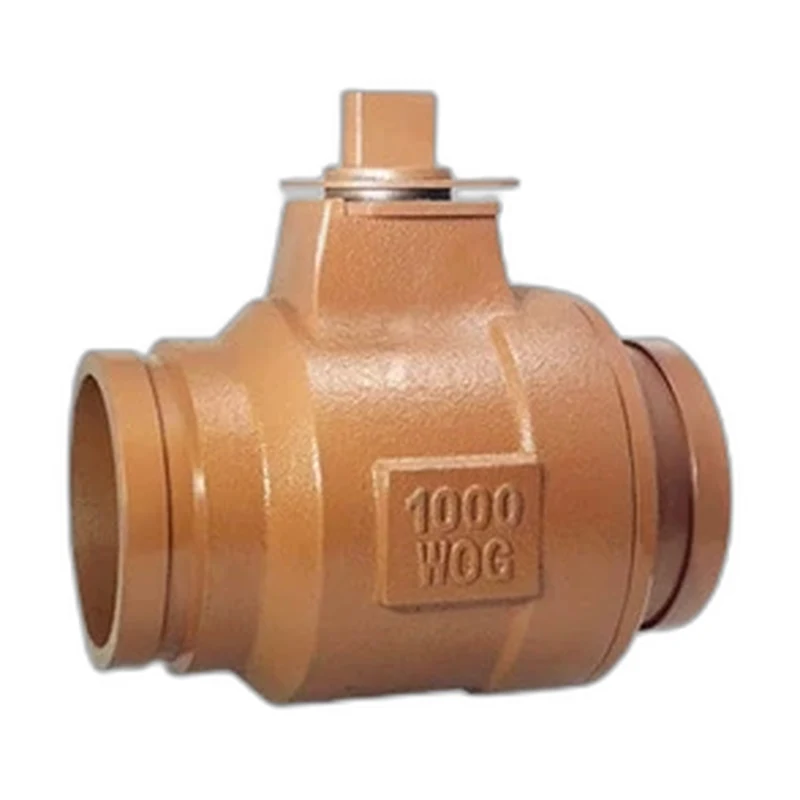

Grooved End Oilfield Ball Valves

Grooved End Oilfield Ball Valves engineered for reliable shut-off and isolation in general service, air, water, oil & gas applications.

Size2" to 6"Pressure1000 PSI (WOG)PortReduced PortBodyTwo Piece
Request a QuoteFull Product Brochure (PDF)
CategoriesBall ValvesOilfield ValvesGrooved End Ball ValvesGrooved Oilfield Valves
Overview

The Grooved End Oilfield Ball Valves from ZQV is a two piece ball valve built for dependable isolation across a size range of 2" to 6". Constructed with Ductile Iron (A395) body materials and a 316 Stainless Steel (A182 F316) ball and 316 Stainless Steel (A182 F316) stem, it delivers durable performance with a RPTFE seat for tight sealing. Rated to 1000 PSI (WOG) and suitable for service from -46°C to 232°C (-50°F to 450°F), the valve features grooved end (awwa c606) connections and a reduced port bore. Manufactured to ASME B16.34, MSS SP-110 with testing per MSS SP-72, API 598, it is well suited to general service, air, water, and oil and gas duties.

Technical Detail

Specifications

Size Range
2" to 6"
Pressure Rating
1000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Grooved End (AWWA C606)
Body Material
Ductile Iron (A395)
Ball / Disc / Wedge Material
316 Stainless Steel (A182 F316)
Seat Material
RPTFE
Stem Material
316 Stainless Steel (A182 F316)
Port Type
Reduced Port
Body Style
Two Piece
Operation
Lever, Gearbox
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
At a Glance

Key Features

  • Reduced Port bore for optimised flow
  • RPTFE seat for reliable bi-directional sealing
  • Ductile Iron (A395) body construction
  • Blowout-proof stem design
  • Designed and tested to recognised industry standards

Options

  • Lever or gearbox operation
  • Pneumatic or electric actuation available
  • Alternative seat materials on request

Standards & Certifications

  • ASME B16.34 / MSS SP-110
  • Tested per MSS SP-72, API 598
Reference

Dimensions

Iiem Part name Material
1 Body ASTM A536 Ductile Iron
2 Cap ASTM A536 Ductile Iron
3 Ball ASTM 304SS
4 Seat PTFE
5 Stem ASTM 304SS
6 O-Ring Buna-N
7 Thrust washer PTFE
8 Packing PTFE
9 Gland 304SS
10 Handle 201SS
11 Spring washer 201SS
12 Nut A2-70
13 Locking Device 201SS
NPS d L OD C A B W H
2″ 38 140 60.3 57.2 15.88 8.74 185 96
3″ 63 176 88.9 84.9 15.88 8.74 265 137
4″ 75 240 114.3 110 15.88 10 265 154
