Purple Valves
PRPFL078

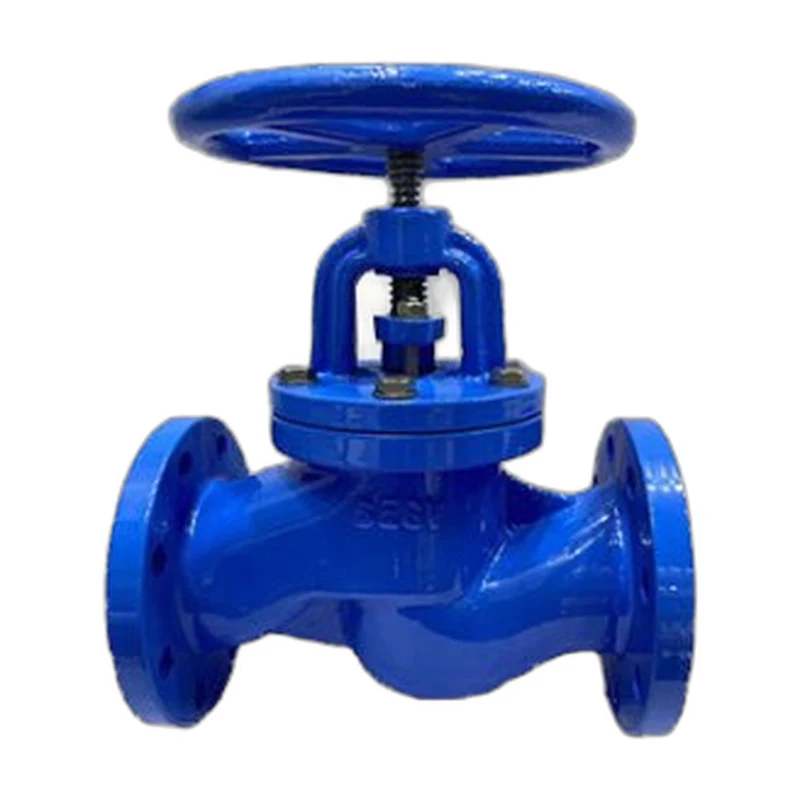

GV01 DIN3356 F1 Globe Valve PN16
A DIN3356 cast iron globe valve rated PN16 with bolted bonnet and graphite packing for reliable throttling and isolation.
SizeDN40-DN300PressurePN16BodyBolted bonnet globe
CategoriesGlobe Valves
The GV01 globe valve is designed to DIN3356 with DIN3202 F1 face-to-face dimensions, giving a dependable solution for both throttling and isolation in water and utility piping. Its bolted bonnet, clockwise-closing stem and graphite packing provide secure sealing and steady control, with a maximum service temperature around 178 degrees Celsius. The ductile iron body and brass or stainless seat rings combine durability with smooth flow regulation across the DN40 to DN300 range.
Specifications
Size Range
DN40-DN300
Pressure Rating
PN16
Temperature Range
Max 178 C
End Connections
Flanged (EN1092-2 PN16)
Body Material
Ductile iron GGG50
Seat Material
Brass / stainless steel
Stem Material
SS410
Body Style
Bolted bonnet globe
Operation
Manual (handwheel)
Applications
Water and utility throttling and isolation, building services, and general industrial process control.
Design Standard
DIN3356
Testing Standard
ISO 5208
Face to Face Standard
DIN3202 F1
Key Features
- Bolted bonnet
- Clockwise closing direction
- Graphite packing
- Max temperature 178 C
