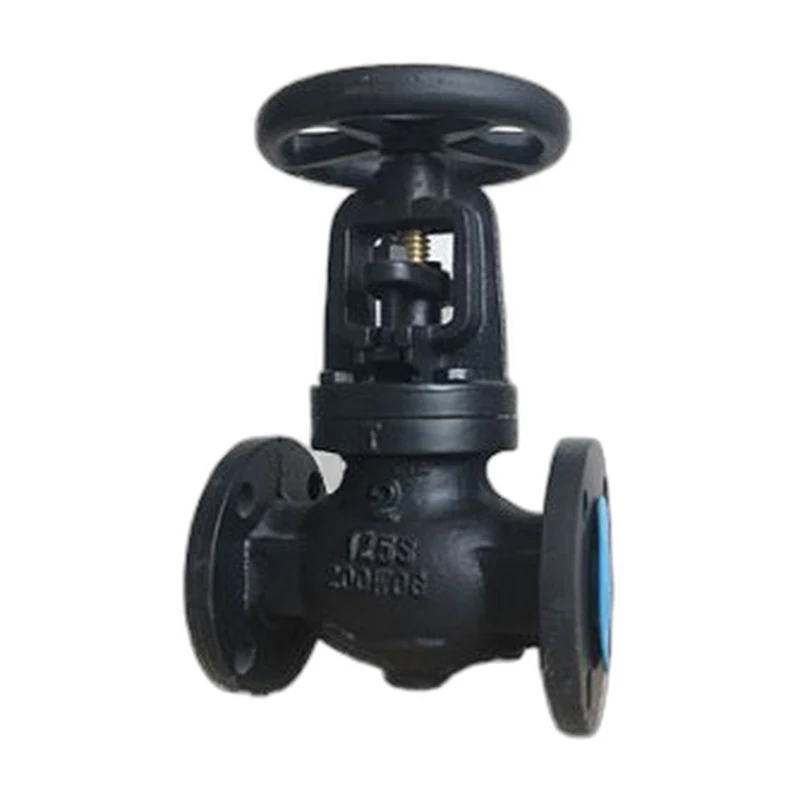

MSS SP-85 Globe Valve 125LB (GV02)
Ductile iron MSS SP-85 globe valve rated Class 125 for throttling and isolation in water and general process lines.
SizeDN40-DN300PressureClass 125BodyGlobe
CategoriesGlobe Valves
The GV02 MSS SP-85 Globe Valve is a ductile iron, bolted-bonnet globe valve designed to MSS SP-85 in Class 125/150. Its globe pattern gives smooth throttling and tight shut-off, with brass or stainless seat rings, an SS420 stem and graphite packing rated to 178 degrees C, covering DN40 to DN300 for water, steam and general industrial service.
Specifications
Size Range
DN40-DN300
Pressure Rating
Class 125
Temperature Range
Up to 178 C
End Connections
Flanged (ANSI B16.1)
Body Material
Ductile Iron GGG50
Seat Material
Brass / Stainless Steel
Stem Material
SS420
Body Style
Globe
Operation
Handwheel
Applications
Water, steam and general industrial throttling and isolation.
Design Standard
MSS SP-85
Face to Face Standard
ANSI B16.10
Key Features
- Bolted bonnet
- Graphite packing
- Brass/stainless seat rings
- Max temperature 178 C
- Seat test 13.8bar / shell test 24.1bar
Options
- Sizes DN40 to DN300
