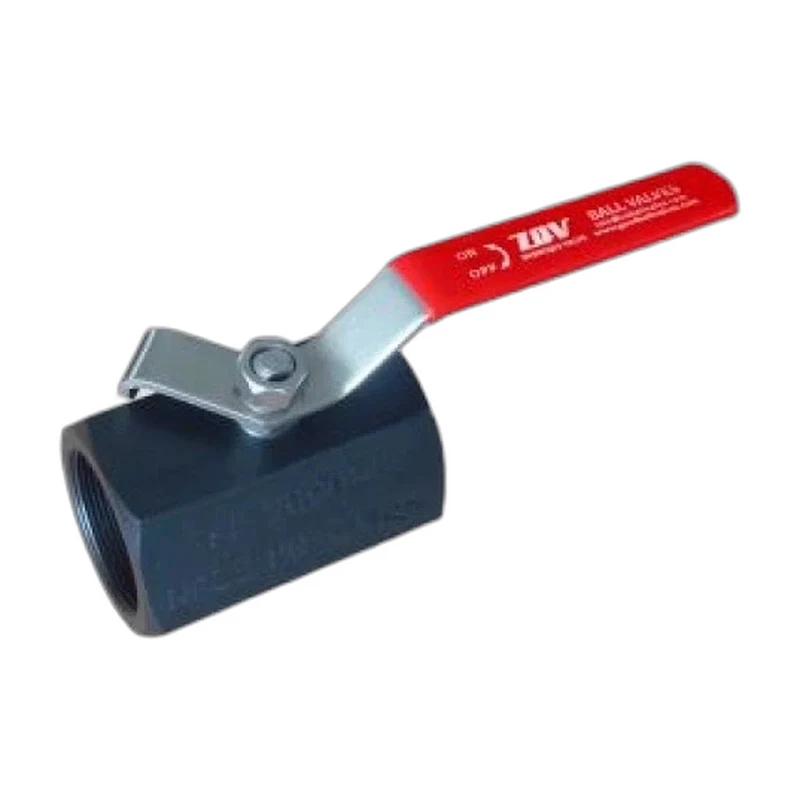

Hex Bar Stock Standard Port Threaded Ball Valve
A hex bar-stock standard-port threaded ball valve machined from solid A105 for compact high-pressure duty.
This two piece ZQV ball valve is engineered for high-pressure isolation across a 1/4" to 2" size range, with a maximum allowable operating pressure of 2000 PSI WOG. The ASTM A105 carbon steel (hex bar stock) body carries an ASTM A182 F316 stainless steel ball and ASTM A182 F316 stainless steel stem, sealing against Reinforced PTFE (RPTFE) seats for reliable, low-torque quarter-turn operation. Threaded NPT (ASME B1.20.1) connections and a standard / reduced port bore make it well suited to general service, air, water and oil & gas duty.
Specifications
Key Features
- Two Piece body construction
- Quarter-turn lever operation
- Rated to 2000 PSI WOG
- ASTM A182 F316 stainless steel ball with Reinforced PTFE (RPTFE) seats
- Threaded NPT (ASME B1.20.1)
Options
- Full port or reduced port
- Multiple body material options
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110
- Tested to MSS SP-72, API 598
