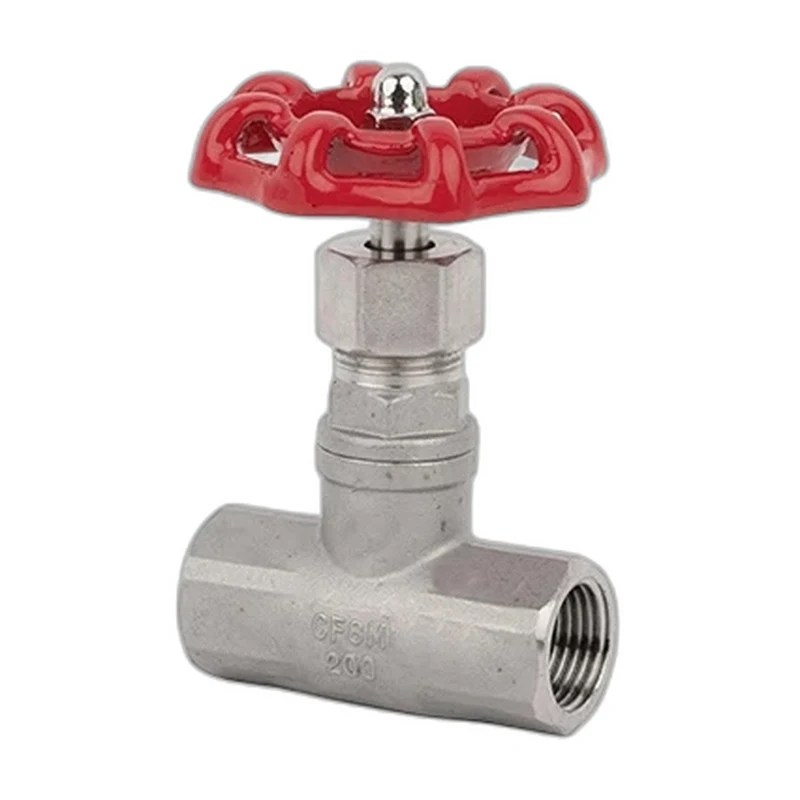

Investment Casting Globe Valve
An investment-cast globe valve with smooth flow passages for precise throttling and reliable shut-off.
The investment casting globe valve is produced by the lost-wax process, giving close dimensional tolerances and smooth internal flow passages that reduce turbulence and erosion. The disc seats onto a horizontal seat to deliver the precise throttling and dependable shut-off that define globe valves. Investment casting allows complex body shapes and a fine surface finish in stainless and alloy grades, making the valve a clean, corrosion-resistant choice for chemical, food and instrument service. As with all globe valves it accepts a higher pressure drop than a gate valve in exchange for excellent flow regulation.
Specifications
Key Features
- Disc-on-seat design for precise throttling and flow regulation
- Tight, bubble-class shut-off
- Hardfaced (Stellite) trim for long seat life
- Rising stem with clear position indication
- Back-seat protects the gland for in-service repacking
- Wide choice of body, trim and end-connection materials
Options
- Gear or actuator operation (electric / pneumatic)
- NACE compliant trim
- Extended bonnet for hot or cold service
- Lockable handwheel
- Special alloy materials
Standards & Certifications
- API 598 tested
- NACE MR0175 compliant (optional)
- CE / PED on request
- ISO 9001 quality system
