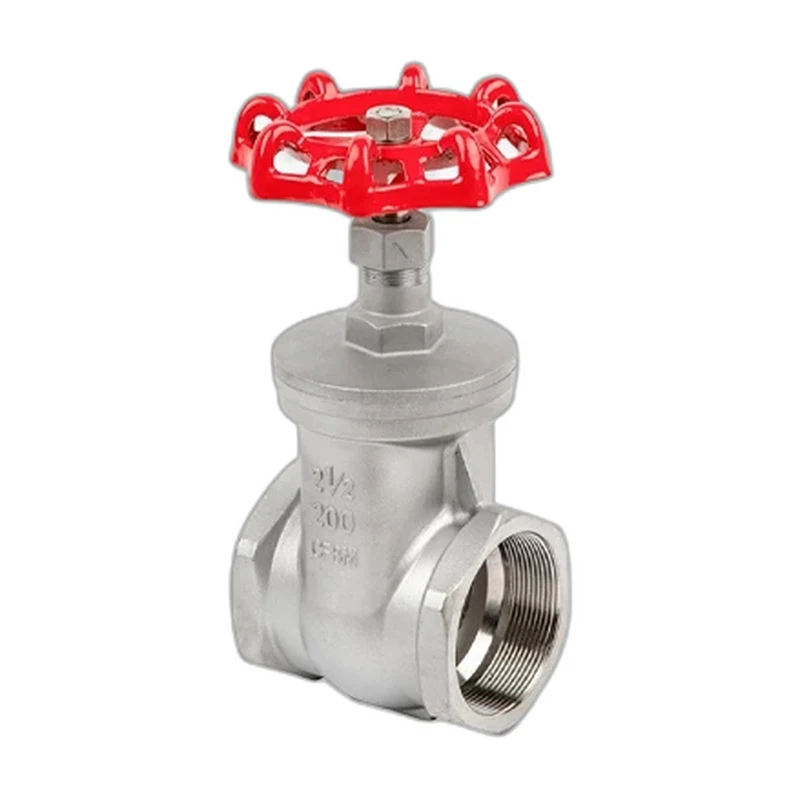

Investment Casting Screwed Gate Valve
An investment-cast screwed gate valve giving precise, smooth-finished on/off isolation for small-bore threaded piping.
The Investment Casting Screwed Gate Valve is produced by the lost-wax investment-casting process, yielding precise dimensions and a smooth internal finish that reduces turbulence and improves sealing. Fitted with screwed (threaded) ends, it isolates small-bore lines with a rising stem and wedge sealing a full-bore opening, and is intended only for fully-open or fully-closed operation. The investment-cast body, typically in stainless or carbon steel, suits utility, instrument and light-process service where a clean, accurate casting is preferred over a forging.
Specifications
Key Features
- OS&Y rising stem with visual position indication
- Bolted bonnet construction for maintainability
- Flexible wedge for reliable bidirectional sealing
- Full-bore through-conduit flow for minimal pressure drop
- Low-fugitive-emission packing and gasket sets available
Options
- NACE MR0175 compliance
- Bevel gear operator
- Actuation-ready ISO mounting pads
- Thermal relief (DTR) systems
- Double-lead stem for faster run time
Standards & Certifications
- API 600 / API 602 / API 603
- ASME B16.34
- NACE MR0175 (on request)
- Low-fugitive-emission packing available
