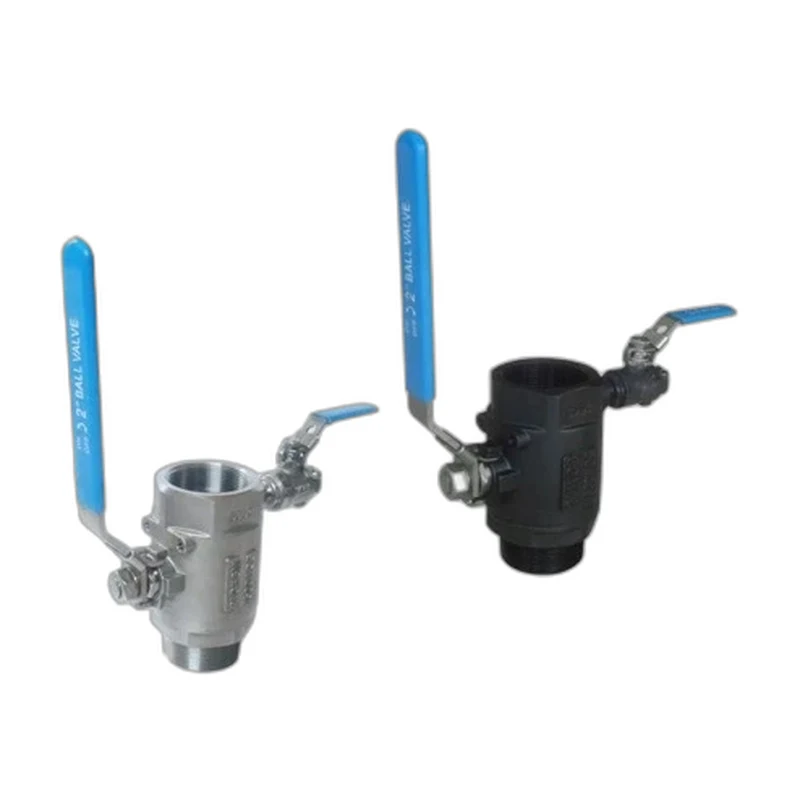

Isolator Floating Male and Female NPT Ball Valves 2000PSI
A floating isolator ball valve with male and female NPT ends rated to 2000 PSI WOG for instrument isolation.
This two piece ZQV ball valve is engineered for high-pressure isolation across a 1", 2", 3" size range, with a maximum allowable operating pressure of 2000 PSI WOG. The ASTM A351 CF8M (stainless) / ASTM A216 WCB (carbon steel) body carries an ASTM A182 F316 stainless steel ball and ASTM A182 F316 stainless steel stem, sealing against Delrin / PEEK seats for reliable, low-torque quarter-turn operation. Male x Female threaded NPT (ASME B1.20.1) connections and a full port / reduced port bore make it well suited to general service, air, water and oil & gas duty.
Specifications
Key Features
- Two Piece body construction
- Quarter-turn lever operation
- Rated to 2000 PSI WOG
- ASTM A182 F316 stainless steel ball with Delrin / PEEK seats
- Male x Female threaded NPT (ASME B1.20.1)
Options
- Full port or reduced port
- Multiple body material options
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110
- Tested to MSS SP-72, API 598
