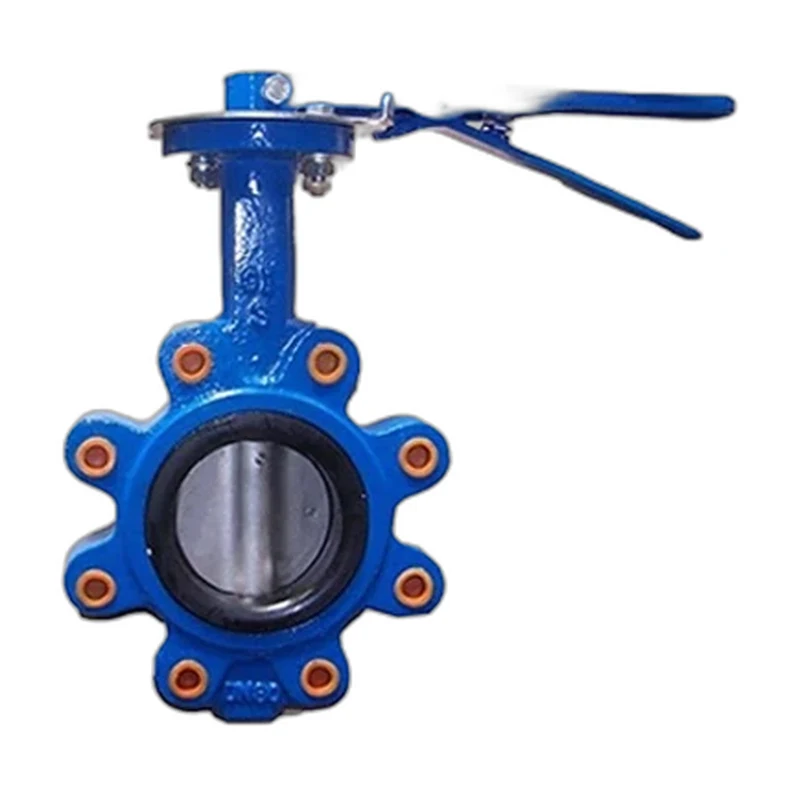

Lug Concentric Butterfly Valve
Lug Concentric Butterfly Valve from ZQV/ZHENGQIU, a quarter-turn butterfly valve for compact, reliable isolation and throttling.
The Lug Concentric Butterfly Valve is a quarter-turn butterfly valve that uses a rotating disc to provide reliable on/off isolation and smooth flow throttling within a compact, lightweight body. It is offered across a size range of 1/4“ to 2”. The body is built from a351 cf8m / a216 wcb for durability in service. A Delrin / Peek seat delivers tight, bubble-tight shut-off, while the a182 f316 disc balances strength with corrosion resistance. With its lug body configuration and lever, gear, electric, pneumatic actuation, it suits demanding pipeline service where space and weight are at a premium.
Specifications
Key Features
- Size range: 1/4“ to 2”
- Pressure rating: 3000 PSI (WOG)
- Quarter-turn operation for fast, reliable shut-off
- Compact, lightweight body saves space and weight
- Delrin / Peek seat for tight sealing
Options
- Manual lever or gear operator
- Electric actuator
- Pneumatic actuator
- Hydraulic actuator
Standards & Certifications
- Design: ASME B16.34 , MSS SP-110
- Testing: MSS-SP72,API 598
- Face-to-face: Manufacturers Standard
