Purple Valves
PRPFL068

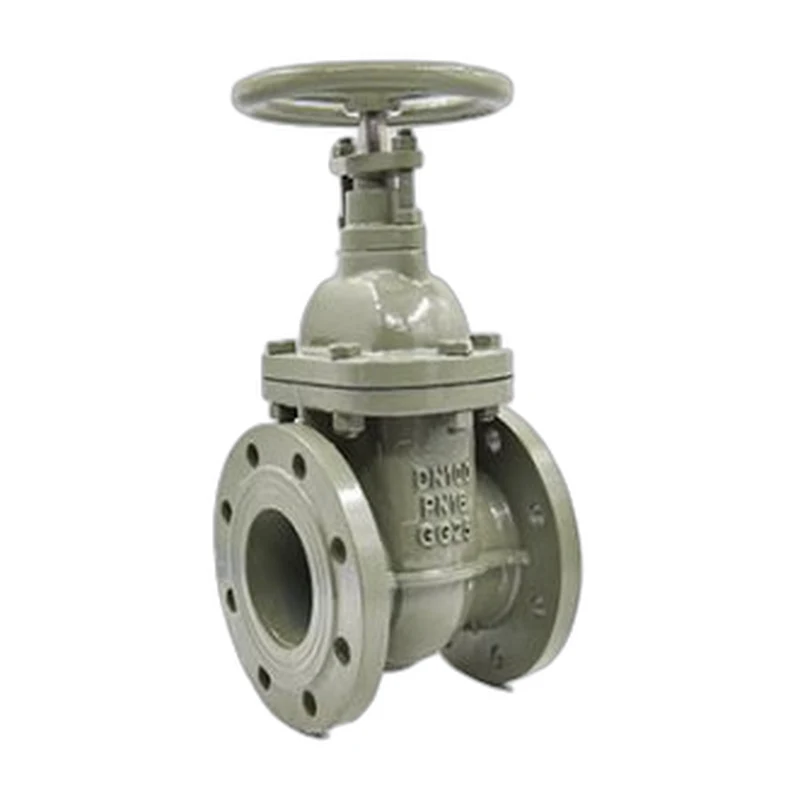

MG01-F4-Nrs DIN3352 F4 PN10/PN16 Non-Rising Stem Metal Seat Gate Valve
A DIN3352 F4 non-rising-stem, metal-seated gate valve in ductile iron for full-bore water isolation.
SizeDN40-DN300PressurePN10/PN16PortFull boreBodyNon-rising stem, solid wedge, bolted bonnet
This non-rising-stem gate valve is built to DIN3352 (EN1171, EN1074) with a short F4 face-to-face dimension, making it a compact full-bore isolation valve for water networks. The solid ductile iron wedge and brass seat rings, pressed into a dovetail groove, give durable metal-to-metal sealing, while the non-rising stem keeps the installed envelope tight. Graphite gland packing and an RAL7023 painted finish suit it to municipal water and general utility duties across DN40 to DN300.
Specifications
Size Range
DN40-DN300
Pressure Rating
PN10/PN16
Temperature Range
Max 150 C
End Connections
Flanged to EN1092-2 PN10/16
Body Material
Ductile iron GGG50
Ball / Disc / Wedge Material
Brass seat and wedge face rings
Seat Material
Brass ZCuZn40Pb2
Stem Material
Stainless steel X20Cr13
Port Type
Full bore
Body Style
Non-rising stem, solid wedge, bolted bonnet
Operation
Manual (handwheel)
Applications
Suited to municipal water distribution, wastewater and general utility isolation where a compact full-bore gate valve is required.
Design Standard
DIN3352 / EN1171 / EN1074-1&2
Testing Standard
EN12266 / ISO5208
Face to Face Standard
DIN3202 F4 / EN558-1 Series 14
Key Features
- Non-rising stem
- Solid ductile iron wedge
- Brass seat rings in dovetail groove
- Bolted bonnet
- Graphite gland packing
- RAL7023 painted finish
