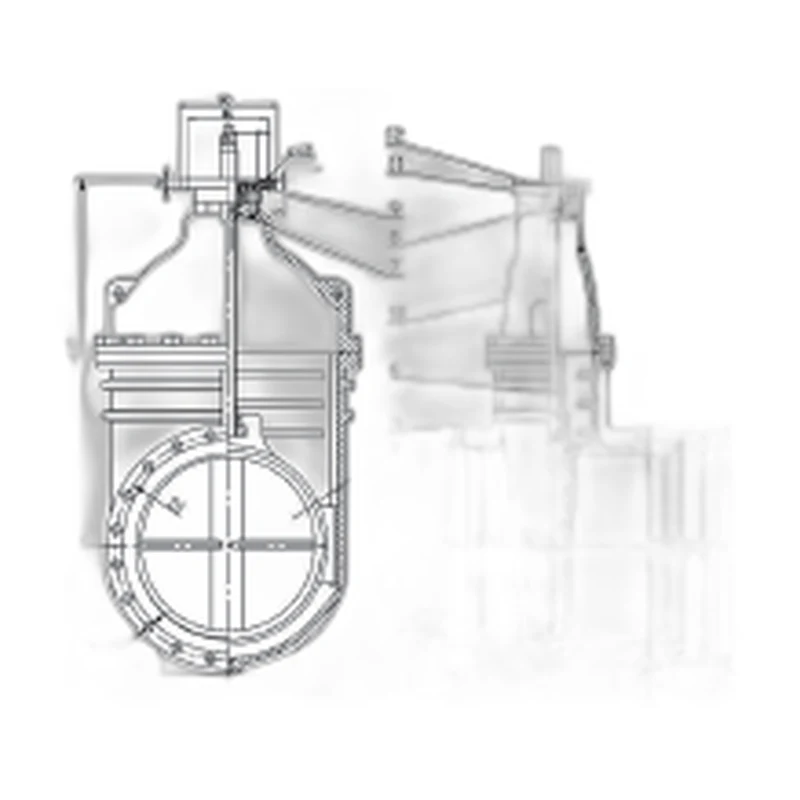

MG03 DIN3352 F4/F5 Non-Rising Stem Metal Seat Gate Valve DN350-DN1200
A large-diameter DIN3352 non-rising stem metal-seat gate valve for DN350 to DN1200 water transmission mains.
SizeDN350-DN1200PortFull boreBodyNon-rising stem gate
The MG03 is a large-bore gate valve built to DIN3352 F4/F5 face-to-face dimensions for water transmission and distribution mains in the DN350 to DN1200 range. Its non-rising stem keeps the overall height compact and protects the thread from the medium, while the metal-seated wedge gives durable, full-bore isolation suited to high-flow networks. The robust ductile iron construction and protective coating make it well matched to buried and above-ground water infrastructure.
Specifications
Size Range
DN350-DN1200
End Connections
Flanged
Body Material
Ductile iron
Seat Material
Metal seated
Port Type
Full bore
Body Style
Non-rising stem gate
Operation
Manual (handwheel) or gear
Applications
Large-diameter water transmission and distribution mains, pumping stations, and bulk water networks.
Design Standard
DIN3352
Face to Face Standard
DIN3202 F4/F5
Key Features
- Non-rising stem
- Metal seated wedge
- Large diameters DN350-DN1200
- Full-bore isolation
