Purple Valves
PRPFL070

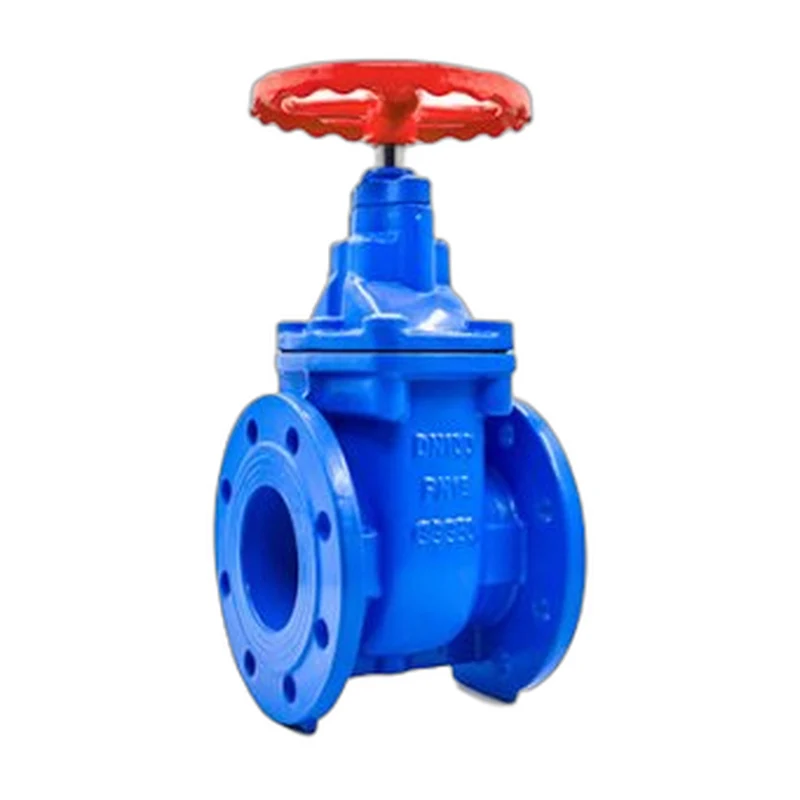

MG05-BS5163-Nrs BS5163 PN10/PN16 Non-Rising Stem Metal Seat Gate Valve
A BS5163 non-rising-stem, metal-seated gate valve in ductile iron with welded seat sealing for water mains.
SizeDN50-DN600PressurePN10/PN16PortFull boreBodyNon-rising stem, solid wedge, bolted bonnet
This non-rising-stem gate valve is built to BS5163 with a solid wedge and welded seat-and-wedge sealing for durable metal-to-metal shut-off on water mains. The ductile iron body carries brass seat rings, a stainless steel stem and an EPDM body gasket, and is finished in a heavy FBE coating (minimum 250 microns) to RAL7004 for long buried or exposed service life. Covering DN50 to DN600, it is a dependable isolation valve for municipal water and distribution networks.
Specifications
Size Range
DN50-DN600
Pressure Rating
PN10/PN16
Temperature Range
Max 150 C
End Connections
Flanged to EN1092-2 PN10/16
Body Material
Ductile iron GGG50
Ball / Disc / Wedge Material
Brass seat rings, DI+brass wedge
Seat Material
Brass (welded)
Stem Material
Stainless steel SS420
Port Type
Full bore
Body Style
Non-rising stem, solid wedge, bolted bonnet
Operation
Manual (handwheel)
Applications
Suited to municipal water mains, distribution networks and general utility isolation requiring durable buried-service gate valves.
Design Standard
BS5163
Testing Standard
ISO5208
Face to Face Standard
BS5163
Key Features
- Non-rising stem
- Solid wedge with welded seat sealing
- Brass seat rings
- Stainless steel stem
- RAL7004 FBE coating min 250um
- DN50-DN600 range
