Purple Valves
PRPLZ003

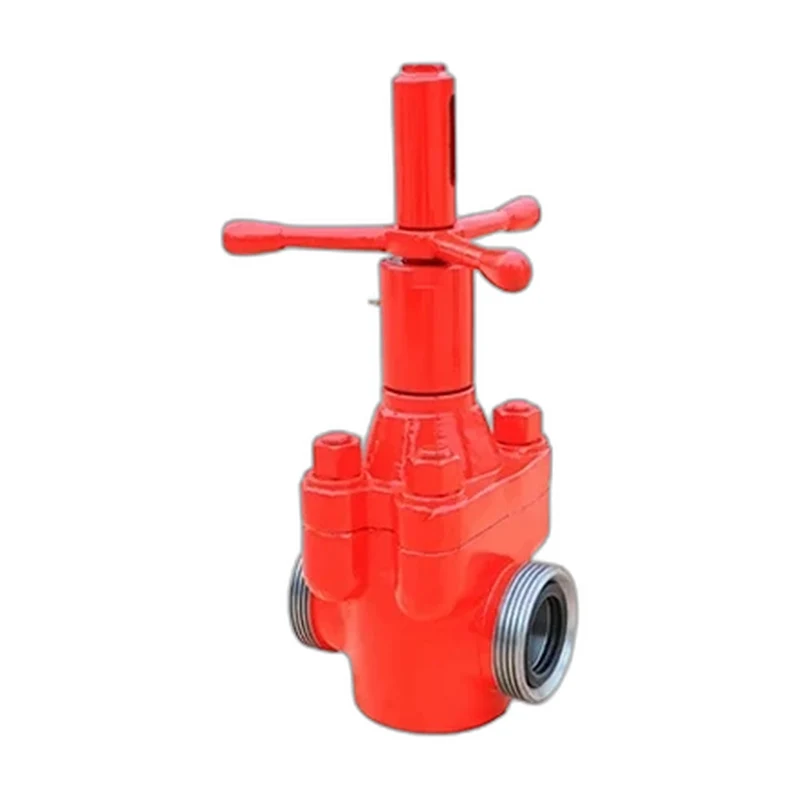

Mud Gate Valve

An API 6A mud gate valve providing full-bore on/off isolation of abrasive drilling mud under high pressure.

Size1/4" to 2"Pressure2000 / 3000 / 5000 PSI rated working pressurePortFull boreBodyExpanding gate, full bore
Request a QuoteFull Product Brochure (PDF)
CategoriesAPI 6A ValvesGate ValvesSlab Gate Valves
Overview

Engineered for drilling-mud and slurry service, this API 6A mud gate valve delivers tight, full-bore isolation in the harsh, abrasive conditions of wellhead and mud-handling systems. The gate mechanism offers a clear, unobstructed flow path that minimises turbulence and wear, while hardened sealing surfaces resist the erosive action of solids-laden fluids. Manufactured to API Spec 6A, it gives operators reliable shut-off and long service life in high-pressure oil and gas drilling and production applications.

Technical Detail

Specifications

Size Range
1/4" to 2"
Pressure Rating
2000 / 3000 / 5000 PSI rated working pressure
Temperature Range
-46C to 232C (-50F to 450F); API 6A temperature classification available
End Connections
Flanged API 6B / 6BX; threaded NPT (API 6A end and outlet connections)
Body Material
A216 WCB / A351 CF8M (AISI 4130 / 4140 alloy steel for sour service available)
Ball / Disc / Wedge Material
Hardfaced expanding gate and seats
Seat Material
Hardfaced / tungsten carbide
Stem Material
A182 F6a / A182 F316 (alloy stem, hardfaced)
Port Type
Full bore
Body Style
Expanding gate, full bore
Operation
Manual handwheel (gear/actuator optional)
Applications
Drilling mud isolation, mud manifolds, slurry lines, oil & gas drilling and production
Design Standard
API 6A
Testing Standard
API 6A (API 598 hydrostatic test procedures)
At a Glance

Key Features

  • Full-bore expanding gate for unobstructed flow
  • Hardfaced seats for abrasive mud service
  • Mechanical seal energising for bi-directional tight shut-off
  • API Spec 6A construction for high-pressure duty

Options

  • Gear or actuator operation
  • Hardfaced or tungsten carbide trim upgrades

Standards & Certifications

  • API 6A
  • API Spec 6A monogram available
  • PSL 1-3 / PR1-PR2 on request
