Purple Valves
PRPLZ288

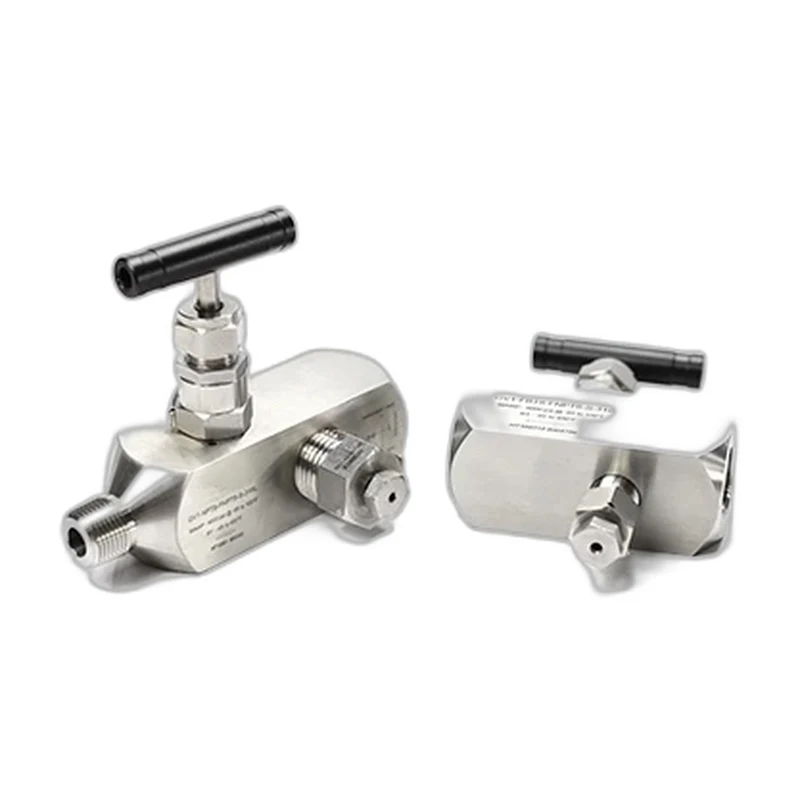

Multiport Gauge Valve
A multiport gauge valve combining gauge isolation, a vent and a test connection in one needle-trimmed block.
Size1/4" to 2"Pressure3000 PSI (WOG)PortMultiportBodyMultiport gauge block
The multiport gauge valve gathers gauge isolation, venting and a calibration/test connection into a single needle-trimmed body, replacing a cluster of fittings at the gauge root. A tapered needle seats into a small integral seat for fine flow regulation and tight isolation, letting a technician isolate, bleed and check a pressure gauge without disturbing the process line. The consolidated multiport block shortens the hook-up, removes leak paths and speeds gauge replacement and recalibration.
Specifications
Size Range
1/4" to 2"
Pressure Rating
3000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1)
Body Material
316 Stainless Steel (A351 CF8M)
Ball / Disc / Wedge Material
Hardened 316 Stainless Steel tapered needle
Seat Material
Metal-to-metal (integral)
Stem Material
316 Stainless Steel (A182 F316)
Port Type
Multiport
Body Style
Multiport gauge block
Operation
Handwheel
Applications
Pressure-gauge isolation, venting and calibration on a single multiport block.
Design Standard
ASME B16.34
Testing Standard
API 598 / MSS SP-99
Key Features
- Gauge isolation, vent and test in one block
- Tapered needle and small seat for fine control
- Fewer fittings and fewer leak paths
- Non-rotating tip protects the seat
- Simplifies gauge change-out and calibration
Options
- Vent or test port options
- Bar or T handle
- Panel mounting
- Oxygen-clean preparation
Standards & Certifications
- ASME B16.34
- API 598
- MSS SP-99
