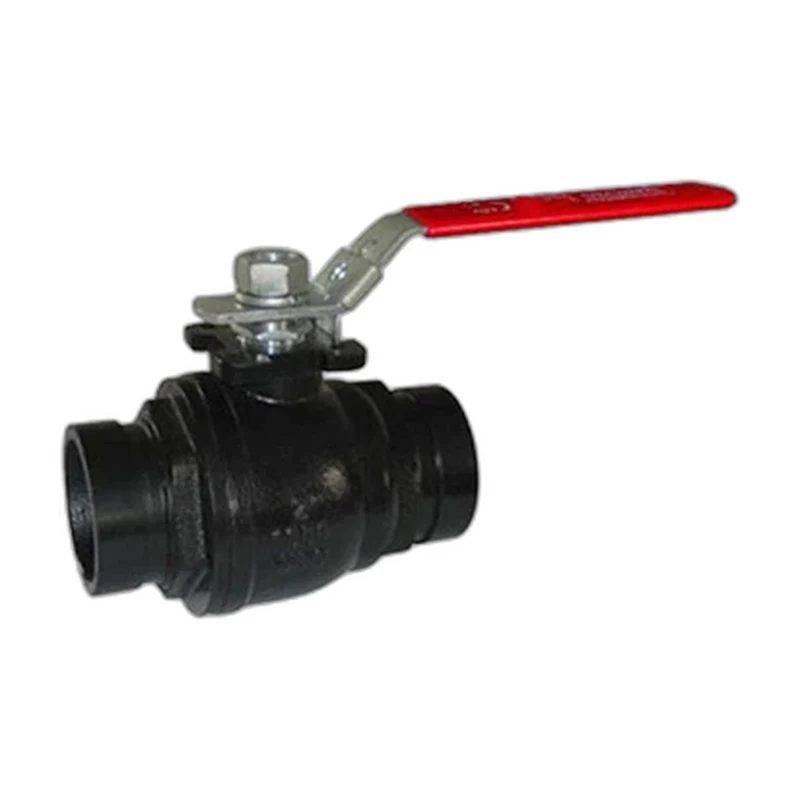

Oil Field Ball Valve Grooved End
Two-piece ductile iron a395 floating ball valve rated 8000 PSI (WOG) - 1000 PSI(WOG) for oilfield isolation service in 2",3",4",6" threaded sizes.
The Oil Field Ball Valve Grooved End is a rugged two-piece floating ball valve engineered for hydrocarbon isolation duty on wellheads, oil-patch manifolds and oilfield production lines. Machined from Ductile iron A395 /A351 CF8M with a ss316 stainless steel ball and ss316 stainless steel stem, the valve seals against RPTFE seats to deliver tight bubble-tight shut-off across a working range of 8000 PSI (WOG) - 1000 PSI(WOG). Available in 2",3",4",6" sizes with grooved end end connections and full port/ reduced port bore options, it offers the corrosion resistance and pressure containment demanded by upstream oil and gas service, with a temperature capability of -46°C to 232°C (-50°F to 450°F). Designed to ASME B16.34, MSS SP-110, API 6D, API 608 and tested to MSS-SP72, API 598, it provides dependable, low-torque on/off control for crude, produced water, gas and general field media.
Specifications
Key Features
- Two-piece floating ball design for reliable bubble-tight shut-off
- Ductile iron A395 /A351 CF8M body built for oilfield pressure containment
- SS316 STAINLESS STEEL ball and SS316 STAINLESS STEEL stem for wear and corrosion resistance
- RPTFE seats suited to crude, gas and produced-water service
- grooved end connections for direct field tie-in
- Working pressure up to 8000 PSI (WOG) - 1000 PSI(WOG)
Options
- Full port or reduced port bore
- Threaded NPT or API 5B LP / EUE end connections
- Lever or gear operation
- Locking handle device
Standards & Certifications
- ASME B16.34, MSS SP-110, API 6D, API 608
- MSS-SP72, API 598
Dimensions
| No | Part | Matarial |
| 1 | BODY | ASTM A395 |
| 2 | BODY SEAL | VITON |
| 3 | BOONET | ASTM A395 |
| 4 | SEATS | PTFE+15%GF/DELRIN |
| 5 | BALL | ASTM A182 F316 |
| 6 | STEM | ASTM A276 316 |
| 7 | STEM BEARING | PTFE |
| 8 | STEM SEAL | VITON |
| 9 | STEM SEAL | VITON |
| 10 | THRUST BEARING | PTFE |
| 11 | STOP PLATE | CS+Ni |
| 12 | RETAINER RING | SPRING STEEL |
| 13 | PIN WITH CHAIN | STAINLESS STEEL |
| 14 | BOLTS | CARBON STEEL |
| 15 | SCREW | SPRING STEEL |
| 16 | GREASE ZERK | CARBON STEEL |
| 17 | HANDLE | DUCTILE IRON |
| Size | Pressure | L | D | C | d | L1 | L2 | H | Lo | Weight (Lbs) | Torque (in.Lb) |
| 2” | 1500PSI | 5.51 | 2.375 | 2.25 | 1.5 | 0.31 | 0.63 | 5.59 | 8.5 | 9.46 | 710 |
| 3” | 1500PSI | 6.73 | 3.5 | 3.344 | 2 | 0.31 | 0.63 | 5.51 | 10 | 17.2 | 945 |
| 4” | 1500PSI | 8.27 | 4.5 | 4.334 | 3 | 0.37 | 0.63 | 6.83 | 13.5 | 35.94 | 2155 |
| 6” | 1500PSI | 10.12 | 6.625 | 6.455 | 5 | 0.37 | 0.63 | 10.13 | 39.4 | 95.39 | 4425 |
