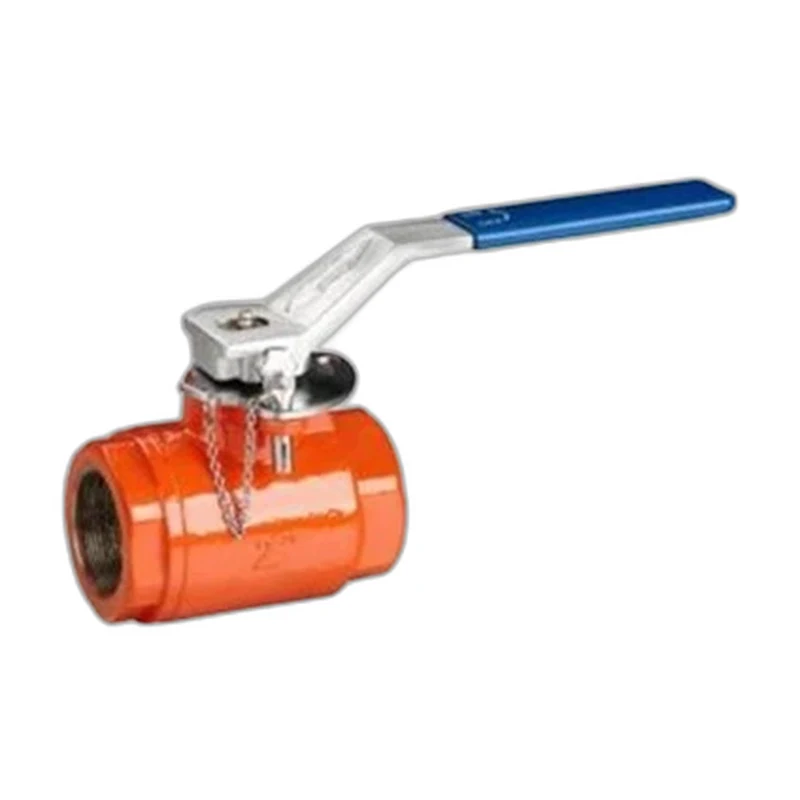

Oil Field Carbon Steel Ball Valve FP
Two-piece wcb a105 floating ball valve rated 3000 PSI (WOG) - 5000 PSI(WOG) for oilfield isolation service in 1" to 4" threaded sizes.
The Oil Field Carbon Steel Ball Valve Fp is a rugged two-piece floating ball valve engineered for hydrocarbon isolation duty on wellheads, oil-patch manifolds and oilfield production lines. Machined from WCB A105 / 4130 with a 400 series stainless steel ball and 400 series stainless steel stem, the valve seals against Delrin / Peek seats to deliver tight bubble-tight shut-off across a working range of 3000 PSI (WOG) - 5000 PSI(WOG). Available in 1" to 4" sizes with Threaded ASME B1.20.1 NPT / API 5B LP end connections and full port/ reduced port bore options, it offers the corrosion resistance and pressure containment demanded by upstream oil and gas service, with a temperature capability of -46°C to 232°C (-50°F to 450°F). Designed to ASME B16.34, MSS SP-110, API 6D, API 608 and tested to MSS-SP72, API 598, it provides dependable, low-torque on/off control for crude, produced water, gas and general field media.
Specifications
Key Features
- Two-piece floating ball design for reliable bubble-tight shut-off
- WCB A105 / 4130 body built for oilfield pressure containment
- 400 SERIES STAINLESS STEEL ball and 400 SERIES STAINLESS STEEL stem for wear and corrosion resistance
- Delrin / Peek seats suited to crude, gas and produced-water service
- Threaded ASME B1.20.1 NPT / API 5B LP connections for direct field tie-in
- Working pressure up to 3000 PSI (WOG) - 5000 PSI(WOG)
Options
- Full port or reduced port bore
- Threaded NPT or API 5B LP / EUE end connections
- Lever or gear operation
- Locking handle device
Standards & Certifications
- ASME B16.34, MSS SP-110, API 6D, API 608
- MSS-SP72, API 598
Dimensions
| No | Part | Matarial |
| 1 | BODY | ASTM A216 WCB |
| 2 | BODY SEAL | VITON |
| 3 | BOONET | ASTM A216 WCB |
| 4 | SEATS | DELRIN |
| 5 | BALL | SS420, SS304, SS316 |
| 6 | STEM | ASTM A276 420 |
| 7 | THRUST BEARING | PTFE |
| 8 | STEM SEAL | VITON |
| 9 | STEM SEAL | VITON |
| 10 | STEM BEARING | PTFE |
| 11 | STOP PLATE | CS+Ni |
| 12 | PIN WITH CHAIN | STAINLESS STEEL |
| 13 | RETAINER RING | SPRING STEEL |
| 14 | STOP PIN | SPRING STEEL |
| 15 | HEXAGON BOLTS | CARBON STEEL |
| 16 | GREASE ZERK | CARBON STEEL |
| 17 | HANDLE | DUCTILE IRON |
| Size | Port | Pressure | L | H | d | NPT | Lo | Weight (Lbs) | Torque (in.Lb) |
| 1” | FP | 5000PSI | 4.03 | 3.43 | 1 | 11.5 | 6.7 | 4.74 | 1500 |
| 2” | FP | 5000PSI | 6 | 5.51 | 2 | 11.5 | 10 | 18.65 | 2350 |
| 2-1/2” | FP | 5000PSI | 7 | 6.35 | 2.56 | 8 | 15 | 33.07 | 3200 |
| 3” | FP | 5000PSI | 8.72 | 7.39 | 3 | 8 | 20 | 54.65 | 4100 |
| 4” | FP | 5000PSI | 9.37 | 9.76 | 3.94 | 8 | 31.5 | 83.22 | 8100 |
