Purple Valves
PRPLZ205

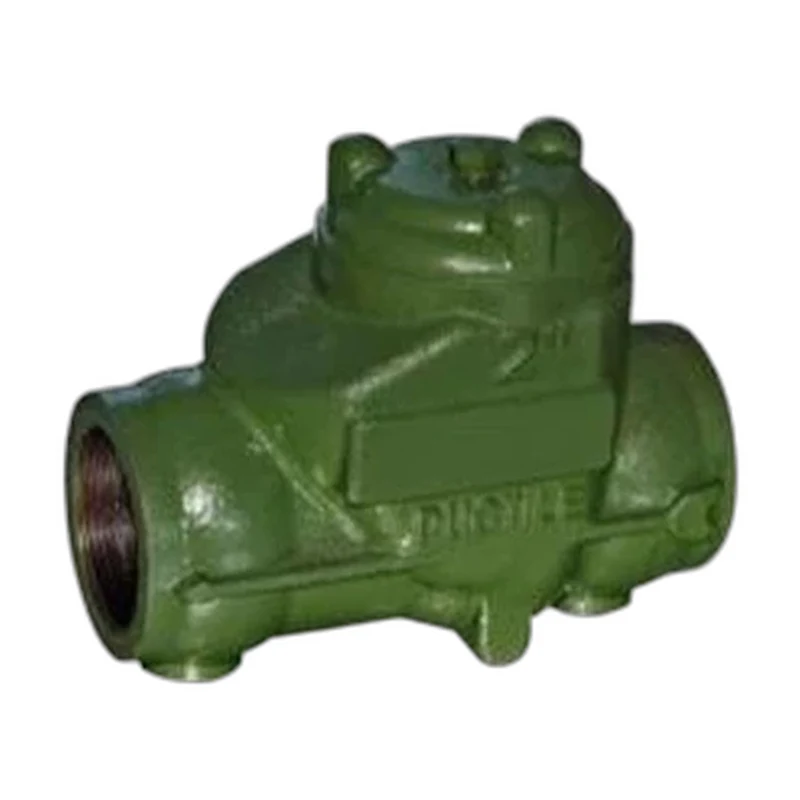

Oil Field Ductile Iron Check Valve
An oilfield oil field ductile iron check valve for non-return / backflow prevention in oil and gas and high pressure service.
Size1/4“ to 2”Pressure3000 PSI (WOG)PortFull PortBodyTwo Piece
The OIL FIELD DUCTILE IRON CHECK VALVE is a non-return check valve for oilfield and high pressure service, allowing flow in one direction and closing automatically to prevent backflow. Built for oil and gas, oilfield and general high pressure duties, it offers reliable sealing across its rated size and pressure range.
Specifications
Size Range
1/4“ to 2”
Pressure Rating
3000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
A182 F316
Seat Material
Delrin / Peek
Port Type
Full Port
Body Style
Two Piece
Operation
Automatic (non-return)
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34 , MSS SP-110
Testing Standard
MSS-SP72,API 598
Face to Face Standard
Manufacturers Standard
Key Features
- Automatic non-return / backflow prevention
- Oilfield & high pressure service
- Forged or cast body
Standards & Certifications
- API 6D
- API 598
Dimensions
| No. | Part Name | Material |
| 1 | Body | ASTM A395 |
| 2 | Disc | ASTM A351 CF8 |
| 3 | Seat | VITON |
| 4 | Bonnet | ASTM A395 |
| 5 | Gasket | VITON |
| 6 | Plug | ASTM A105 |
| Size | Port | End | Pressure | L | H | d | NPT | Weight(lbs) |
| 1″ | FB | FNPT | 300~2000 | 4.72 | 3.28 | 1.00 | 11.5NPT | 5.86 |
| 2″ | FB | FNPT | 300~2000 | 6.30 | 4.09 | 2.00 | 11.5NPT | 12.13 |
| 2″ | FB | FNPT | 300~2000 | 7.25 | 4.09 | 2.00 | 11.5NPT | 15.34 |
| 2-1/2″ | FB | FNPT | 300~2000 | 8.00 | 4.90 | 2.52 | 8NPT | 19.82 |
| 3″ | FB | FNPT | 300~2000 | 8.25 | 5.43 | 3.00 | 8NPT | 22.49 |
| 4″ | FB | FNPT | 300~1000 | 10.00 | 6.26 | 3.94 | 8NPT | 35.80 |
| 4″ | FB | FNPT | 300~2000 | 10.00 | 7.80 | 3.98 | 8NPT | 57.76 |
