Purple Valves
PRPLZ133

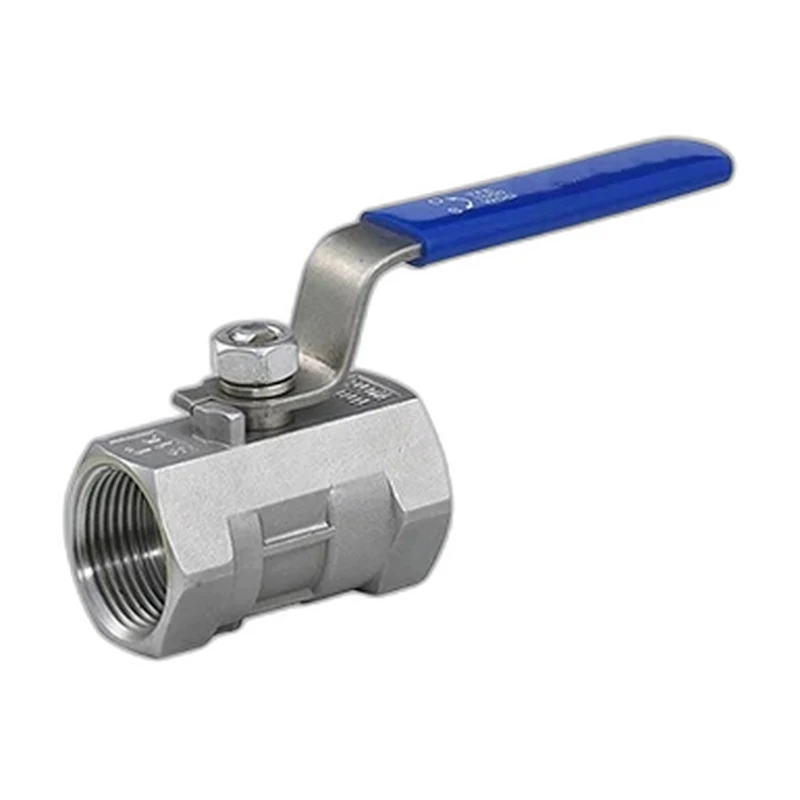

One Piece Ball Valve
A compact one-piece ball valve in stainless steel with a reduced-port bore, rated to 3000 PSI WOG.
Size1/4" to 4"Pressure3000 PSI (WOG)PortReduced PortBodyOne Piece
The single-piece body of this stainless steel ball valve gives a strong, leak-resistant design with minimal joints, well suited to high-pressure isolation up to 3000 PSI WOG. Its reduced-port bore and NPT threaded ends cover the 1/4" to 4" range, and RPTFE seats deliver a dependable seal. It is a compact, robust choice for general air, water, oil and gas duties.
Specifications
Size Range
1/4" to 4"
Pressure Rating
3000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
SS316
Seat Material
RPTFE
Stem Material
SS316
Port Type
Reduced Port
Body Style
One Piece
Operation
Lever, Gearbox
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34 , MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Reliable bubble-tight shut-off
- One Piece body construction
- Reduced Port bore
- Blow-out proof stem with anti-static device
- Fire-safe and corrosion-resistant materials
Options
- Range of seat materials (RPTFE, PTFE, PEEK, Delrin)
- Lever, gearbox, pneumatic or electric actuation
- Locking handle and stem extensions
- Oxygen-cleaned and special-service preparation
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598 Tested
