Purple Valves
PRPLZ011

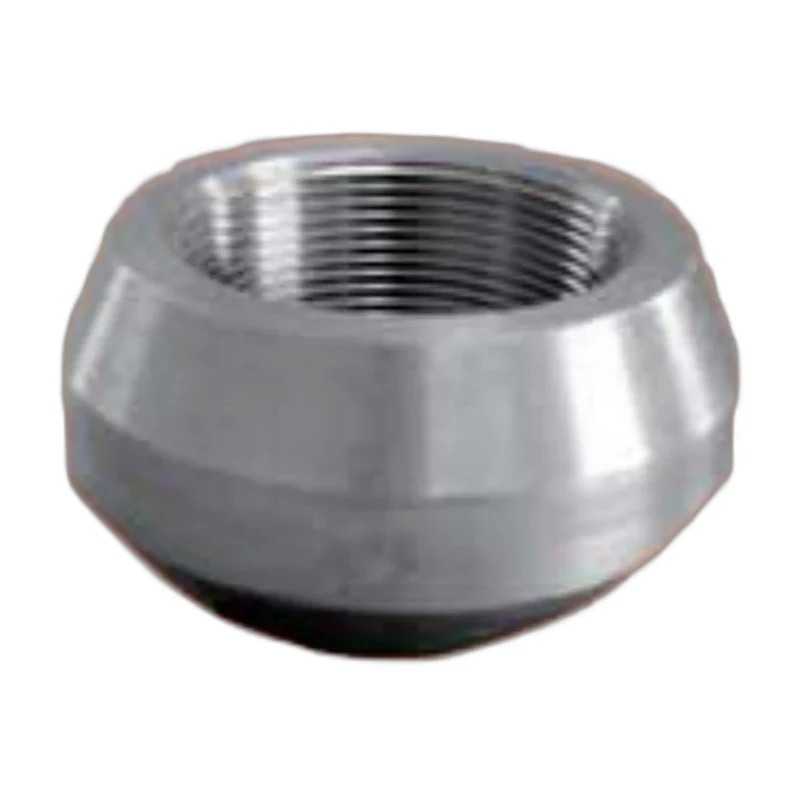

Outlet
Forged steel branch outlet for welded branch connections on run pipe.
Size1/8" to 4"PressureClass 2000, 3000 and 6000 LB
The Purple Valves forged steel outlet provides a reinforced branch connection welded directly onto run pipe, accepting a threaded or socket weld branch to ASME B16.11. Forged from A105 carbon steel in Class 2000, 3000 and 6000 LB, it eliminates the need for a tee where a smaller branch is taken from a larger header.
Specifications
Size Range
1/8" to 4"
Pressure Rating
Class 2000, 3000 and 6000 LB
End Connections
Threaded (NPT) and socket weld to ASME B16.11
Body Material
Forged carbon steel A105 (stainless steel available on request)
Applications
Oil and gas, petrochemical, industrial processing, power generation, water and utility pipework
Design Standard
ASME B16.11
Key Features
- Forged A105 carbon steel construction
- Class 2000, 3000 and 6000 LB ratings
- Contoured base welds to run pipe
- Threaded or socket weld branch connection
- Sizes 1/8" to 4"
Standards & Certifications
- ASME B16.11, MSS-SP-83
