Purple Valves
PRPFL003

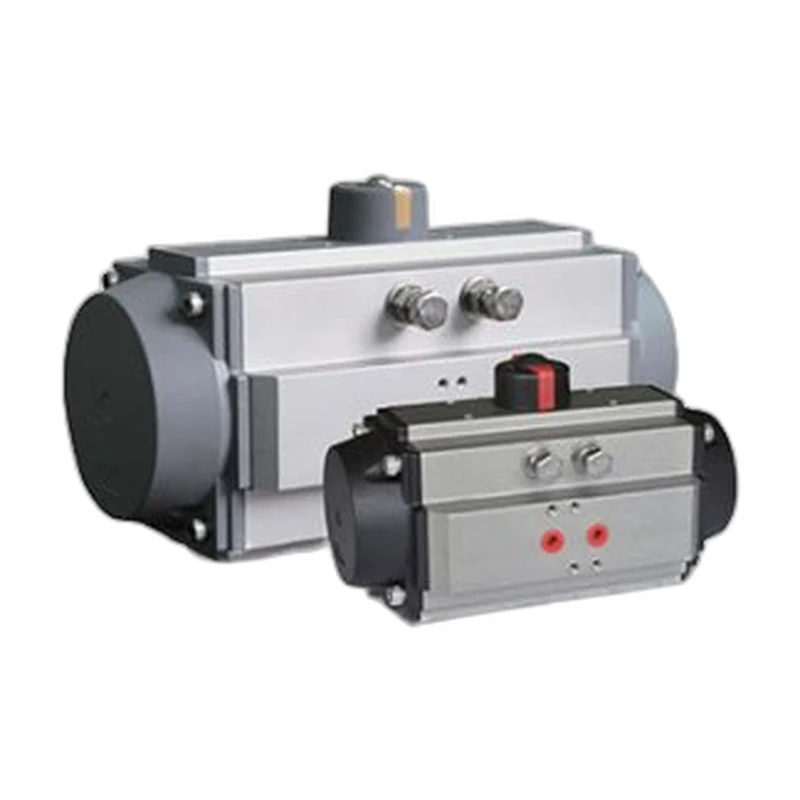

P54-5 AT Series Pneumatic Actuator
An AT series rack-and-pinion pneumatic actuator that converts compressed air into reliable quarter-turn valve motion.
BodyRack-and-pinion pneumatic actuator
The P54-5 AT series pneumatic actuator uses pressurised air as its power source, converting it into rotary mechanical motion to open and close quarter-turn valves automatically. Its compact rack-and-pinion design delivers consistent torque for ball and butterfly valves and integrates readily into automated process control systems. Available in double-acting and spring-return configurations, the actuator provides fast, dependable operation and fail-safe positioning where required.
Specifications
End Connections
Valve-mounted (ISO5211)
Body Style
Rack-and-pinion pneumatic actuator
Operation
Pneumatic (compressed air)
Applications
Automated control of ball and butterfly valves in water, fire-fighting and oil and gas process systems.
Key Features
- Compressed-air powered
- Rack-and-pinion quarter-turn output
- Double-acting or spring-return
- Compact, automation-ready design
Options
- Double-acting
- Spring-return
